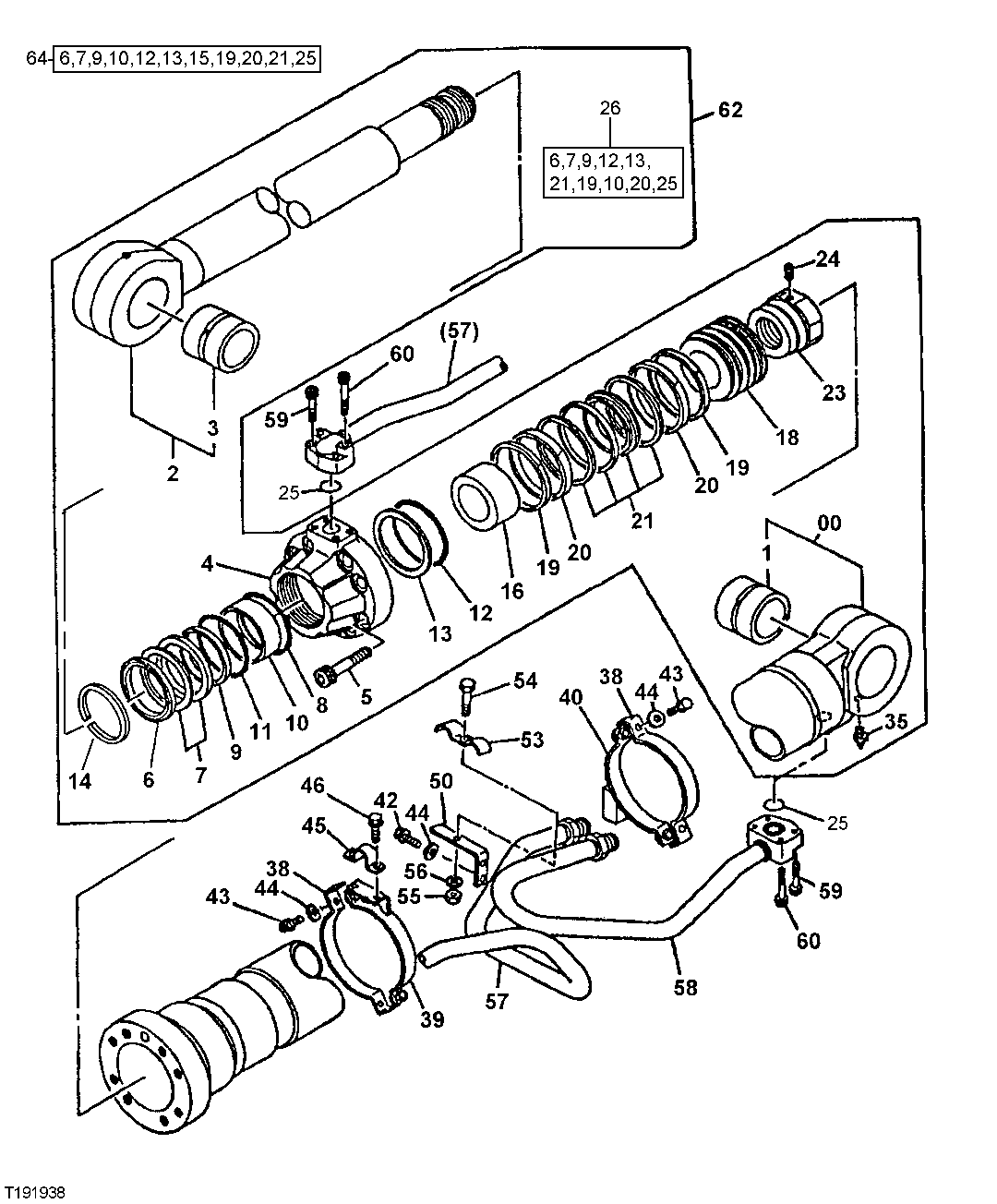

Запчасти John Deere 92DLC 247 - CYLINDER BOOM (LEFT) 3365 Hydraulic Cylinders

0

9121229

Hydraulic Cylinder Barrel

(SUB FOR TH111713)

1шт.

1

3036658

Bushing

(SUB FOR TH111166)

1шт.

2

7017179

Rod

(SUB FOR TH111559)

1шт.

3

3036658

Bushing

(SUB FOR TH111166)

1шт.

4

1022643

Hydraulic Cylinder Cap

(SUB FOR AT131252, ALONG WITH A T264274, AT264277 AND 4369509)

1шт.

5

19M8630

Screw

M24 X 80 (SUB FOR TH111067)

8шт.

6

TH110048

Seal

(A) (CYLINDER SERIAL NUMBER)

1шт.

AT264277

Seal

(B) (SUB FOR AT181247, 4348 207)(CYLINDER SERIAL NUMBER)

1шт.

7

AT264398

Seal

(A) (B) (SUB FOR TH110049)

1шт.

8

4267139

Snap Ring

(SUB FOR AT130817)

1шт.

9

AT264279

Ring

(A) (B) (SUB FOR TH111205, AT181790)

1шт.

10

AT264237

Bushing

(A) (B) (SUB FOR TH111270, AT131414)

1шт.

11

4131276

O-Ring

(SUB FOR TH111204)

1шт.

12

TH110052

O-Ring

(A) (CYLINDER SERIAL NUMBER)

1шт.

AT264274

O-Ring

(A) (B) (SUB FOR AT159582, 4 267138)(CYLINDER SERIAL NUMBER)

1шт.

13

AT264399

Back-Up Ring

(A) (B) (SUB FOR TH11005 5)(CYLINDER SERIAL NUMBER)

1шт.

14

4369509

Ring

RETAINING (SUB FOR AT18124 8 (CYLINDER SERIAL NUMBER))

1шт.

15

AT280434

Back-Up Ring

(B) (NOT ILLUSTRATED)

1шт.

16

4194626

Ring

(SUB FOR TH111276)

1шт.

18

3080835

Piston

(SUB FOR TH111164 AND 3036603)

1шт.

19

AT264400

Ring

(A) (B) (SUB FOR TH110062, 4185247)

2шт.

20

AT264401

Wear Ring

(A) (B) (SUB FOR TH110063)

2шт.

21

AT264402

Ring

(A) (B) (SUB FOR TH110065)

1шт.

23

3039348

Nut

(SUB FOR TH111191)

1шт.

24

4201806

Set Screw

(SUB FOR TH110066)

1шт.

25

AT264324

O-Ring

(A) (B) (SUB FOR TH100044)

2шт.

26

AT196475

Seal Kit

(SUB FOR 9078845)(INCLUD ES ALL PARTS MARKED (A))

1шт.
