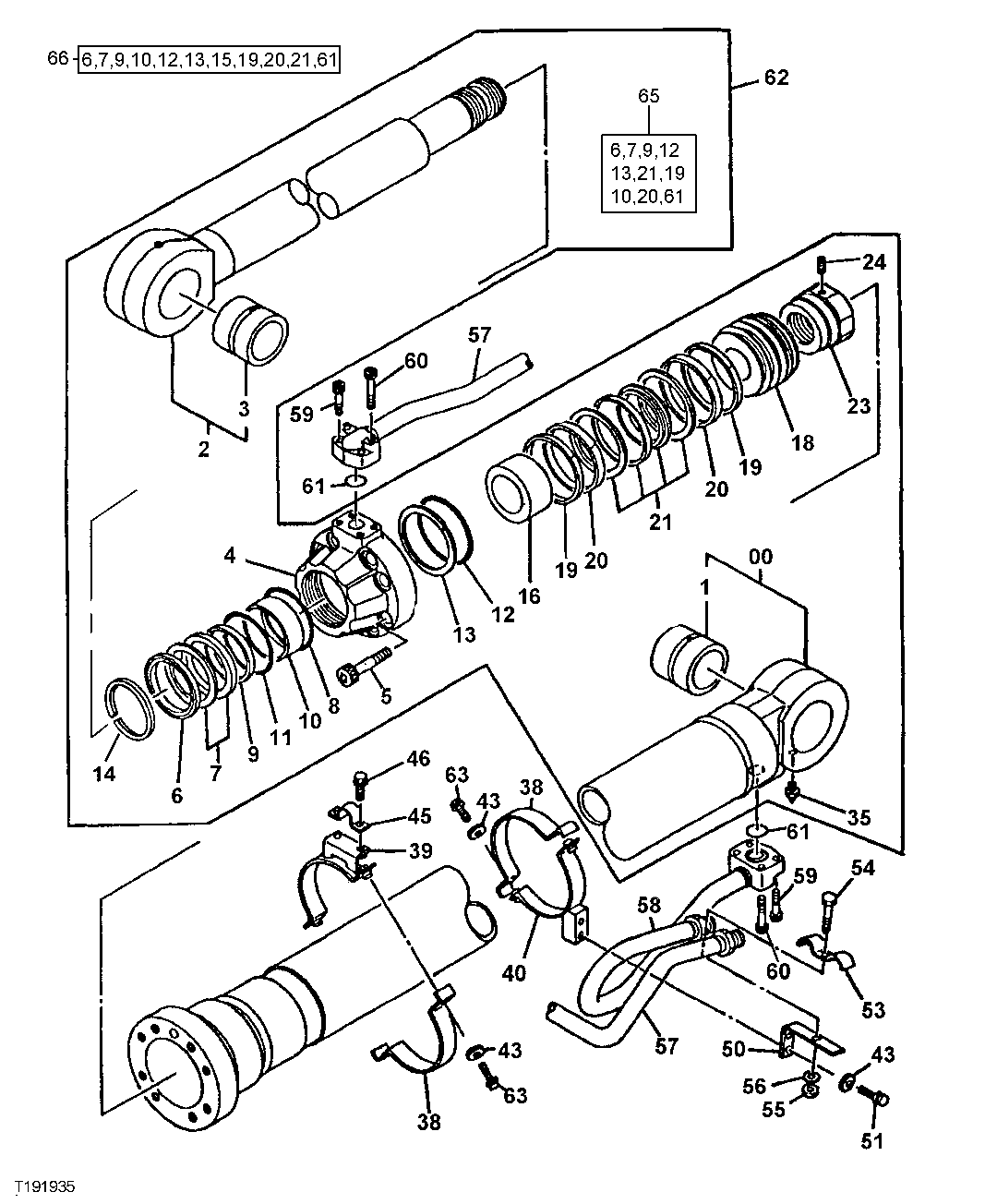

Запчасти John Deere 92DLC 246 - Right Boom Cylinder 3365 Hydraulic Cylinders

50

4195484

Support

(SUB FOR TH111279)

1шт.

51

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

53

4229234

Clamp

(SUB FOR TH111214, TH111990)

1шт.

54

19M8348

Cap Screw

M12 X 65 (SUB FOR 19M8 088, THIS APPLICATION)

1шт.

55

14M7275

Nut

M12

1шт.

56

12H301

Lock Washer

1/2"

1шт.

57

8036936

Oil Line

(SUB FOR TH111474)

1шт.

58

8037794

Oil Line

(SUB FOR TH111495)

1шт.

59

19M8341

Screw

M12 X 45

4шт.

60

19M8444

Screw

M12 X 60

4шт.

61

AT264324

O-Ring

(A) (B) (SUB FOR T32587, TH100044)

2шт.

62

AT264218

Hydraulic Cylinder

(SUB FOR TH111615, AT131413) (INCLUDES KEYS 0 THROUGH 35)

1шт.

63

19M7550

Cap Screw

M10 X 35

4шт.

64

Seal

(ROD AND HEAD END) (NOT ILLUSTRATED OR INCLUDED IN CYLINDER ASSEMBLY - FOR DETA IL SEE BOOM AND ARM HYDRAULIC OIL LINES)

4шт.

65

AT196475

Seal Kit

(SUB FOR 9078845)(INCL UDES PARTS MARKED (A))

1шт.

66

9175562

Hydraulic Cylinder Kit

(SUB FOR 9154894, AT181794 OR AT264 431)(SEAL) (USE ON CYLINDER S.N. 503 425- ) (INCLUDES PARTS MARKED (B))

1шт.
