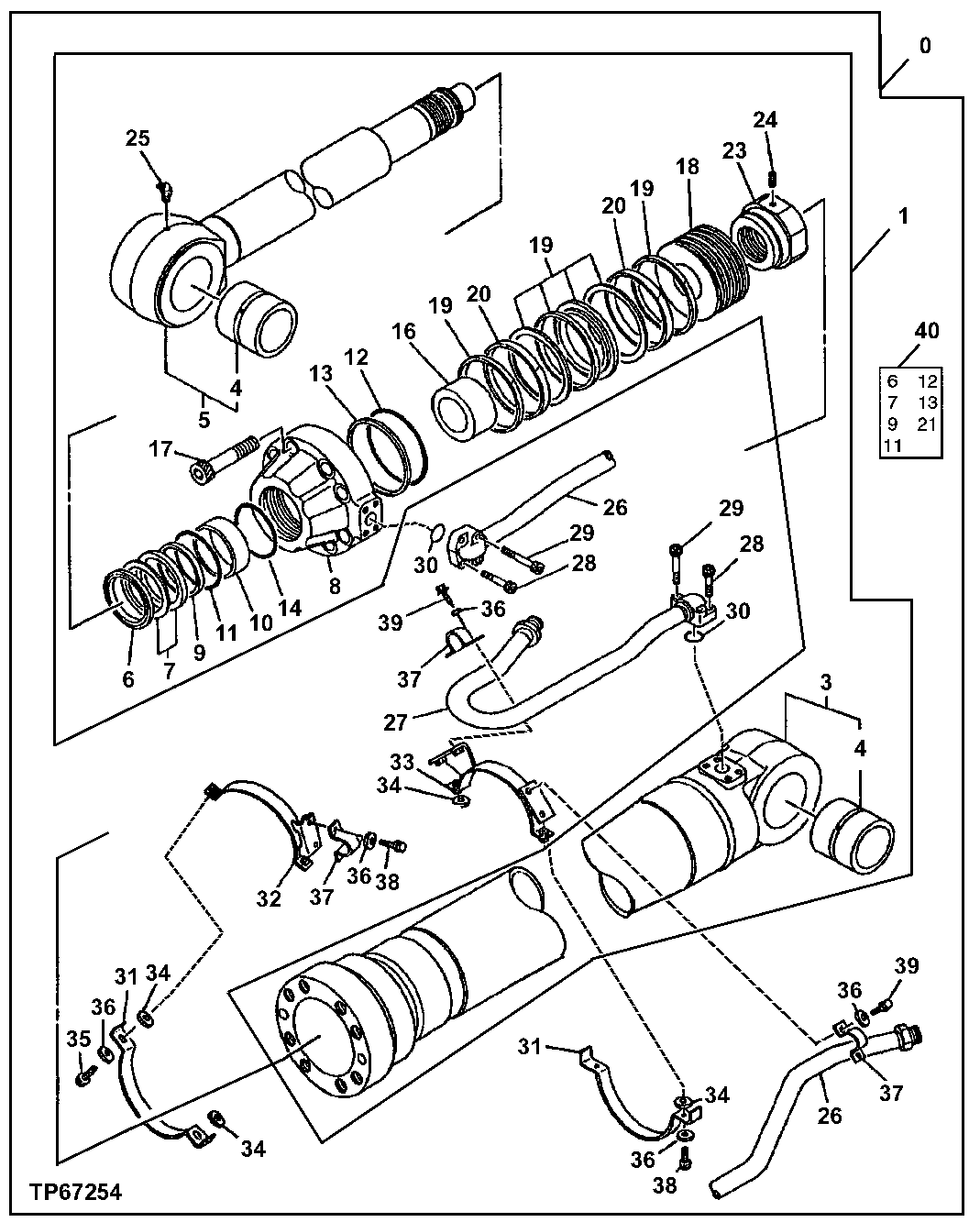

Запчасти John Deere 92DLC 242 - SUPER LONG FRONT ARM CYLINDER 3360 HYDRAULIC SYSTEM

0

Hydraulic Cylinder

( TH111830 NO LONGER AVAILABLE)

1шт.

1

9110534

Cylinder

(SUB FOR TH111831 ) (SUB FOR AT130835)

1шт.

3

7017423

Hydraulic Cylinder Barrel

(SUB FOR TH111857)

1шт.

4

3036656

Bushing

(SUB FOR TH111833)

2шт.

5

7017177

Rod

(SUB FOR TH111858)

1шт.

6

4171483

Seal

(A) (SUB FOR TH111837)

1шт.

7

AT333702

Seal

(A) (ALSO ORDER AT280445 ) (SUB FOR TH111838, 4171485 OR 4411660)

1шт.

8

1015996

Hydraulic Cylinder Cap

(SUB FOR AT130833)(CYLINDER SERIAL N UMBER) (USE WITH 9110534 CYLINDER) (S UB FOR TH111836, ALONG WITH 4268206)

1шт.

9

AT264414

Seal

(A) (SUB FOR TH111839, 4171487 OR 4411655)

1шт.

10

4290509

Bushing

(SUB FOR TH111840 ) (SUB FOR AT159652)

1шт.

11

4169532

O-Ring

(A) (SUB FOR TH111841)

1шт.

12

TH102822

O-Ring

(A)

1шт.

13

4113178

Back-Up Ring

(A) (SUB FOR TH111842)

1шт.

14

4268206

Snap Ring

(SUB FOR AT130834)(USE WITH 9110534 CYLINDER)

1шт.

16

4194627

Ring

(SUB FOR TH111843)

1шт.

17

19M8452

Screw

M24 X 90

8шт.

18

3036602

Piston

(SUB FOR TH111844)

1шт.

19

AT264415

Ring

(SUB FOR TH111845, 4171490)

2шт.

20

AT264416

Wear Ring

(SUB FOR TH111846, 4194622)

2шт.

21

AT264417

Ring

(A) (SUB FOR TH111847, 4386916)

1шт.

23

3039349

Nut

(SUB FOR TH111848)

1шт.

24

4201806

Set Screw

(SUB FOR TH110066)

1шт.

25

T116334

Lubrication Fitting

(SUB FOR TH100075)

1шт.

26

8036931

Oil Line

(SUB FOR TH111849)

1шт.

27

8036930

Oil Line

(SUB FOR TH111850)

1шт.

28

19M8341

Screw

M12 X 45

4шт.

29

19M8444

Screw

M12 X 60

4шт.

30

AT264324

O-Ring

(SUB FOR TH100044)(USE IF AVAILABLE)

2шт.

AT264324

O-Ring

(SUB FOR AT152413, T32587, TH100044)

2шт.

31

8036972

Clamp

(SUB FOR TH111851)

2шт.

32

8039636

Clamp

(SUB FOR TH111852)

1шт.

33

8036974

Clamp

(SUB FOR TH111853)

1шт.

34

4194153

Bushing

(SUB FOR TH110028)

4шт.

35

19M7550

Cap Screw

M10 X 35

4шт.

36

12M7066

Lock Washer

10 mm

10шт.

37

4174241

Clamp

(SUB FOR TH110059)

3шт.

38

19M7938

Cap Screw

M10 X 20

2шт.

39

19M7402

Cap Screw

M10 X 25

4шт.

40

9181752

Seal Kit

(CONTAINS PARTS MARKED (A)) (ALSO ORDER T H111845 AND TH111846 ) (SUB FOR TH111854)

4шт.
