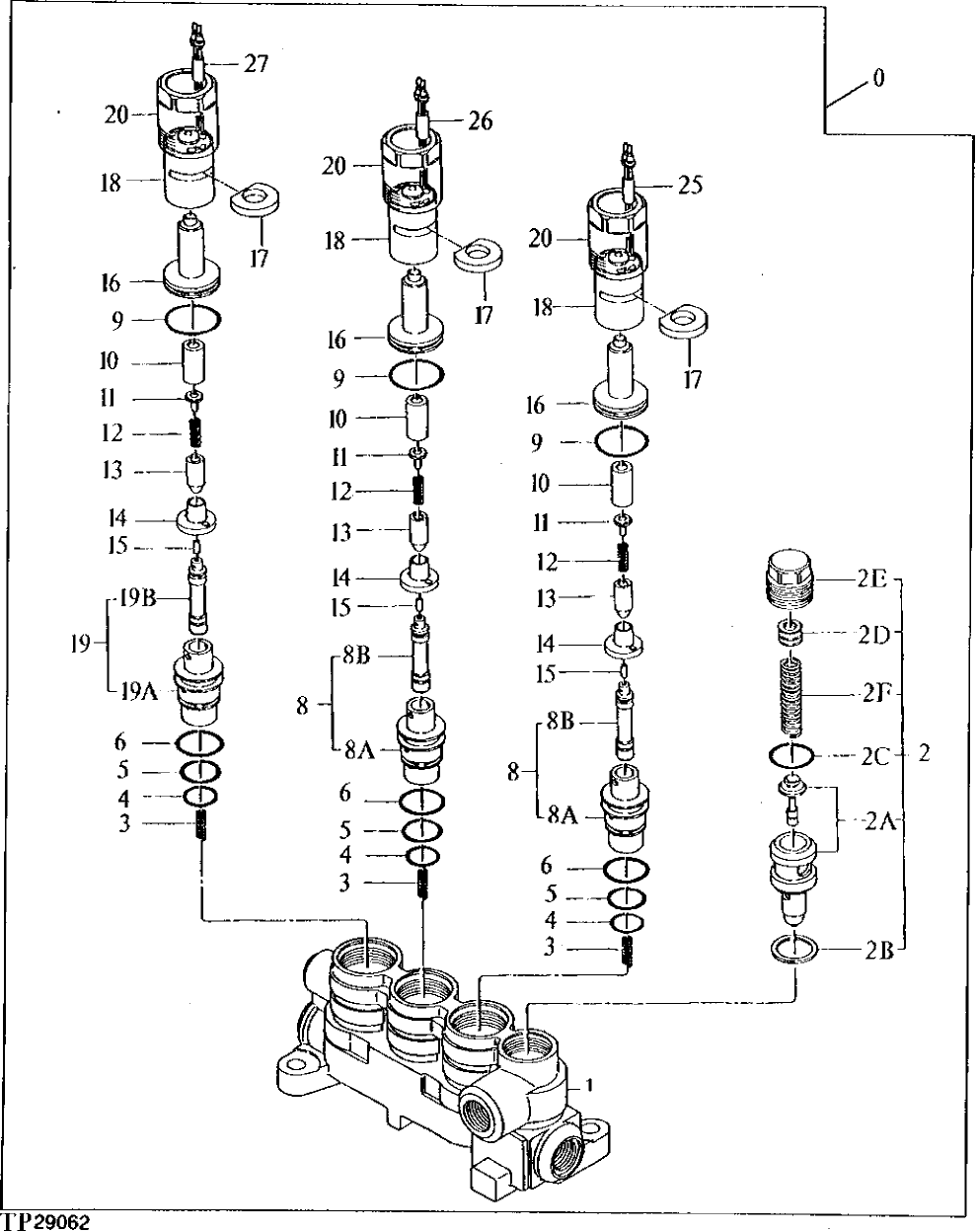

Запчасти John Deere 92DLC 234 - Solenoid Valve 3360 HYDRAULIC SYSTEM

0

4196411

Solenoid Valve

(SUB FOR TH108398)

1шт.

1

Housing

( TH109249 NO LONGER AVAILABLE)

1шт.

2

Relief Valve

( TH109250 NO LONGER AVAILABLE)

1шт.

2A

Relief Valve

( TH109251 NO LONGER AVAILABLE)

1шт.

2B

4487648

Gasket

(SUB FOR TH109252 OR 0308704)

1шт.

2C

4487138

O-Ring

(SUB FOR TH109253 OR 0308705)

1шт.

2D

Shim

(K) (SUB AT146246)( TH10 9254 NO LONGER AVAILABLE)

1шт.

Shim

(K) (SUB AT146246)( TH10 9255 NO LONGER AVAILABLE)

1шт.

Shim

(K) (SUB AT146246)( TH10 9256 NO LONGER AVAILABLE)

1шт.

2E

Plug

( TH109257 NO LONGER AVAILABLE)

1шт.

2F

0308710

Spring

(SUB FOR TH109258)

1шт.

3

0308711

Spring

(SUB FOR TH109259)

3шт.

4

CH11570

O-Ring

3шт.

5

985099

O-Ring

20.800 X 2.400 mm (SUB FOR TH101479)

3шт.

6

AT264333

O-Ring

(SUB FOR TH100096)

3шт.

8

Valve Spool

( TH109260 NO LONGER AVAILABLE)

2шт.

8A

Housing

2шт.

8B

Spool

2шт.

9

0308713

O-Ring

28.500 X 2 mm (SUB FOR TH109261)

3шт.

10

Pipe

( 0308714 NO LONGER AVAI LABLE) (SUB FOR TH109262)

3шт.

4488303

Line

3шт.

11

4488306

Valve Seat

(SUB FOR TH109263, 0308715 OR 4605187)

3шт.

12

4488310

Spring

(SUB FOR TH109264 OR 0308716)

3шт.

13

3096332

Plunger

(SUB FOR TH109265 OR 0308717)

3шт.

14

0308718

Stop

(SUB FOR TH109266)

3шт.

15

0308719

Pin

(SUB FOR TH109267)

3шт.

16

Housing

( TH109268 NO LONGER AVAILABLE)

3шт.

17

4488304

Spacer

(SUB FOR TH109269 OR 0308721)

3шт.

18

0308722

Solenoid

(SUB FOR TH109270)

3шт.

19

Valve Spool

(SUB TH108398)( TH1092 71 NO LONGER AVAILABLE)

1шт.

19A

Housing

(SUB TH108398)

1шт.

19B

Spool

(SUB TH108398)

1шт.

20

0308724

Screw

(SUB FOR TH109272)

3шт.

25

Tape

( TH109273 NO LONGER AVAILABLE) (SUB STAN DARD ELECTRICAL VINYL TAPE CUT TO LENGTH)

1шт.

26

Tape

( TH109274 NO LONGER AVAILABLE) (SUB STAN DARD ELECTRICAL VINYL TAPE CUT TO LENGTH)

1шт.

27

Tape

( TH109275 NO LONGER AVAILABLE) (SUB STAN DARD ELECTRICAL VINYL TAPE CUT TO LENGTH)

1шт.
