229 - Control Valve

Запчасти John Deere 92DLC 229 - Control Valve 3360 HYDRAULIC SYSTEM

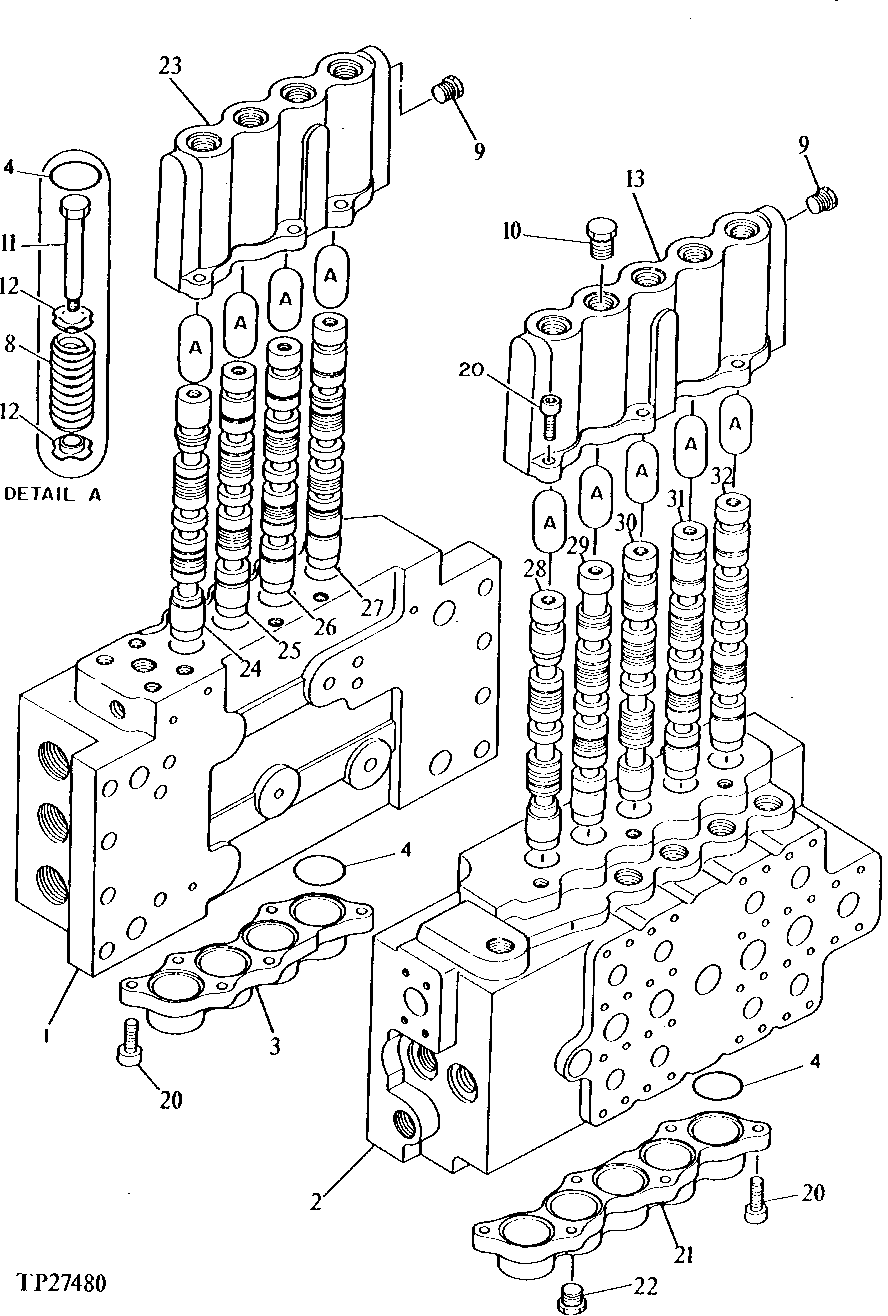

Схема запчастей John Deere 92DLC - 229 - Control Valve 3360 HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Housing

(SUB 4336936)

1шт.

2

Housing

(SUB 4336936)

1шт.

3

0309702

Cap

(SUB FOR TH109965)

1шт.

4

CH14701

O-Ring

18шт.

8

0309705

Spring

(SUB FOR TH109970)

9шт.

9

0309731

Fitting Plug

(SUB FOR TH110002)

2шт.

10

0332914

Drain Plug

(SUB FOR TH110003 ) (SUB FOR TH110315)

1шт.

11

0306005

Screw

(SUB FOR TH109969)

9шт.

12

0306003

Plate

(SUB FOR TH109968)

18шт.

13

0309703

Cap

(SUB FOR TH109966)

1шт.

20

19M8337

Screw

M10 X 30

24шт.

21

0309704

Cap

(SUB FOR TH109967)

1шт.

22

0218607

Pipe Plug

(INCLUDES 4297380, SUB FOR TH109998)

1шт.

4297380

O-Ring

1шт.

23

0309701

Cap

(SUB FOR TH109964)

1шт.

24

Spool

(SUB 4336936)

1шт.

25

Spool

(SUB 4336936)

1шт.

26

Spool

(SUB 4336936)

1шт.

27

Spool

(SUB 4336936)

1шт.

28

Spool

(SUB 4336936)

1шт.

29

Spool

(SUB 4336936)

1шт.

30

Spool

(SUB 4336936)

1шт.

31

Spool

(SUB 4336936)

1шт.

32

Spool

(SUB 4336936)

1шт.

36

4336936

Hyd Actuated Control Valve

(NOT ILLUSTRATED) (CONTAINS ALL ITE MS ON THIS PAGE, ADDITIONAL COMPONEN TS LISTED ON PREVIOUS PAGES.) (SUB F OR TH111289, AT186104 AND 4336936EX)

1шт.
