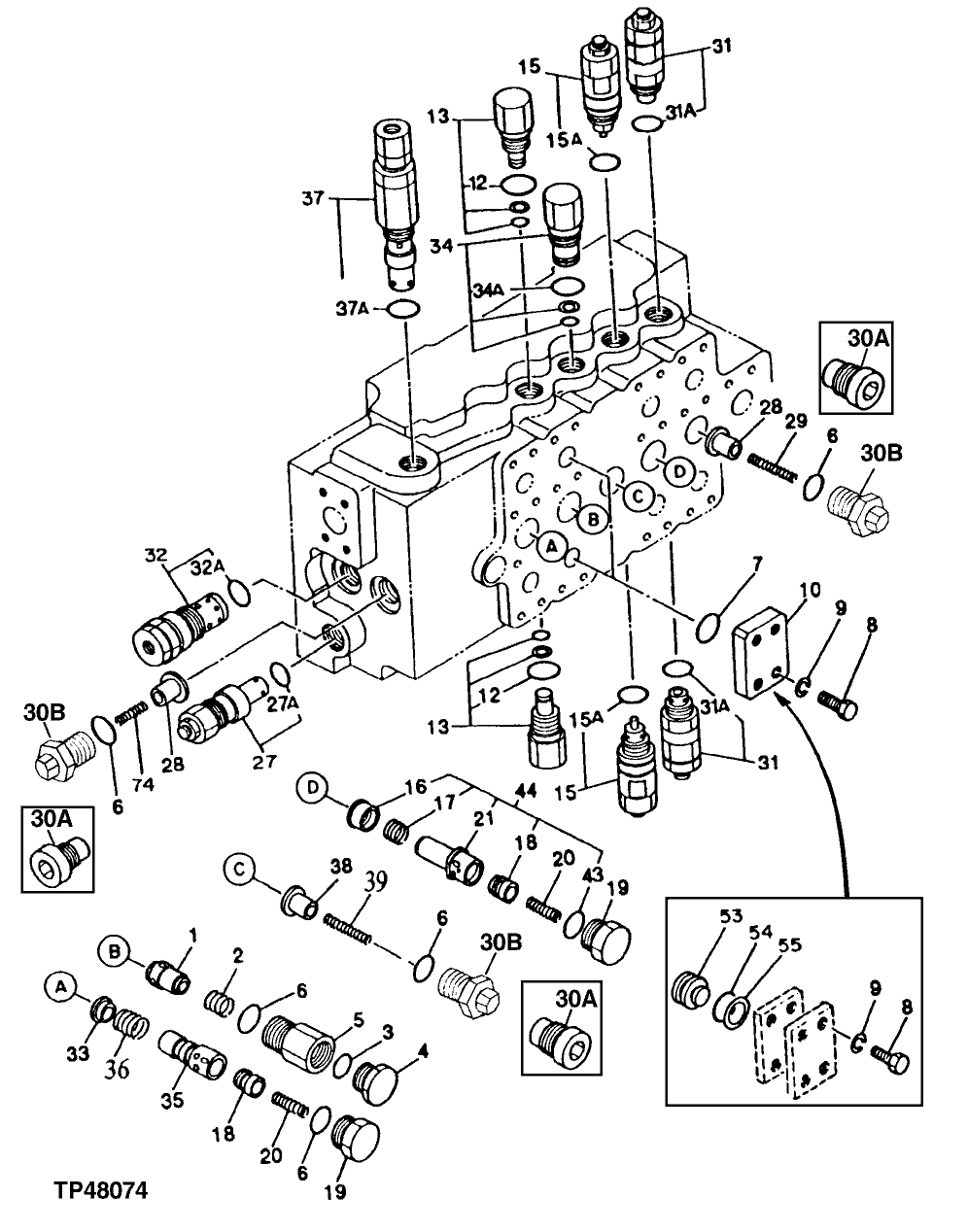

Запчасти John Deere 92DLC 227 - Control Valve 3360 HYDRAULIC SYSTEM

31

4228354

Pressure Relief Valve

(SUB FOR TH104760, THIS APPLICATION ) (SUB FOR TH110001)(CIRCUIT RELIEF)

2шт.

31A

U12547

O-Ring

23.470 X 2.946 mm (SUB FOR TH112252)

1шт.

32

0309709

Pressure Relief Valve

(FLOW SENSING)

1шт.

32A

U17409

O-Ring

26.594 X 2.946 mm

1шт.

33

0496316

Poppet

(SUB FOR TH109985, THIS APPLICATION)

1шт.

34

4378250

Fitting Plug

(SUB FOR TH109976)

1шт.

34A

4257234

Seal Kit

1шт.

35

0496317

Sleeve

(SUB FOR TH109989, THIS APPLICATION)

1шт.

36

4237927

Spring

(SUB FOR TH109986, THIS APPLICATION)

1шт.

37

4228356

Pressure Relief Valve

(DIGGING FUNCTIONS)

1шт.

37A

U12547

O-Ring

23.470 X 2.946 mm (SUB FOR TH112252)

1шт.

38

0496312

Poppet

(SUB FOR 4235391)

1шт.

39

4235392

Spring

1шт.

43

U17409

O-Ring

26.594 X 2.946 mm (SUB FOR TH102730)

1шт.

44

Check Valve

(SUB TH112230)( TH1119 24 NO LONGER AVAILABLE)

1шт.

4250560

Check Valve

1шт.

53

Fitting Plug

( TH109991 NO LONGER AVILABLE) (S UB TH111921 ) (ALSO ORDER A4730R)

2шт.

54

CH17159

Packing

2шт.

55

Back-Up Ring

( TH109993 NO LONGER AVAILABLE) ( SUB 0309733 ) (ALSO ORDER A4730R)

2шт.

74

0309728

Spring

1шт.

75

4336936

Hyd Actuated Control Valve

(SUB FOR TH111289, 4336936EX AND AT186 104)(NOT ILLUSTRATED) (CONTAINS ALL ITE MS ON THIS PAGE, ADDITIONAL COMMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES )

1шт.
