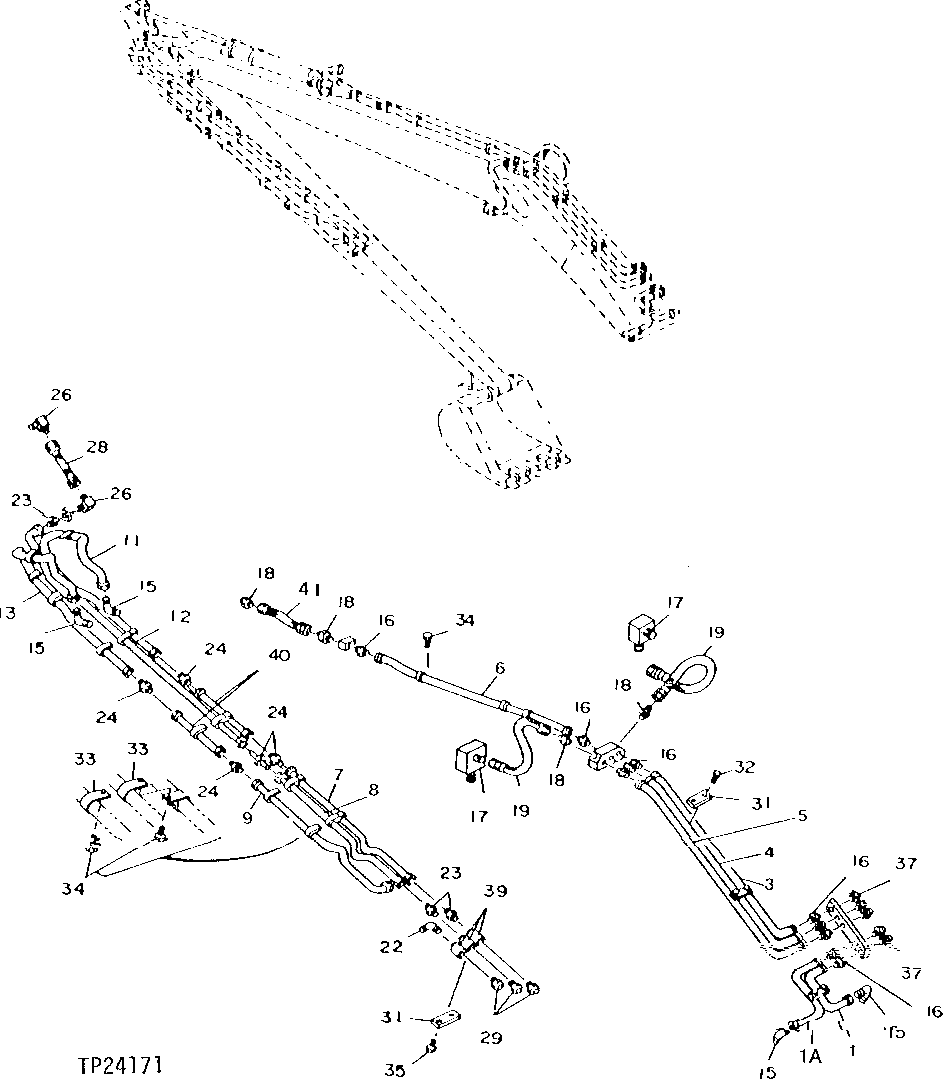

Запчасти John Deere 92DLC 223 - SUPER LONG FRONT CENTRAL LUBRICATION LINES 3360 HYDRAULIC SYSTEM

1

4198878

Oil Line

(SUB FOR TH111295)

1шт.

1A

4198879

Oil Line

(SUB FOR TH111296)

1шт.

3

3043120

Oil Line

(SUB FOR TH111813)

1шт.

4

3043121

Oil Line

(SUB FOR TH111814)

1шт.

5

3043122

Oil Line

(SUB FOR TH111815)

1шт.

6

4228317

Oil Line

(SUB FOR TH111816)

1шт.

7

3034926

Oil Line

(SUB FOR TH111817)

1шт.

8

4186656

Oil Line

(SUB FOR TH111818)

1шт.

9

3034925

Oil Line

(SUB FOR TH111819)

1шт.

11

4189099

Oil Line

(SUB FOR TH111820)

1шт.

12

3034927

Oil Line

(SUB FOR TH111821)

1шт.

13

4189100

Oil Line

(SUB FOR TH111822)

1шт.

15

4130174

Fitting

(SUB FOR TH103262)

4шт.

16

4130169

Fitting

(SUB FOR TH101391)

10шт.

17

4154656

Elbow Fitting

(SUB FOR TH101588)

2шт.

18

4154651

Adapter Fitting

(SUB FOR TH100963)

4шт.

19

4231286

Hydraulic Hose

(SUB FOR TH111823)

2шт.

22

4130175

Fitting

(SUB FOR TH101392)

1шт.

23

4130169

Fitting

(SUB FOR TH101391)

3шт.

24

Z32962

Fitting

(SUB FOR T115094)

5шт.

26

4154656

Elbow Fitting

(SUB FOR TH101588)

2шт.

28

AE42718

Hydraulic Hose

(SUB FOR TH111824)

1шт.

29

T116334

Lubrication Fitting

(SUB FOR TH100075)

3шт.

31

4054024

Strap

(SUB FOR TH100363)

4шт.

32

19M7662

Cap Screw

6шт.

33

TH101388

Clip

21шт.

34

19M7300

Cap Screw

15шт.

35

19M7358

Cap Screw

2шт.

37

TH100364

Lubrication Fitting

5шт.

39

4060162

Adapter Fitting

(SUB FOR T115095)

3шт.

40

4189101

Oil Line

(SUB FOR TH111825)

2шт.

41

4231285

Hydraulic Hose

(SUB FOR TH111779)

1шт.
