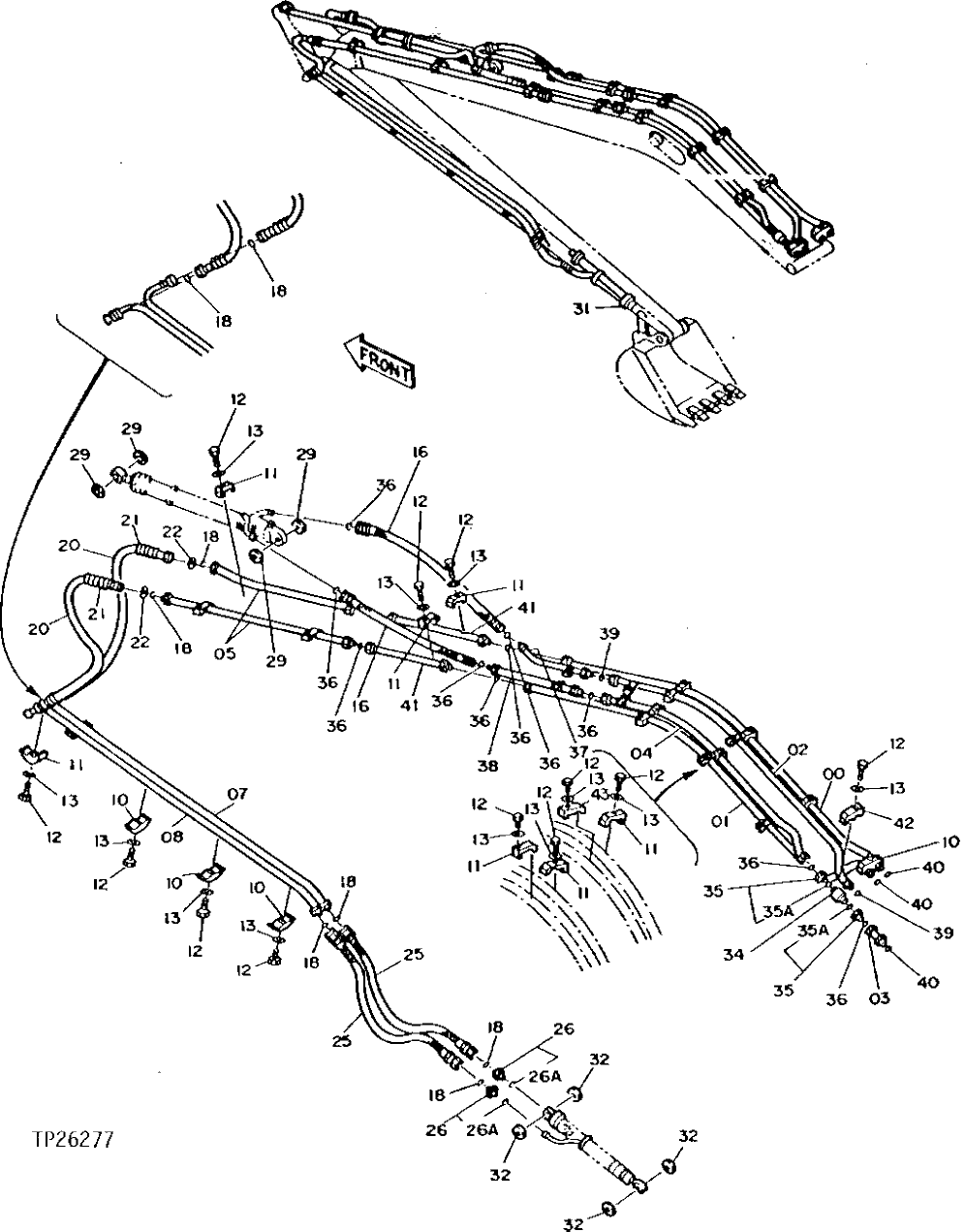

Запчасти John Deere 92DLC 222 - SUPER LONG FRONT ARM AND BOOM HYDRAULIC LINES 3360 HYDRAULIC SYSTEM

0

8042855

Oil Line

(SUB FOR TH111799)

1шт.

1

8042854

Oil Line

(SUB FOR TH111800)

1шт.

2

8042853

Oil Line

(SUB FOR TH111801)

1шт.

3

9730902

Oil Line

(SUB FOR TH111802)

1шт.

4

8042852

Oil Line

(SUB FOR TH111803)

1шт.

5

8042861

Oil Line

(SUB FOR TH111804)

2шт.

7

8042859

Oil Line

(SUB FOR TH111805)

1шт.

8

8042858

Oil Line

(SUB FOR TH111806)

1шт.

10

4285723

Clamp

(SUB FOR TH109071 OR 4189859)

5шт.

11

4190126

Clamp

(SUB FOR TH109830)

18шт.

12

19M7363

Cap Screw

M12 X 60

28шт.

13

12H301

Lock Washer

1/2"

28шт.

16

4187391

Hydraulic Hose

(SUB FOR TH111229)

2шт.

18

T77858

O-Ring

(SUB FOR TH108349)

8шт.

20

4227051

Hydraulic Hose

(SUB FOR TH111807)

2шт.

21

4055191

Hose Guard

(SUB FOR TH111808)

2шт.

22

4203220

Washer

(SUB FOR TH109827)

2шт.

25

AT120771

Hydraulic Hose

2шт.

26

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

2шт.

26A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

29

TH102446

Seal

(I.D. 80 MM - O.D. 95 MM)

4шт.

31

4241241

Hydraulic Cylinder

(SUB FOR AT86766)

1шт.

32

4117954

Seal

(SUB FOR TH106006)

4шт.

34

9075046

Flow Control Hyd. Valve

(SUB FOR AT120774)

1шт.

35

4189535

Adapter Fitting

2шт.

35A

TH101926

O-Ring

1шт.

36

T76938

O-Ring

(SUB FOR TH108326)

10шт.

37

8042863

Oil Line

(SUB FOR TH111810)

1шт.

38

8042862

Oil Line

(SUB FOR TH111811)

1шт.

39

T78612

O-Ring

(SUB FOR TH111228)

2шт.

40

T76938

O-Ring

(SUB FOR TH108326)

3шт.

41

9730903

Oil Line

(SUB FOR TH111812)

2шт.

42

4153488

Clamp

(SUB FOR TH103780)

1шт.

43

4190127

Clamp

(SUB FOR TH108313)

4шт.
