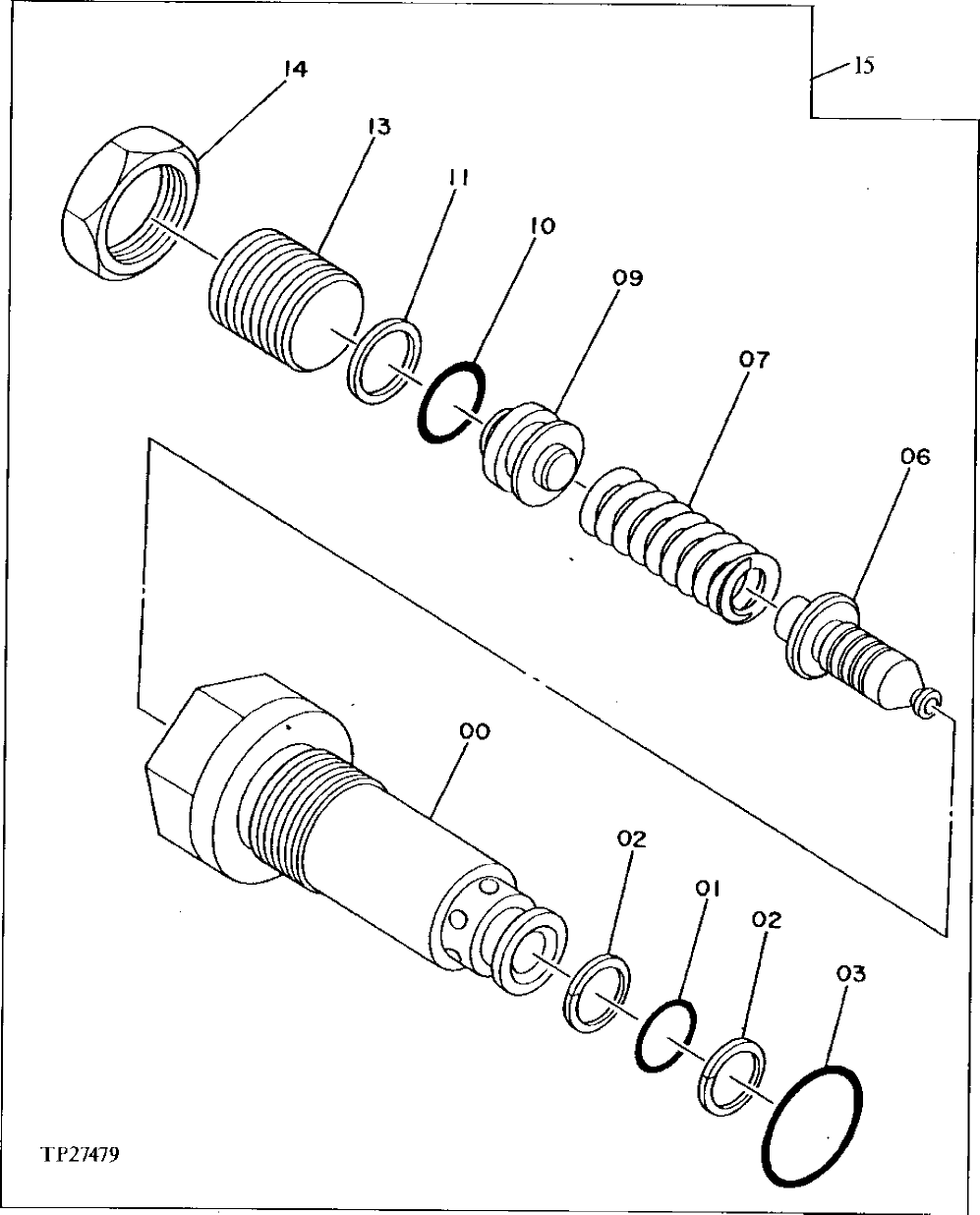

Запчасти John Deere 92DLC 13 - PROPEL MOTOR BRAKE RELIEF VALVE 0260 HYDRAULIC SYSTEM

0

9065590

Pressure Relief Valve

(SUB FOR T107799 ) (SUB FOR TH109960)

1шт.

1

CH11570

O-Ring

1шт.

2

4038533

Back-Up Ring

(SUB FOR TH100050)

2шт.

3

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

6

Piston

( T107800 NO LONGER AVAILABLE)

1шт.

7

Compression Spring

( T107797 NO LONGER AVAILABLE)

1шт.

9

Plug

( T107798 NO LONGER AVAILABLE)

1шт.

10

CH11570

O-Ring

1шт.

11

4038533

Back-Up Ring

(SUB FOR TH100050)

1шт.

13

Set Screw

( TH100056 NO LONGER AVAILABLE)

1шт.

14

Nut

( TH100057 NO LONGER AVAILABLE)

1шт.

15

9076536

Pressure Relief Valve

(SUB FOR TH111614)

2шт.
