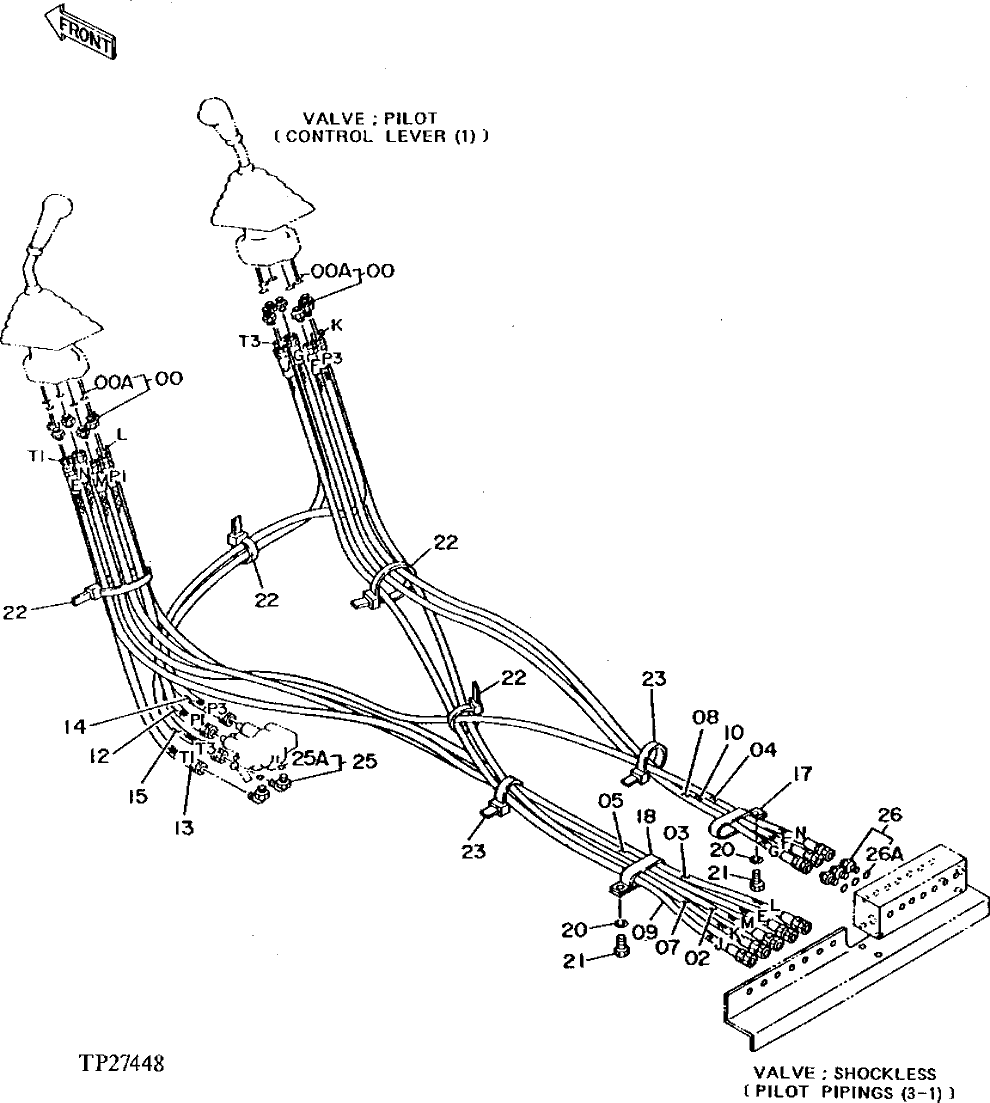

Запчасти John Deere 92DLC 219 - PILOT PLUMBING 3360 HYDRAULIC SYSTEM

0

4200467

Adapter Fitting

(SUB FOR TH108417)

12шт.

0A

M800650

Packing

1шт.

2

AT48422

Hydraulic Hose

(L) (SUB FOR TH111319)

1шт.

3

AT48422

Hydraulic Hose

(N)

1шт.

4

AT48422

Hydraulic Hose

(E) (SUB FOR TH111314)

1шт.

5

AT48422

Hydraulic Hose

(M) (SUB FOR TH111320)

1шт.

7

4447637

Hydraulic Hose

(K) (SUB FOR TH111316 OR AT71731)

1шт.

8

4447637

Hydraulic Hose

(G) (SUB FOR AT71731)

1шт.

9

4447637

Hydraulic Hose

(J) (SUB FOR TH111317 OR AT71731)

1шт.

10

4447637

Hydraulic Hose

(F) (SUB FOR TH111315 OR AT71731)

1шт.

12

AT48428

Hydraulic Hose

(SUB FOR TH111322)(P1)

1шт.

13

AH108250

Hose

(SUB FOR TH108471)

1шт.

14

AT46299

Hydraulic Hose

(SUB FOR 4207926)(P3)

1шт.

15

AT48434

Hydraulic Hose

(SUB FOR TH111347)(T3)

1шт.

17

4193816

Clip

(SUB FOR TH111255)

1шт.

18

R50454

Clamp

(SUB FOR TH109445 OR 4192034)

1шт.

20

12M7066

Lock Washer

2шт.

21

19M3142

Cap Screw

2шт.

22

H77698

Tie Band

(SUB FOR T44946)

5шт.

23

H77698

Tie Band

(SUB FOR TH106422)

2шт.

25

4154671

Elbow Fitting

(SUB FOR TH101047)

2шт.

25A

CH11570

O-Ring

1шт.

26

4200466

Adapter Fitting

(SUB FOR TH108320)

3шт.

26A

CH11570

O-Ring

1шт.
