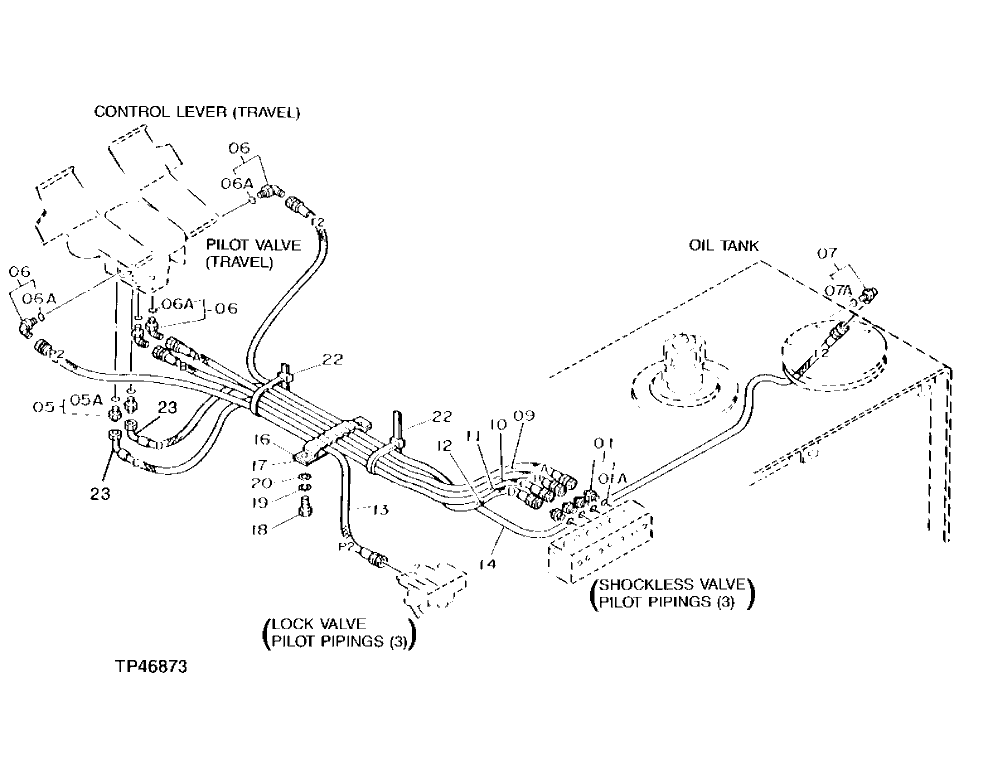

Запчасти John Deere 92DLC 218 - PILOT PLUMBING 3360 HYDRAULIC SYSTEM

1

4200466

Adapter Fitting

(SUB FOR TH108320)

4шт.

1A

CH11570

O-Ring

1шт.

5

4200467

Adapter Fitting

(SUB FOR TH108417)

2шт.

5A

M800650

Packing

1шт.

6

AT318014

Elbow Fitting

(SUB FOR 4156434 ) (SUB FOR TH101930)

4шт.

6A

M800650

Packing

1шт.

7

4154671

Elbow Fitting

(SUB FOR TH101047)

1шт.

7A

CH11570

O-Ring

1шт.

9

AR103791

Hose

(SUB FOR TH111312)(A) (R IGHT PROPEL REVERSE LINE)

1шт.

10

4447637

Hydraulic Hose

(SUB FOR TH111313 OR AT71731) (B) (LEFT PROPEL REVERSE LINE)

1шт.

11

AR103791

Hose

(C) (SUB FOR 4207981, ALONG WITH A E24616) (LEFT PROPEL FORWARD LINE)

1шт.

12

AR103791

Hose

(D) (SUB FOR 4207982, ALONG WITH A E24616) (RIGHT PROPEL FORWARD LINE)

1шт.

13

AT48434

Hydraulic Hose

(SUB FOR TH111323)(P2) (FO OT CONTROLLER SUPPLY LINE)

1шт.

14

AH89075

Hydraulic Hose

(SUB FOR TH111349)(T2) (FO OT CONTROLLER RETURN LINE)

1шт.

16

9727639

Hose Clamp

(SUB FOR TH108456)

1шт.

17

9727637

Plate

(SUB FOR TH108457)

1шт.

18

19M7550

Cap Screw

2шт.

19

12M7066

Lock Washer

2шт.

20

24M7028

Washer

2шт.

22

H77698

Tie Band

(SUB FOR T44946)

5шт.

23

AE24616

Elbow Fitting

2шт.
