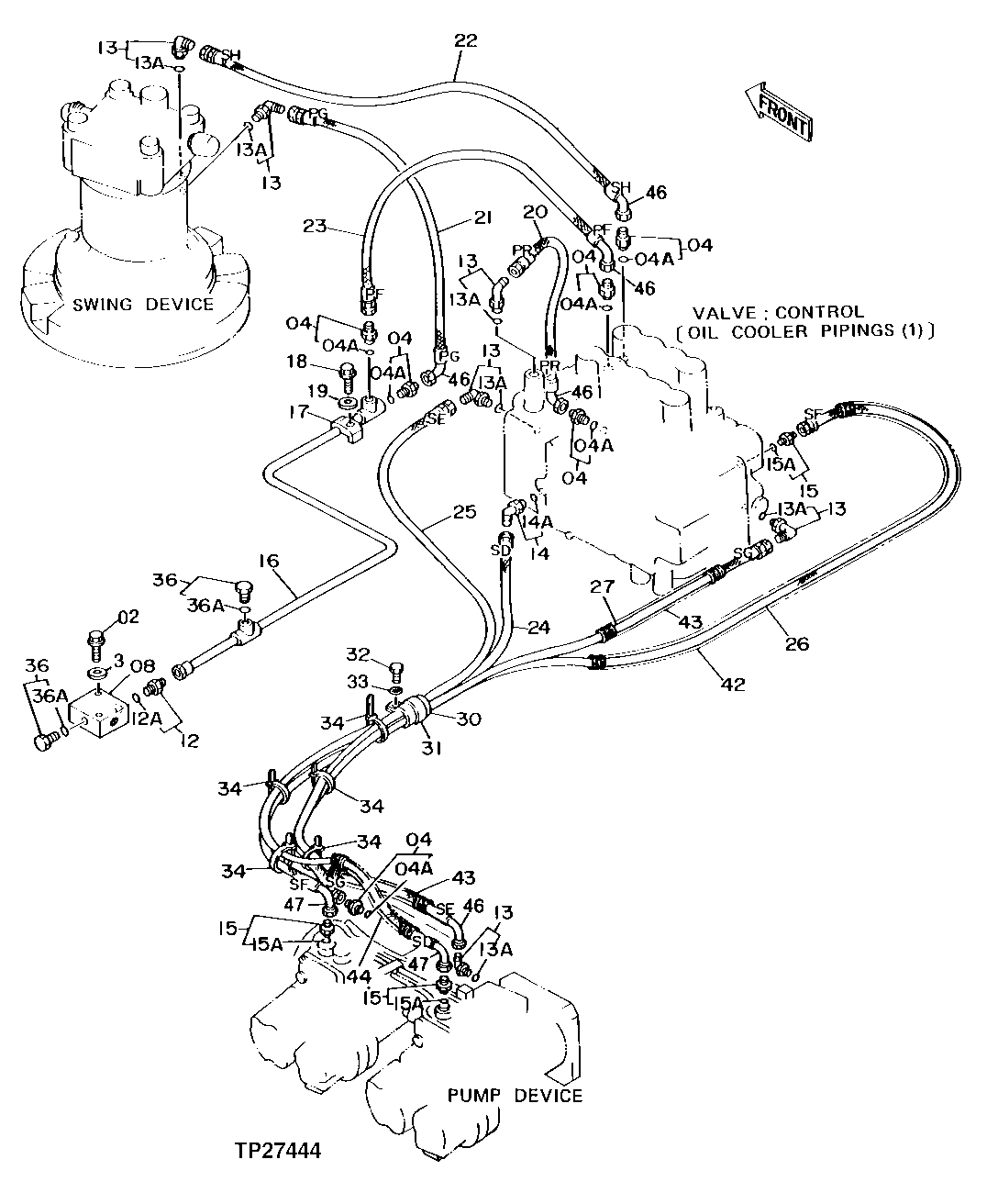

Запчасти John Deere 92DLC 217 - PILOT PLUMBING 3360 HYDRAULIC SYSTEM

2

19M8499

Cap Screw

2шт.

3

12M7066

Lock Washer

2шт.

4

4200465

Adapter Fitting

(SUB FOR TH108328)

6шт.

4A

M800650

Packing

1шт.

8

9072360

Check Valve

(SUB FOR TH108415)(PILOT PRESSURE MANIFOLD)

1шт.

12

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

12A

CH11570

O-Ring

1шт.

13

4154670

Elbow Fitting

(SUB FOR TH100951)

6шт.

13A

M800650

Packing

1шт.

14

4200472

Elbow Fitting

(SUB FOR TH111301)

1шт.

14A

M800650

Packing

1шт.

15

4200467

Adapter Fitting

(SUB FOR TH108417)

3шт.

15A

M800650

Packing

1шт.

16

9727403

Oil Line

(SUB FOR TH111636)

1шт.

17

4190124

Clamp

(SUB FOR TH108727)

1шт.

18

19M7496

Cap Screw

1шт.

19

12H301

Lock Washer

1шт.

20

4203161

Hydraulic Hose

(SUB FOR TH108352)(PR) (SUB FO R 4207960, ALONG WITH AH89069)

1шт.

21

AT126850

Hydraulic Hose

(PG) (SUB FOR TH111334, ALONG WITH AH8 9069) (SWING BRAKE RELEASE SUPPLY LINE)

1шт.

AT126850

Hydraulic Hose

(PG) (SUB FOR 4235282, ALONG WITH AH89 069) (SWING BRAKE RELEASE SUPPLY LINE)

1шт.

22

AE42718

Hydraulic Hose

(SH) (SUB FOR 4207934, ALONG WITH AH8906 9) (SWING BRAKE RELEASE ACTIVATION LINE)

1шт.

23

AT132513

Hydraulic Hose

(PF) (SUB FOR TH111333, ALONG WITH AH89 069) (SUPPLY LINE FOR SYSTEM RELIEF SELE CTOR VALVE CIRCUIT, FLOW COMBINER VALVE CIRCUIT AND SWING BRAKE RELEASE CIRCUIT)

1шт.

24

AR103791

Hose

(SUB FOR TH111335, ALONG WITH A E24616) (LEFT FLOW SENSING VALVE LINE TO REGULATOR FRONT PISTON)

1шт.

25

AT132003

Hydraulic Hose

(SUB FOR AT132003)(BA) (SUB FOR TH1113 36, ALONG WITH AH89069) (LEFT FLOW SENS ING VALVE LINE TO REGULATOR REAR PISTON )

1шт.

26

AE42000

Hydraulic Hose

(SUB FOR 4207932, ALONG WITH AE 24616) (RIGHT FLOW SENSING VALVE LINE TO REGULATOR FRONT PISTON)

1шт.

27

AE42281

Hydraulic Hose

(SUB FOR TH111338)(BC) (RIGHT FLOW SENS ING VALVE LINE TO REGULATOR REAR PISTON)

1шт.

30

4219918

Isolator

(SUB FOR TH111416)

1шт.

31

N198631

Clamp

(SUB FOR TH109598 OR 4190265)

1шт.

32

19M7938

Cap Screw

1шт.

33

12M7066

Lock Washer

1шт.

34

H77698

Tie Band

(SUB FOR TH102001 OR M88199)

10шт.

36

AT318013

Drain Plug

(SUB FOR 4093624 ) (SUB FOR TH103949 ) (SUB FOR TH102536)

2шт.

36A

M800650

Packing

1шт.

42

Tube

( AT132010 OR TH111058 NO LONGER AVAILABLE ) (CUT TO LENGTH FROM T83427 BULK MATERIAL)

1шт.

43

R57752

Conduit

(SUB FOR TH111241 OR AT131940)

2шт.

44

T83427

Conduit

1шт.

46

AH89069

Elbow Fitting

5шт.

47

AE24616

Elbow Fitting

2шт.
