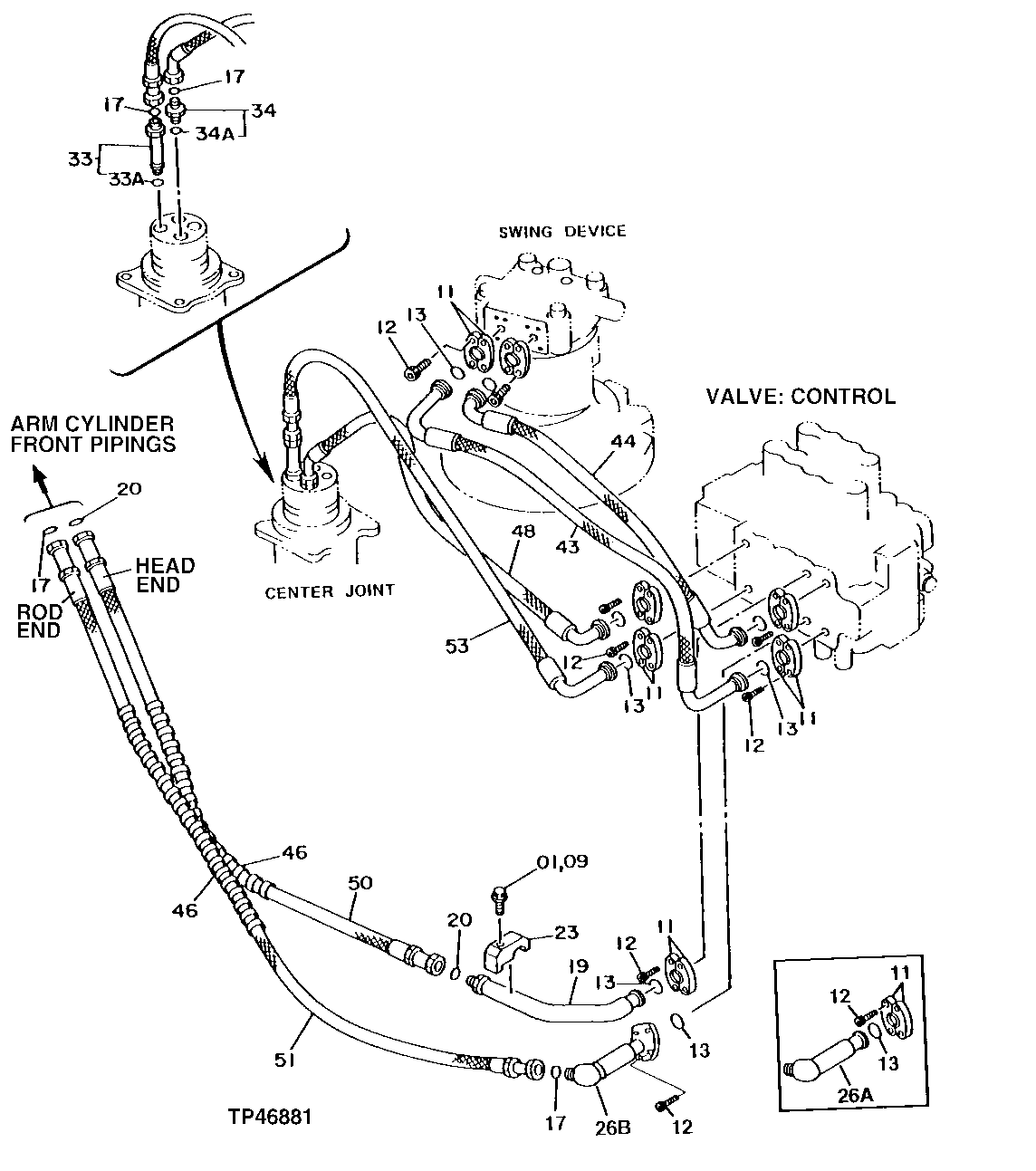

Запчасти John Deere 92DLC 212 - ARM CYLINDER HOSES 3360 HYDRAULIC SYSTEM

1

12H301

Lock Washer

1/2"

1шт.

9

19M7753

Cap Screw

M12 X 70

1шт.

19M8348

Cap Screw

M12 X 65

1шт.

11

R29424

Flange Fitting

(SUB FOR TH108300)

16шт.

12

19M8337

Screw

M10 X 30

32шт.

13

T59014

O-Ring

24.994 X 3.531 mm

8шт.

17

T76938

O-Ring

23.520 X 1.780 mm (SUB FOR TH108326)

4шт.

19

8037216

Oil Line

(SUB FOR TH111482)

1шт.

20

T78612

O-Ring

(SUB FOR TH111228)

2шт.

23

4190127

Clamp

(SUB FOR TH108313)

1шт.

26A

Oil Line

(SUB AT172838)( AT201195 OR TH111635 NO LONGER AVAILABLE)

1шт.

26B

8064228

Line

(SUB FOR AT172838)

1шт.

33

4198411

Adapter Fitting

(SUB FOR TH111292)

1шт.

33A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

34

4189601

Adapter Fitting

(SUB FOR AT107394)

1шт.

34A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

43

TH111357

Hydraulic Hose

1шт.

44

4209736

Hydraulic Hose

(SUB FOR TH111356)

1шт.

46

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222)

2шт.

48

4209732

Hydraulic Hose

(SUB FOR TH111353)(LEFT PROPEL FORWARD)

1шт.

Hydraulic Hose

(SUB TH111353)(LEFT PROPEL FORWARD)

1шт.

50

4209739

Hydraulic Hose

(SUB FOR TH111358)(ARM FUNCTION)

1шт.

51

4209740

Hydraulic Hose

(SUB FOR TH111359)(ARM FUNCTION)

1шт.

53

4209735

Hydraulic Hose

(SUB FOR TH111355)(LEFT PROPEL REVERSE)

1шт.

Hydraulic Hose

(SUB TH111355)(LEFT PROPEL REVERSE)

1шт.
