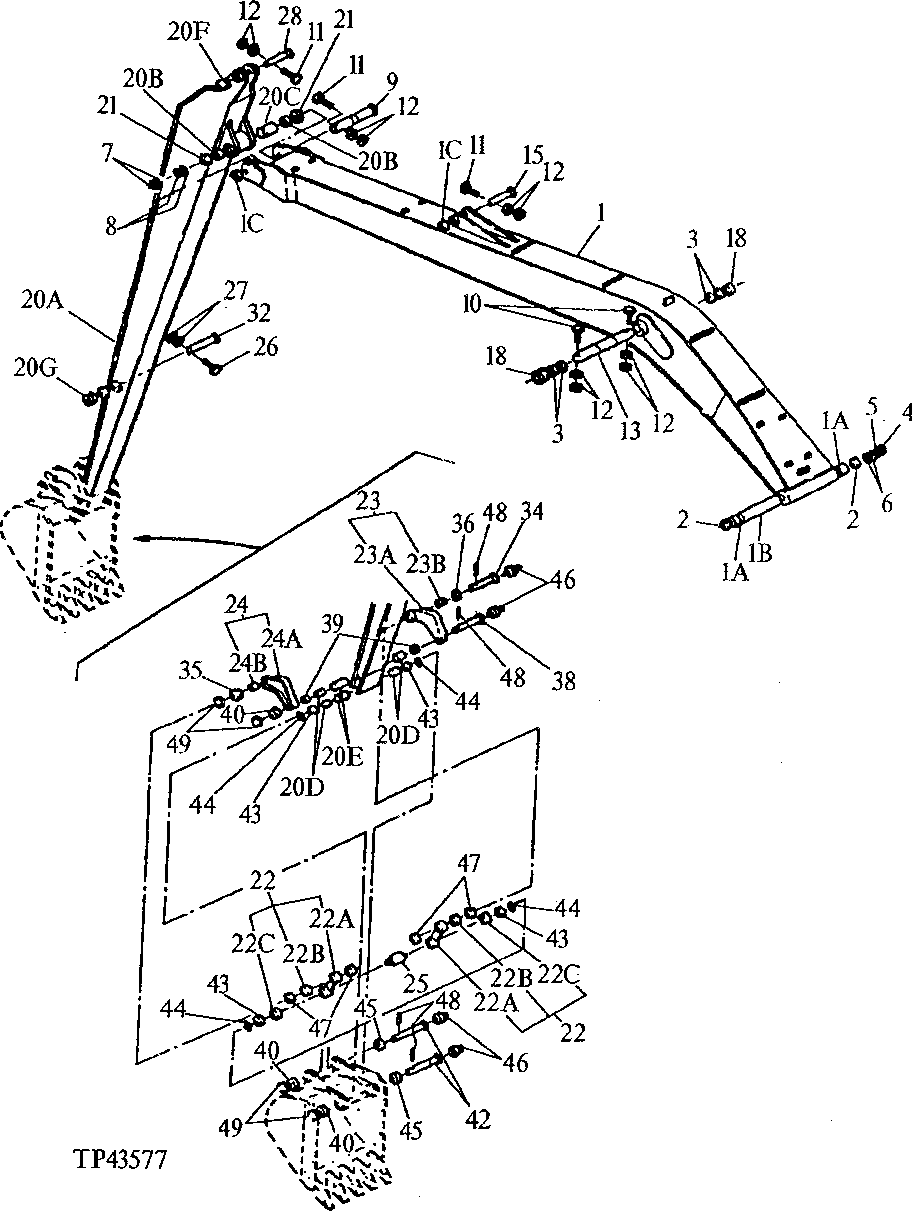

Запчасти John Deere 92DLC 211 - SUPER LONG FRONT ARM AND BOOM 3344 Boom

21

TH102446

Seal

(I.D. 80 MM - O.D. 95 MM)

2шт.

22

9058284

Link

(SUB FOR AT120750)

2шт.

22A

Link

(SUB AT120750)

1шт.

22B

4167593

Bushing

55 X 65 X 42 mm (SUB FOR T115082)

1шт.

22C

T115080

Bushing

1шт.

23

9022031

Link

(SUB FOR AT120757)

1шт.

23A

Link

(SUB AT120757)

1шт.

23B

4057477

Bushing

(SUB FOR T115084)

1шт.

24

9022030

Link

(SUB FOR AT120758)

1шт.

24A

Link

(SUB AT120758)

1шт.

24B

4057477

Bushing

(SUB FOR T115084)

1шт.

25

4167590

Spacer

(SUB FOR T115086)

1шт.

26

M221602

Cap Screw

(SUB FOR TH111751)

1шт.

27

14M7276

Nut

M16 (SUB FOR TH111797)

2шт.

28

TH111752

Pin Fastener

1шт.

32

T115088

Pin

55 X 182 mm

1шт.

34

T115089

Pin

55 X 311 mm

1шт.

35

4197031

Bushing

(SUB FOR TH110546)

1шт.

36

4057479

Washer

56 X 88 X 6 mm (SUB FOR T115090)

1шт.

38

T115091

Pin

50 X 331 mm

1шт.

39

4082194

Seal

(SUB FOR AT120759)

2шт.

40

T115092

Bushing

3шт.

42

T115093

Pin

50 X 381 mm

2шт.

43

4082194

Seal

(SUB FOR AT120759)

4шт.

44

4066923

O-Ring

95 X 10 mm (SUB FOR AT121233)

4шт.

45

J21017

Washer

(SUB FOR TH111753)

2шт.

46

TH100074

Lubrication Fitting

4шт.

47

4117954

Seal

(SUB FOR TH106006)

4шт.

48

4065689

Pin Fastener

17.500 X 81 mm (SUB FOR TH100625)

4шт.

49

4065688

Retainer

(SUB FOR TH100624)

4шт.

60

TH111043

Arm

(SUB FOR AT120774)WHOLEGOODS (NOT ILLUSTRA TED) (INCLUDES ARM CYLINDER, HYDRAULIC TUBE S AND ALL ITEMS LISTED ON THIS PAGE - DOES NOT INCLUDE BUCKET) (USE WITH TH111049) (AL SO ORDER TH111827, TH111828, 9075046 420 7425 T59014, (2) AT250019 AND (2) T76938)

1шт.
