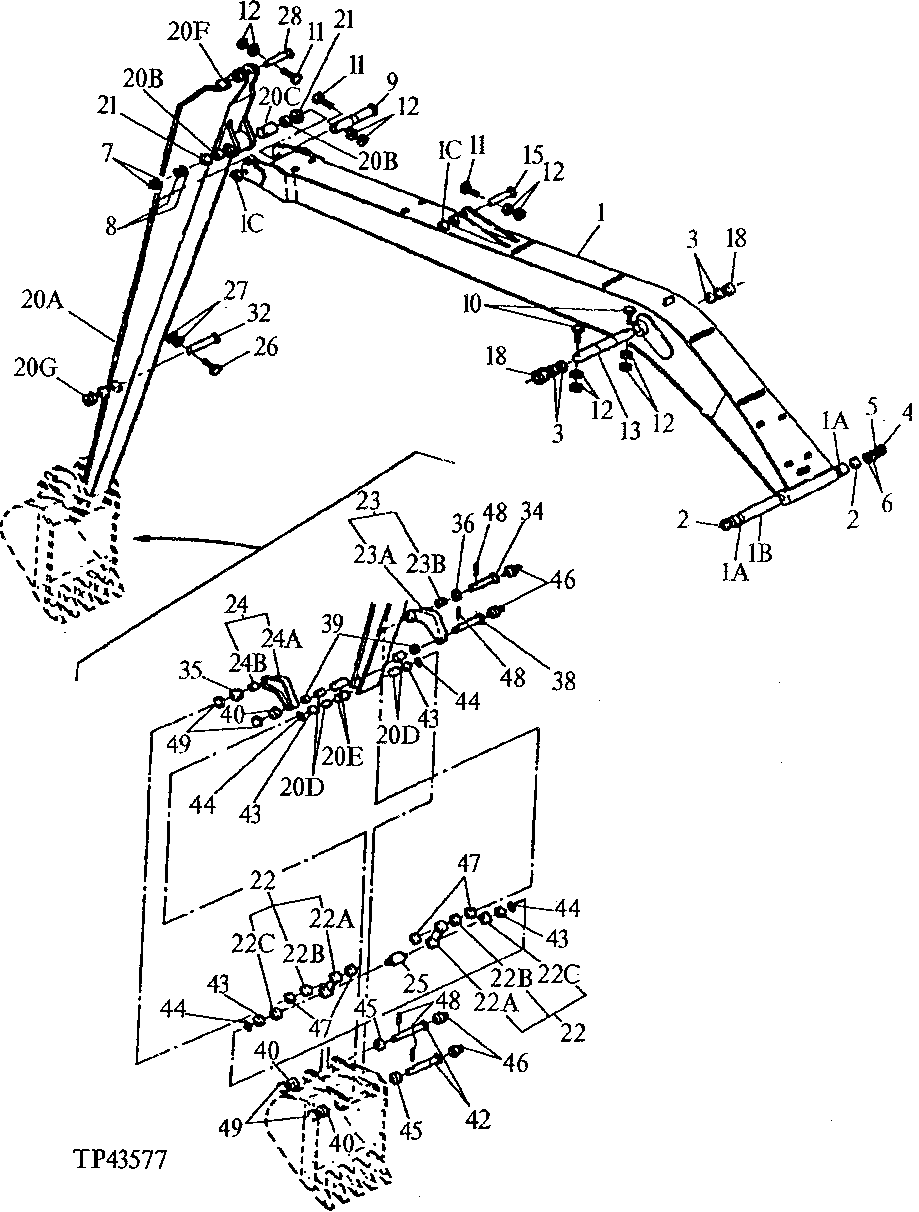

Запчасти John Deere 92DLC 210 - SUPER LONG FRONT ARM AND BOOM 3344 Boom

1

Excavator Boom

( TH11048 NO LONGER AVAILABLE)

1шт.

1A

3039123

Bushing

(SUB FOR TH111190)

2шт.

1B

4143373

Bushing

(SUB FOR TH103197)

1шт.

1C

4067719

Pivot

(SUB FOR TH102410)

2шт.

2

TH103200

Seal

2шт.

3

TH102411

Seal

4шт.

4

4143605

Washer

115 X 220 X 3.200 mm (SUB FOR TH103206)

1шт.

5

4143606

Washer

115 X 220 X 2.300 mm (SUB FOR TH103207)

1шт.

6

4143607

Washer

115 X 220 X 1.200 mm (SUB FOR TH103208)

2шт.

7

TH104297

Washer

84 X 145 X 2.250 mm

2шт.

8

TH104296

Washer

84 X 145 X 1 mm

2шт.

9

TH111743

Pin Fastener

1шт.

10

19M8100

Cap Screw

M20 X 180 (SUB FOR TH103500)

2шт.

11

19M8503

Cap Screw

M20 X 160

3шт.

12

14M7277

Nut

M20

10шт.

13

TH103202

Pin Fastener

(I.D. 65 MM)

1шт.

15

TH111794

Pin Fastener

80 X 290 mm

1шт.

18

TH103198

Bushing

101.600 X 127 X 49.276 mm

2шт.

20A

Arm

(USE WITH TH111048)( TH11 1049 NO LONGER AVAILABLE)

1шт.

Arm

(SUB TH111049)

1шт.

20B

3030949

Bushing

(SUB FOR T115078)

2шт.

20C

4184513

Spacer

(SUB FOR TH111747)

1шт.

20D

T115080

Bushing

4шт.

20E

4184546

Bushing

(SUB FOR TH111749)

2шт.

20F

4067719

Pivot

(SUB FOR TH102410)

1шт.

20G

4184724

Stop

(SUB FOR TH111750)

1шт.
