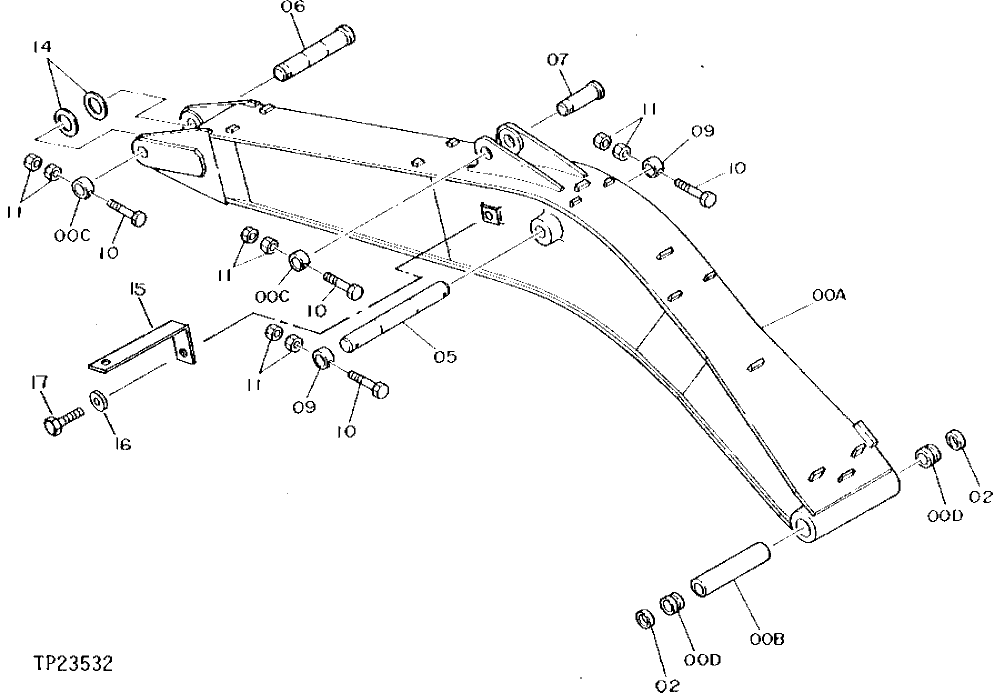

Запчасти John Deere 92DLC 209 - Boom 3344 Boom

0A

7017539

Excavator Boom

(SUB FOR TH111436)(INCLU DES ITEMS 0B, 0C AND 0D)

1шт.

0B

4143373

Bushing

(SUB FOR TH103197)

1шт.

0C

TH103198

Bushing

101.600 X 127 X 49.276 mm

2шт.

0D

3039123

Bushing

(SUB FOR TH111190)

2шт.

2

TH103200

Seal

2шт.

5

TH103202

Pin Fastener

(I.D. 65 MM)

1шт.

6

TH111179

Pin Fastener

1шт.

7

TH111180

Pin Fastener

100 X 293 mm

1шт.

9

TH103198

Bushing

101.600 X 127 X 49.276 mm

2шт.

10

19M8100

Cap Screw

M20 X 180 (SUB FOR TH103500)

4шт.

11

14M7277

Nut

M20

8шт.

14

4144513

Washer

(SUB FOR TH102423)

2шт.

15

4224631

Angle

(SUB FOR TH111685)

1шт.

16

12H317

Lock Washer

9/16"

1шт.

17

J901425

Cap Screw

(SUB FOR TH104071)

1шт.
