Запчасти John Deere 92DLC 204 - LEVER CONTROL BOX (RIGHT) 3315 Controls Linkage

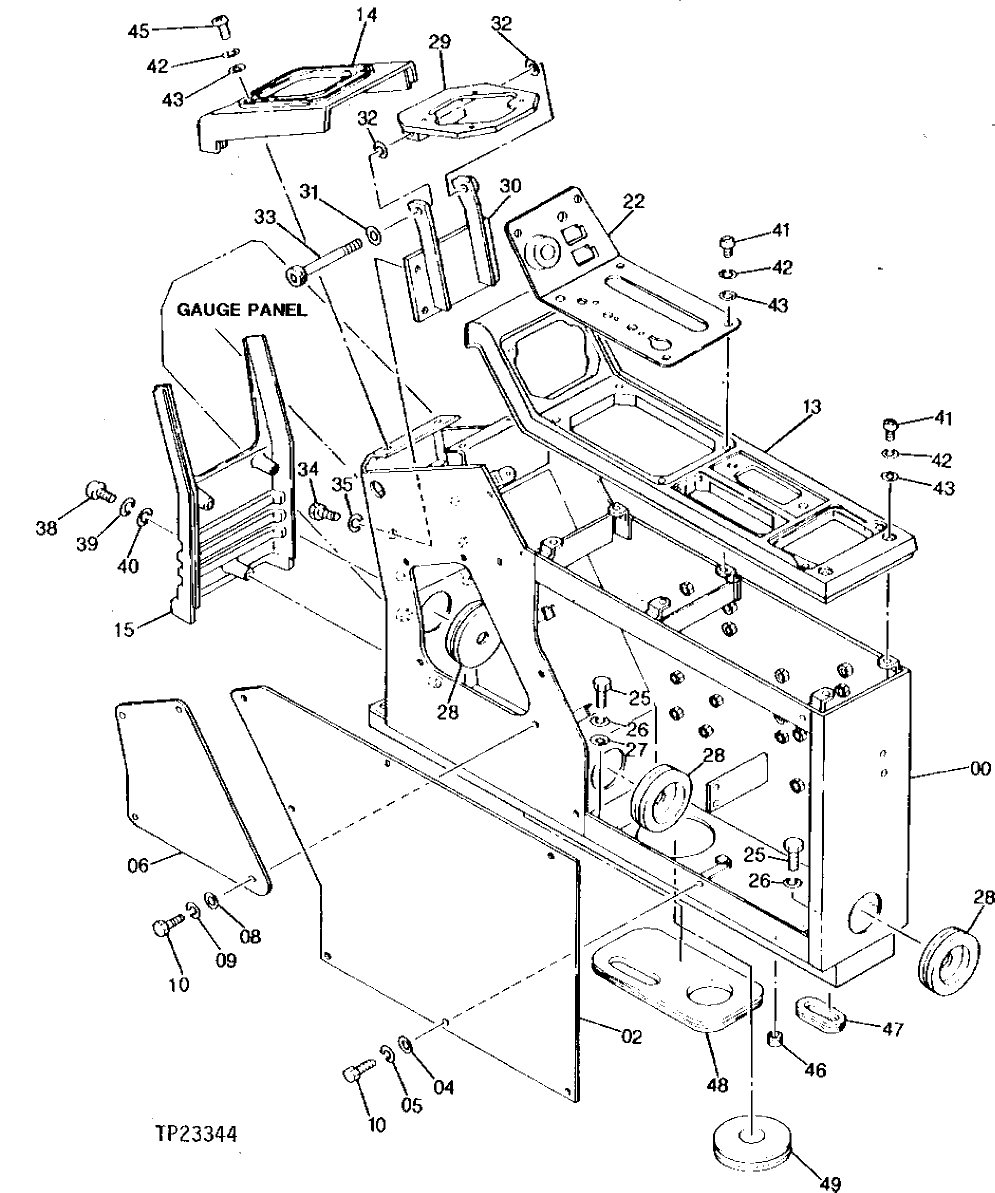

Схема запчастей John Deere 92DLC - 204 - LEVER CONTROL BOX (RIGHT) 3315 Controls Linkage

Артикул

Название

Примечание

Количество

0

8039031

Stand

(SUB FOR TH108484)

1шт.

2

3037903

Cover

(SUB FOR TH108485)

1шт.

4

24M7250

Washer

6.400 X 17 X 3 mm

7шт.

5

12M7006

Lock Washer

6 mm

7шт.

6

4191972

Cover

(SUB FOR TH108486)

1шт.

8

24M7054

Washer

6.400 X 12 X 1.600 mm (SUB FOR TH100278)

4шт.

9

12M7006

Lock Washer

6 mm

4шт.

10

J900614

Bolt

(SUB FOR TH104056)

11шт.

13

5002033

Panel

(SUB FOR TH108487)

1шт.

14

1010966

Cover

(SUB FOR TH108488)

1шт.

15

1010899

Cover

(SUB FOR TH108489)

1шт.

22

7044989

Panel

(SUB FOR 3055215)

1шт.

25

19M8499

Cap Screw

M10 X 60

6шт.

26

12M7066

Lock Washer

10 mm

6шт.

27

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

28

4161992

Grommet

(SUB FOR TH108491)

3шт.

29

8038104

Bracket

(SUB FOR TH108492 ) (SUB FOR TH108509)

1шт.

30

8038102

Bracket

(SUB FOR TH108493)

1шт.

31

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

32

4191947

Shim

(SUB FOR TH108494)

2шт.

33

19M8442

Screw

M12 X 100

1шт.

34

19M7938

Cap Screw

M10 X 20

4шт.

35

12M7066

Lock Washer

10 mm

4шт.

38

21M7405

Screw

M6 X 40

3шт.

39

12M7006

Lock Washer

6 mm (SUB FOR TH103470)

3шт.

40

24M7054

Washer

6.400 X 12 X 1.600 mm

3шт.

41

21M7246

Screw

M6 X 16

8шт.

42

12M7006

Lock Washer

6 mm (SUB FOR TH103470)

12шт.

43

24M7054

Washer

6.400 X 12 X 1.600 mm

12шт.

45

21M7206

Screw

M6 X 20

4шт.

46

487081

Grommet

(SUB FOR TH108081)

1шт.

47

4205083

Grommet

(SUB FOR TH108495)

1шт.

48

4200658

Grommet

(SUB FOR TH108496)

1шт.

49

4209573

Grommet

(SUB FOR TH108497)

1шт.

Выбрано товаров: 34
