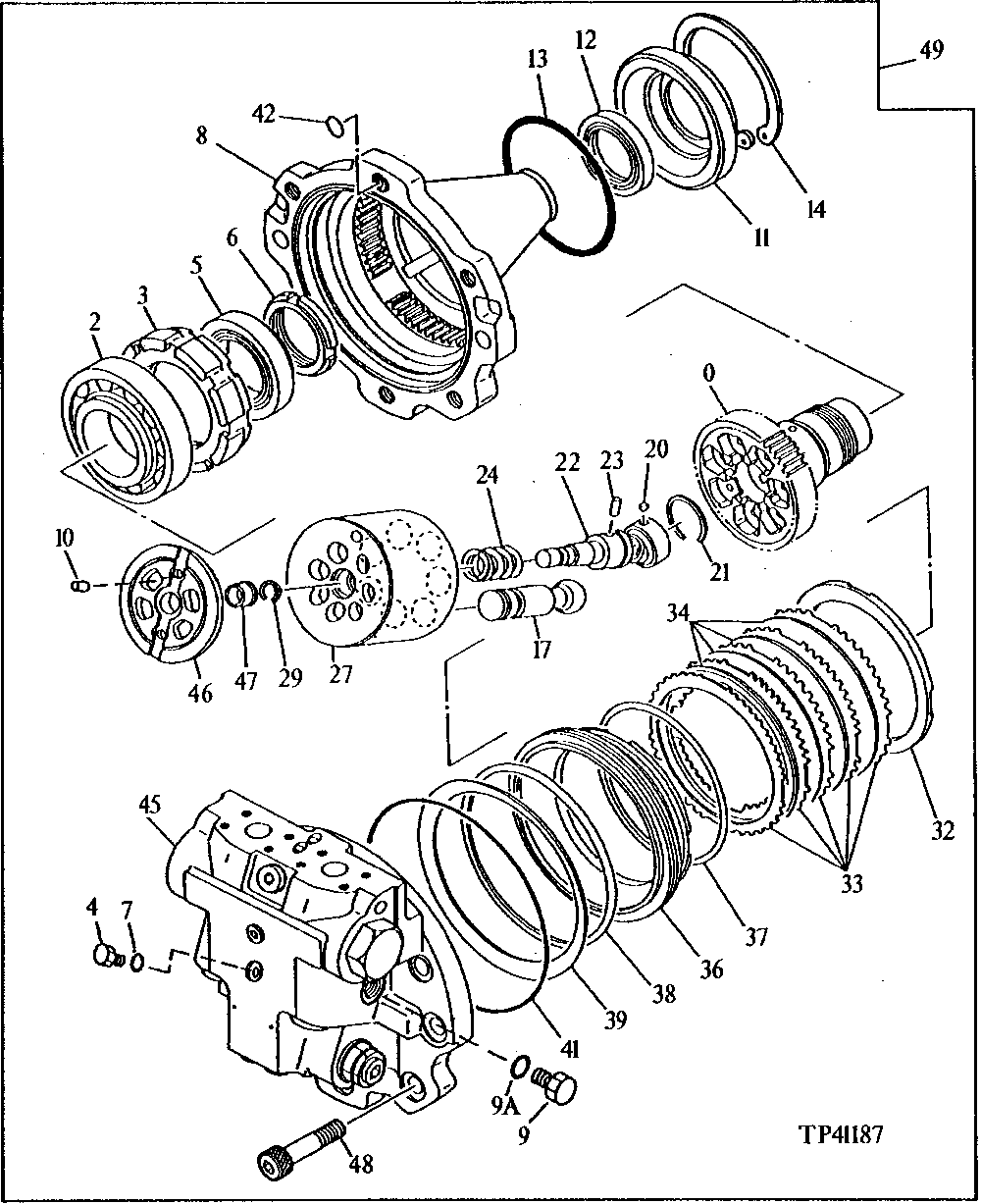

Запчасти John Deere 92DLC 11 - PROPEL MOTOR 0260 HYDRAULIC SYSTEM

0

2023203

Drive Shaft

(SUB FOR TH111117)

1шт.

2

JD10304

Tapered Roller Bearing

(SUB FOR TH111298)

1шт.

3

3036277

Spacer

(SUB FOR TH111149)(MOTOR SERIAL NUMBER)

1шт.

4227550

Spacer

(SUB FOR AT130838)(MOTOR SERIAL NUMBER)

1шт.

4

4208977

Drain Plug

(SUB FOR TH111351)(MOTOR SERIAL NUMBER)

1шт.

5

JD10063

Tapered Roller Bearing

1шт.

6

4191665

Nut

(SUB FOR TH111236)

1шт.

7

M800650

Packing

(MOTOR SERIAL NUMBER)

1шт.

8

Housing

(MOTOR SERIAL NUMBER) (SUB 101265 9 ALONG WITH 4227550, AND 4038529)

1шт.

1012659

Housing

(SUB FOR AT130839)(MOTOR SERIAL NUMBER)

1шт.

9

15M7036

Drain Plug

(SUB FOR TH109285 OR 0309805)(SUB FOR T107751 OR 4217653, ALONG WITH CH11570)

1шт.

9A

CH11570

O-Ring

(USE WITH T107751 OR TH109285)

1шт.

10

4177927

Pin

(SUB FOR T107780)(MOTOR SERIAL NUMBER)

2шт.

11

3035966

Cover

(SUB FOR TH111141)(MOTOR SERIAL NUMBER)

1шт.

12

4639126

Seal

(SUB FOR TH112094)

1шт.

13

4191664

O-Ring

149.300 X 3.100 mm (SUB FOR T H111235)(MOTOR SERIAL NUMBER)

1шт.

14

40M7194

Snap Ring

(SUB FOR TH100461)(MOTOR SERIAL NUMBER)

1шт.

4038529

Snap Ring

(SUB FOR AT130840)(MOTOR SERIAL NUMBER ) (USE WITH 1012659 REPLACEMENT CASING)

1шт.

17

8051275

Piston

(SUB FOR TH111471 OR AT13 0837 ) (SUB FOR AT203603)

7шт.

20

L38718

Ball

6 mm

1шт.

21

4191667

Snap Ring

(SUB FOR TH111238)

1шт.

22

Shaft

( 8035539 NO LONGER AVAILABLE) (F URNISH 3081023 AND 2038877) (SUB F OR TH111473, AT219647 AND AT219590 )

1шт.

23

4198956

Pin Fastener

(SUB FOR T107766)

1шт.

24

4194362

Compression Spring

(SUB FOR TH111266)

1шт.

27

2022744

Rotor

(SUB FOR TH111111)

1шт.

29

4193062

Snap Ring

(SUB FOR TH111251)

1шт.

32

4193996

Spacer

(SUB FOR TH111260)

1шт.

33

3036456

Plate

(SUB FOR TH111153)

5шт.

34

3036457

Plate

(SUB FOR TH111154)

4шт.

36

3036455

Piston

(SUB FOR TH111152)

1шт.

37

4252401

O-Ring

(SUB FOR TH111261)

1шт.

38

4252400

Back-Up Ring

(SUB FOR TH111262)

1шт.

39

3036495

Disk Spring

(SUB FOR TH111156)

1шт.

41

4193063

O-Ring

229.400 X 3.100 mm (SUB FOR TH111252)

1шт.

42

T111819

O-Ring

14.800 X 2.400 mm

1шт.

45

9127390

Flow Control Hyd. Valve

(SUB FOR TH111603)(BRA KE) (USE IF AVAILABLE)

1шт.

9127390

Flow Control Hyd. Valve

(SUB FOR TH111603 ) (S UB FOR AT201170)(BRAKE)

1шт.

46

3036278

Plate

(SUB FOR TH111150)

1шт.

47

4193132

Bushing

(SUB FOR TH111253)

1шт.

48

19M8445

Screw

M16 X 45

5шт.

49

AT217345

Hydraulic Motor

(SUB FOR TH111595), (PROPE L), NLA, (ORDER 9100852EX)

1шт.

9100852EX

Hydraulic Motor Reman

(REMAN FOR AT217345)

1шт.
