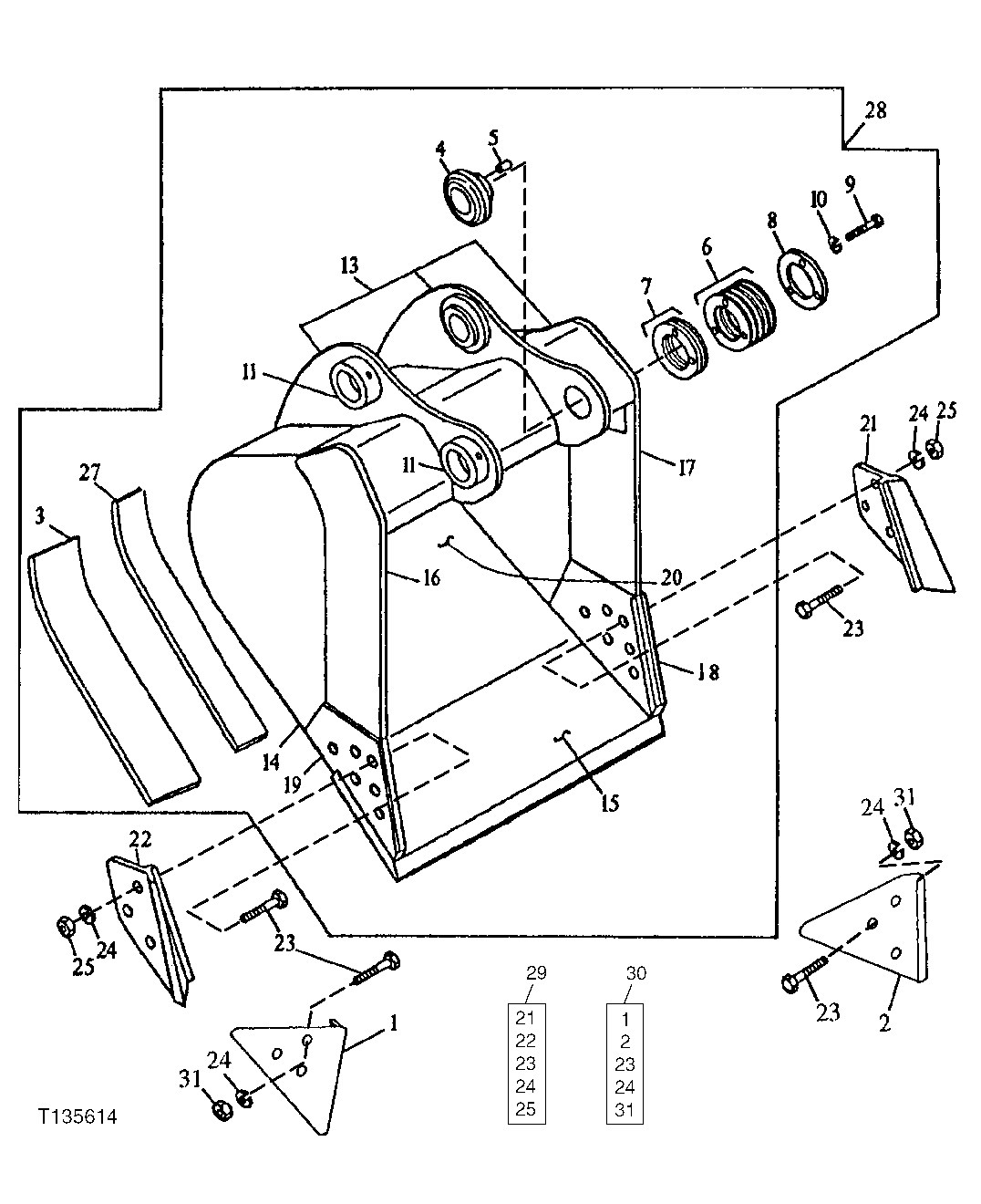

Запчасти John Deere 92DLC 191 - Heavy Duty High Capacity Bucket (Also Order Bucket Tooth Assemblies) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

20

600167

Moldboard

(36 INCH) (SEE FOOTNOTE)

1шт.

600542

Moldboard

(42 INCH) (SEE FOOTNOTE)

1шт.

600543

Moldboard

(48 INCH) (SEE FOOTNOTE)

1шт.

600971

Moldboard

(54 INCH) (SEE FOOTNOTE)

1шт.

21

Cutting Edge

(A) (LEFT SIDE CUTTER)

1шт.

22

Cutting Edge

(A) (RIGHT SIDE CUTTER)

1шт.

23

09H1771

Bolt

(A) (B) 7/8" X 3"

6шт.

24

12H245

Lock Washer

(A) (B) 7/8"

6шт.

25

14H1077

Nut

(A) 7/8"

6шт.

27

300291

Bar

(INNER WEAR - 36 OR 54 I N. BUCKET) (SEE FOOTNOTE)

2шт.

301024

Bar

(INNER WEAR - 42 OR 48 I N. BUCKET) (SEE FOOTNOTE)

2шт.

28

Excavator Bucket

(SUB AT332731)( AT163662 NLA) (30 INCH - 1.26 CU. YD.) (AVAILABLE T OOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332732)( AT167298 NLA) (36 INCH - 1.56 CU. YD.) (AVAILABLE T OOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332733)( AT163664 NLA) (42 INCH - 1.85 CU. YD.) (AVAILABLE T OOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332734)( AT163665 NLA) (48 INCH - 2.15 CU. YD.) (AVAILABLE T OOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB AT332735)( AT167299 NLA) (54 INCH - 2.45 CU. YD.) (AVAILABLE T OOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

29

AT131085

End Bit

WHOLEGOODS (SIDE CUTTER KIT) (INCLUDES PARTS MARKED (A))

1шт.

30

AT167876

Kit

WHOLEGOODS (EDGE PROTECTOR KI T) (INCLUDES PARTS MARKED (B))

1шт.

31

14H1044

Nut

7/8"

6шт.
