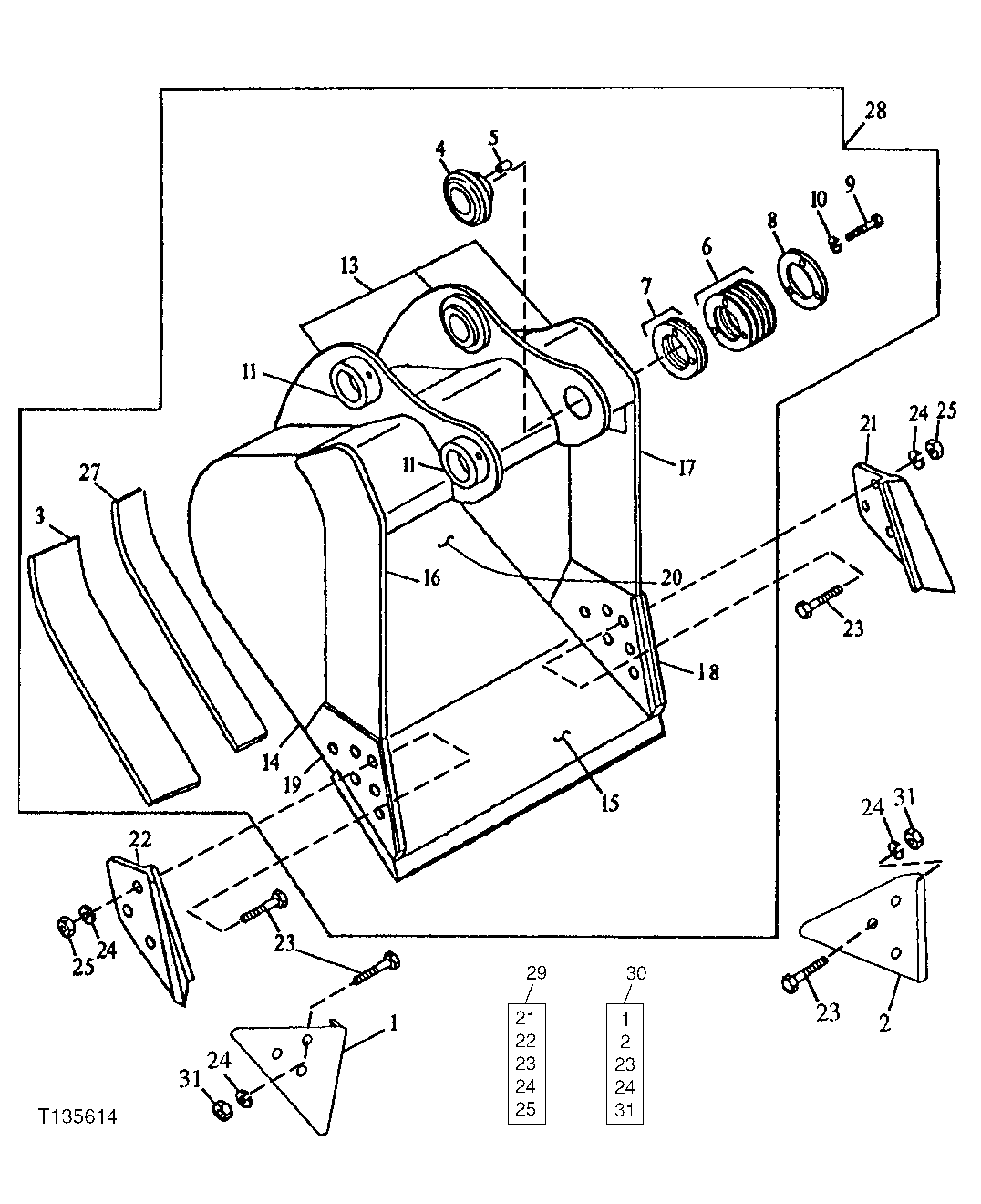

Запчасти John Deere 92DLC 190 - Heavy Duty High Capacity Bucket (Also Order Bucket Tooth Assemblies) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

1

Shroud

(B) (RIGHT EDGE PROTECTOR)

1шт.

2

Shroud

(B) (LEFT EDGE PROTECTOR)

1шт.

3

304559

Bar

(OUTER WEAR - 36 OR 54 IN CH BUCKET) (SEE FOOTNOTE)

2шт.

304579

Bar

(OUTER WEAR - 42 OR 48 IN CH BUCKET) (SEE FOOTNOTE)

2шт.

4

4143522

Bushing

(SUB FOR TH103234)

1шт.

5

4179110

Pin

12.012 X 25 mm (SUB FOR TH103520)

1шт.

6

4143524

Washer

(SUB FOR TH103235)(1 MM)

6шт.

7

4143525

Shim

(SUB FOR TH103236)(.5 MM)

2шт.

8

TH103237

Plate

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH103198

Bushing

101.600 X 127 X 49.276 mm

2шт.

13

C606071

Pivot

(BUCKET EAR BLANK ASSEMBLY) (SEE FOOTNOTE)

1шт.

14

306995

Plate

(RT AND LT SIDE - 36 AND 54 IN. BUCKETS) (SEE FOOTNOTE)

2шт.

304578

Plate

(RT AND LT SIDE - 42 AND 48 IN. BUCKETS) (SEE FOOTNOTE)

2шт.

15

AT131097

Dura-Max Cutting Edge

(CUT TO LENGTH) (72 INCHES)

1шт.

T154189

Dura-Max Cutting Edge

(CUT TO LENGTH) (42 INCHES)

1шт.

T154188

Dura-Max Cutting Edge

(CUT TO LENGTH) (36 INCHES)

1шт.

16

300283

Vertical Cutter

(UPPER RT SIDE CUTTER - 36 OR 54 IN. BUCKET) (SEE FOOTNOTE)

1шт.

301025

Vertical Cutter

(UPPER RT SIDE CUTTER - 42 OR 48 IN. BUCKET) (SEE FOOTNOTE)

1шт.

17

300284

Vertical Cutter

(UPPER LT SIDE CUTTER - 36 OR 54 IN. BUCKET) (SEE FOOTNOTE)

1шт.

301026

Vertical Cutter

(UPPER LT SIDE CUTTER - 42 OR 48 IN. BUCKET) (SEE FOOTNOTE)

1шт.

18

304568

Vertical Cutter

(LT SIDE CUTTER INSERT - 36 OR 54 IN. BUCKET) (SEE FOOTNOTE)

1шт.

304577

Vertical Cutter

(LT SIDE CUTTER INSERT - 42 OR 48 IN. BUCKET) (SEE FOOTNOTE)

1шт.

19

304567

Vertical Cutter

(RT SIDE CUTTER INSERT-36 OR 54 IN. BUCKET) (SEE FOOTNOTE)

1шт.
