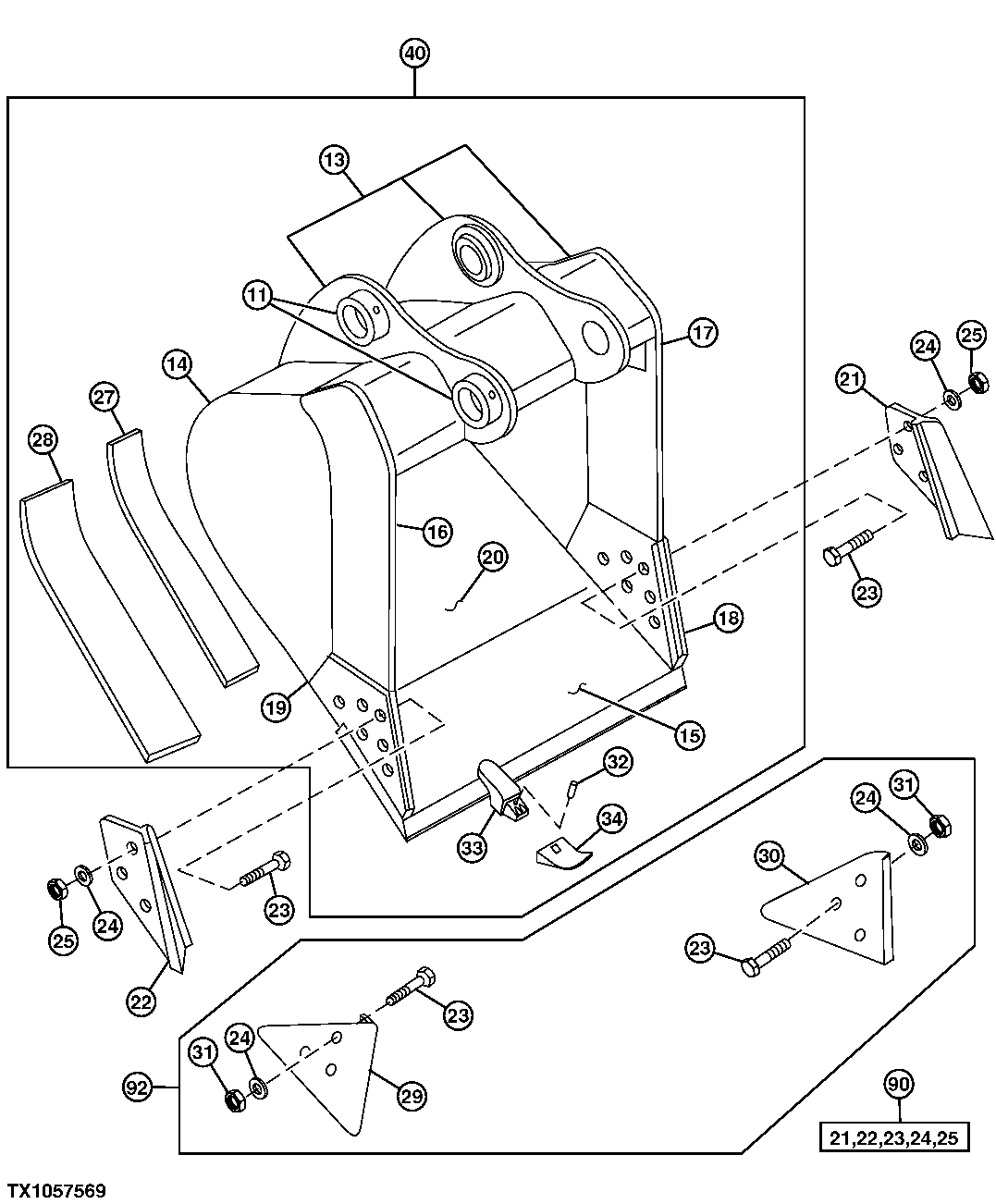

Запчасти John Deere 92DLC 188 - GENERAL PURPOSE HIGH CAPACITY BUCKET (48, 54, 60 INCH) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

11

TH103198

Bushing

101.600 X 127 X 49.276 mm

2шт.

13

C606071

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

307047

Plate

(F) (RH) (LH)

2шт.

15

AT131090

Dura-Max Cutting Edge

(CUT TO LENGTH)

1шт.

16

300483

Vertical Cutter

(F) (UPPER RH) (SIDE CUTTER)

1шт.

17

300484

Vertical Cutter

(F) (UPPER LH) (SIDE CUTTER)

1шт.

18

300482

Vertical Cutter

(F) (LH) ( CUTTER INSERT)

1шт.

19

300481

Vertical Cutter

(F) (RH) (CUTTER INSERT)

1шт.

304567

Vertical Cutter

(F) (RH) (CUTTER INSERT)

1шт.

20

600292

Moldboard

(F) (48 INCH BUCKET)

1шт.

600915

Moldboard

(F) (54 INCH BUCKET)

1шт.

600916

Moldboard

(F) (60 INCH BUCKET)

1шт.

21

Cutting Edge

(F) (LH) (SIDE CUTTER)

1шт.

22

Cutting Edge

(F) (RH) (SIDE CUTTER)

1шт.

23

09H1771

Bolt

(F) 7/8" X 3"

6шт.

24

12H245

Lock Washer

(F) 7/8"

6шт.

25

14H1077

Nut

(F) 7/8"

6шт.

27

300479

Bar

(F) (INNER WEAR)

2шт.

28

307048

Bar

(F) (OUTER WEAR)

2шт.

29

Shroud

(RH) (EDGE PROTECTOR)

1шт.

30

Shroud

(LH) (EDGE PROTECTOR)

1шт.

31

14H1044

Nut

(F) 7/8"

6шт.

32

TP400HD

Pin

ARшт.

33

T802X400

Bucket Tooth Adapter

ARшт.

34

TF400

Tooth

ARшт.

40

Excavator Bucket

(SUB FOR AT167293 ) ( AT339211 N LA)( AT332724 NLA) (48 INCH - 2.1 5 CUBIC YARD) (REQUIRES 5 TEETH)

1шт.

Excavator Bucket

(SUB FOR AT167294 ) ( AT339213 N LA)( AT332725 NLA) (54 INCH - 2.4 5 CUBIC YARD) (REQUIRES 6 TEETH)

1шт.

Excavator Bucket

(SUB FOR AT167295 ) (SUB AT3392 15)( AT332726 NLA) (60 INCH - 2. 74 CUBIC YARD) (REQUIRES 7 TEETH )

1шт.

90

AT131080

Kit

(WHOLEGOODS) (SIDE CUTTER KIT)

1шт.

92

AT167874

Kit

(WHOLEGOODS) (EDGE PROTECTOR)

1шт.
