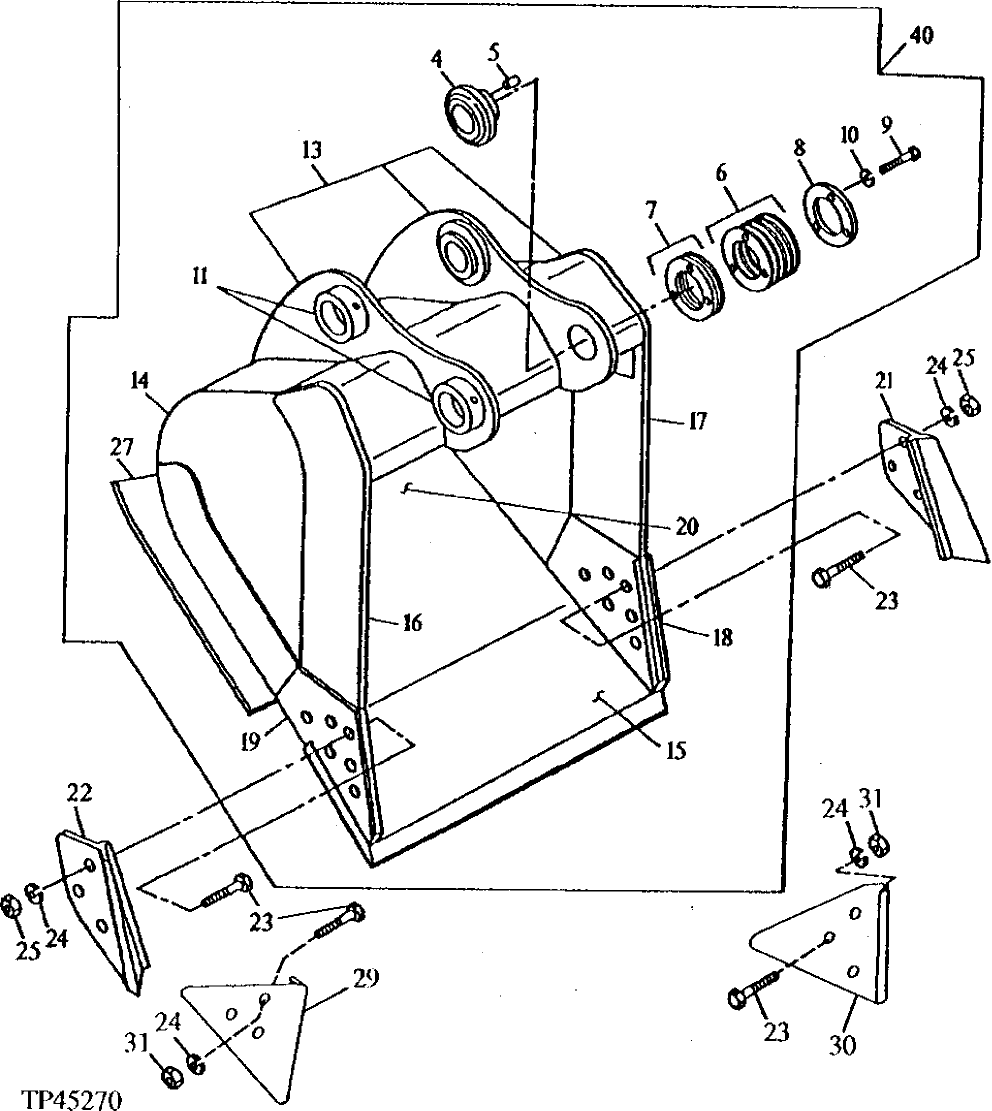

Запчасти John Deere 92DLC 183 - Bucket (Severe Duty Cast Lip) Also Order Bucket Tooth Assemblies) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

4

4143522

Bushing

(SUB FOR TH103234)

1шт.

5

4179110

Pin

12.012 X 25 mm (SUB FOR TH103520)

1шт.

6

4143524

Washer

(SUB FOR TH103235)(1 MM)

6шт.

7

4143525

Shim

(SUB FOR TH103236)(.5 MM)

2шт.

8

TH103237

Plate

1шт.

9

19H2706

Cap Screw

5/8" X 2"

3шт.

10

12H294

Lock Washer

5/8"

3шт.

11

TH103198

Bushing

101.600 X 127 X 49.276 mm

2шт.

13

C606071

Pivot

(F) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

305189

Plate

(F) (RIGHT AND LEFT SIDE)

2шт.

15

Cutting Edge

(F) (USE WITH 42 INCH BUCKET) (CUT TO LENGTH) ( AT131094 NLA)

1шт.

Cutting Edge

(F) (USE WITH 48 INCH BUCKET) (CUT TO LENGTH) ( AT131095 NLA)

1шт.

16

300283

Vertical Cutter

(F) (UPPER RIGHT SIDE CUTTER)

1шт.

17

300284

Vertical Cutter

(F) (UPPER LEFT SIDE CUTTER)

1шт.

18

305187

Vertical Cutter

(F) (LEFT SIDE CUTTER INSERT)

1шт.

19

305186

Vertical Cutter

(F) (RIGHT SIDE CUTTER INSERT)

1шт.

20

600209

Moldboard

(F) (42 INCH)

1шт.

600210

Moldboard

(F) (48 INCH)

1шт.

21

Cutting Edge

(K) (SUB AT131085)

1шт.

22

Cutting Edge

(K) (SUB AT131085)

1шт.

23

09H1771

Bolt

(K) 7/8" X 3" (K2)

6шт.

24

12H245

Lock Washer

(K) 7/8" (K2)

6шт.

25

14H1077

Nut

(K) 7/8"

6шт.

27

605164

Bar

(F) (DOUBLE BOTTOM WEA R BAR - 42 INCH BUCKET)

1шт.

605165

Bar

(F) (DOUBLE BOTTOM WEA R BAR - 48 INCH BUCKET)

1шт.

29

Shroud

(WEAR SHROUD) (SUB AT167876 (K2))

1шт.

30

Shroud

(WEAR SHROUD) (SUB AT167876 (K2))

1шт.

31

14H1044

Nut

7/8" (K2)

6шт.

40

Excavator Bucket

(SUB FOR AT131059)( AT163667 NLA) ( 42 INCH - 1.75 CUBIC YARD) (AVAILABL E TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.

Excavator Bucket

(SUB FOR AT131060)( AT163668 NLA) ( 48 INCH - 2.03 CUBIC YARD) (AVAILABL E TOOTH ASSEMBLIES ON SEPARATE PAGE)

1шт.
