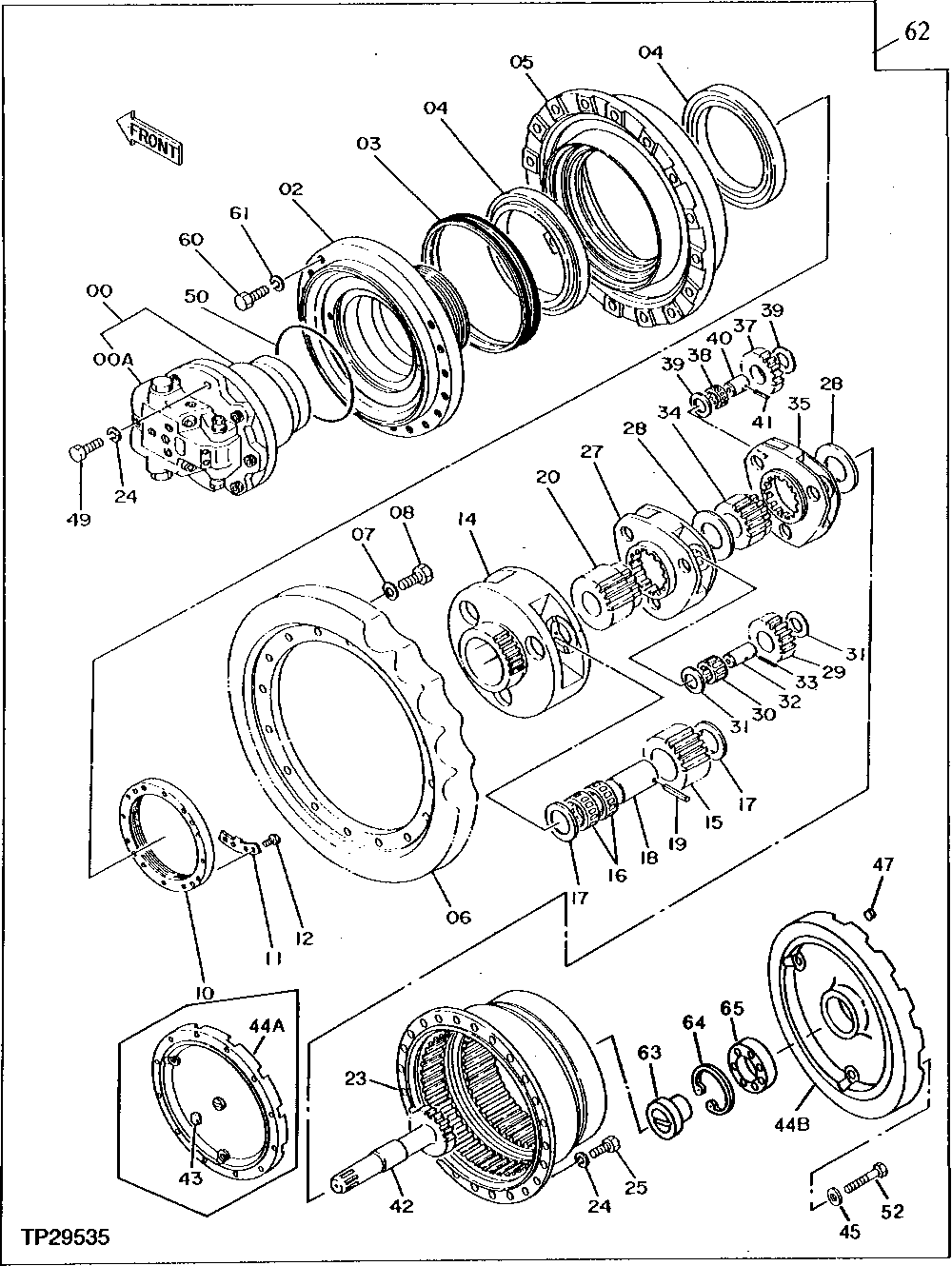

Запчасти John Deere 92DLC 8 - PROPEL DRIVE 0260 HYDRAULIC SYSTEM

0

AT217345

Hydraulic Motor

(SUB FOR TH111595), NLA, (ORDER 9100852EX

1шт.

9100852

Hydraulic Motor

NLA, (ORDER 9100852EX)

1шт.

9100852EX

Hydraulic Motor Reman

(REMAN FOR 9100852 OR AT217345)

1шт.

0A

9127390

Flow Control Hyd. Valve

(SUB FOR TH111603)(BRA KE) (USE IF AVAILABLE)

1шт.

9127390

Flow Control Hyd. Valve

(SUB FOR TH111603 ) (S UB FOR AT201170)(BRAKE)

1шт.

2

1010465

Housing

(SUB FOR TH111089)

1шт.

3

TH102282

Seal

1шт.

4

TH111245

Tapered Roller Bearing

2шт.

5

1010466

Drum

(SUB FOR TH111090)

1шт.

6

AT317663

Drive Sprocket

(SUB FOR TH111091 OR 1010467)

1шт.

7

12M7070

Lock Washer

20 mm

16шт.

8

19M8224

Cap Screw

M20 X 60

16шт.

10

3036256

Nut

(SUB FOR TH111143)

1шт.

11

4192974

Lock Plate

(SUB FOR TH111244)

1шт.

12

19M7872

Cap Screw

M12 X 25

2шт.

14

1010468

Planet Pinion Carrier

(SUB FOR TH111092)

1шт.

15

3036257

Gear

(SUB FOR TH111144)

3шт.

16

TH111246

Needle Bearing

6шт.

17

4219595

Thrust Washer

60 X 98 X 1.200 mm (SUB FOR AT131899 ) (SUB FOR AT131899)

6шт.

18

4192978

Pin Fastener

(SUB FOR TH111248)

3шт.

19

4192021

Spring Pin

(SUB FOR TH111240)

3шт.

20

3036258

Sun Gear

(SUB FOR TH111145)

1шт.

23

1010473

Ring Gear

(SUB FOR TH111093)

1шт.

24

12H294

Lock Washer

5/8"

26шт.

25

19M7489

Cap Screw

M16 X 45

24шт.

27

1010475

Planet Pinion Carrier

(SUB FOR TH111095)

1шт.

28

4401293

Spacer

(SUB FOR TH111249)

2шт.

29

3036264

Gear

(SUB FOR TH111146)

3шт.

30

TH111232

Cylindrical Roller Bearing

3шт.

31

4192982

Plate

(SUB FOR T107736)

6шт.

32

4144558

Bushing

(SUB FOR TH102298)

3шт.

33

34M7014

Spring Pin

5 X 60 mm (SUB FOR TH102300)

3шт.

34

3036266

Sun Gear

(SUB FOR TH111148)

1шт.

35

1010474

Planet Pinion Carrier

(SUB FOR TH111094)

1шт.

37

3036265

Gear

(SUB FOR TH111147)

3шт.

38

TH111202

Cylindrical Roller Bearing

3шт.

39

4192983

Plate

(SUB FOR TH111250)

6шт.

40

4192977

Bushing

(SUB FOR TH111247)

3шт.

41

4192020

Spring Pin

4 X 55 mm (SUB FOR TH111239)

3шт.

42

2023188

Shaft

(SUB FOR TH111116)

1шт.

43

Cap

(NO LONGER REQUIRED)

1шт.

44A

Cover

(SUB FOR AT130956)( TH112229, TH111129, AND AT130892 NO LONGER AVAILABLE) (SUB AT130954 , ALONG WITH AT131137, 4278168 AND 40M7228)

1шт.

44B

2031912

Cover

(SUB FOR AT130954)

1шт.

45

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

12шт.

47

94-2013

Fitting Plug

(SUB FOR AT128487 ) (SUB FOR TH100648)

3шт.

49

19M8350

Cap Screw

M16 X 85 (SUB FOR T107814)

2шт.

50

4193063

O-Ring

229.400 X 3.100 mm (SUB FOR TH111252)

1шт.

52

19M8011

Cap Screw

M12 X 30

12шт.

60

19M7892

Cap Screw

M20 X 80

34шт.

61

12M7070

Lock Washer

20 mm

34шт.

62

Drive

( TH111596 NO LONGER AVAILABLE)

1шт.

63

4278011

Pin Fastener

(SUB FOR AT130955 ) (SUB FOR AT131137)

1шт.

64

4278168

Bearing

(SUB FOR AT130956)

1шт.

65

40M7228

Snap Ring

(SUB FOR AT130957)

1шт.
