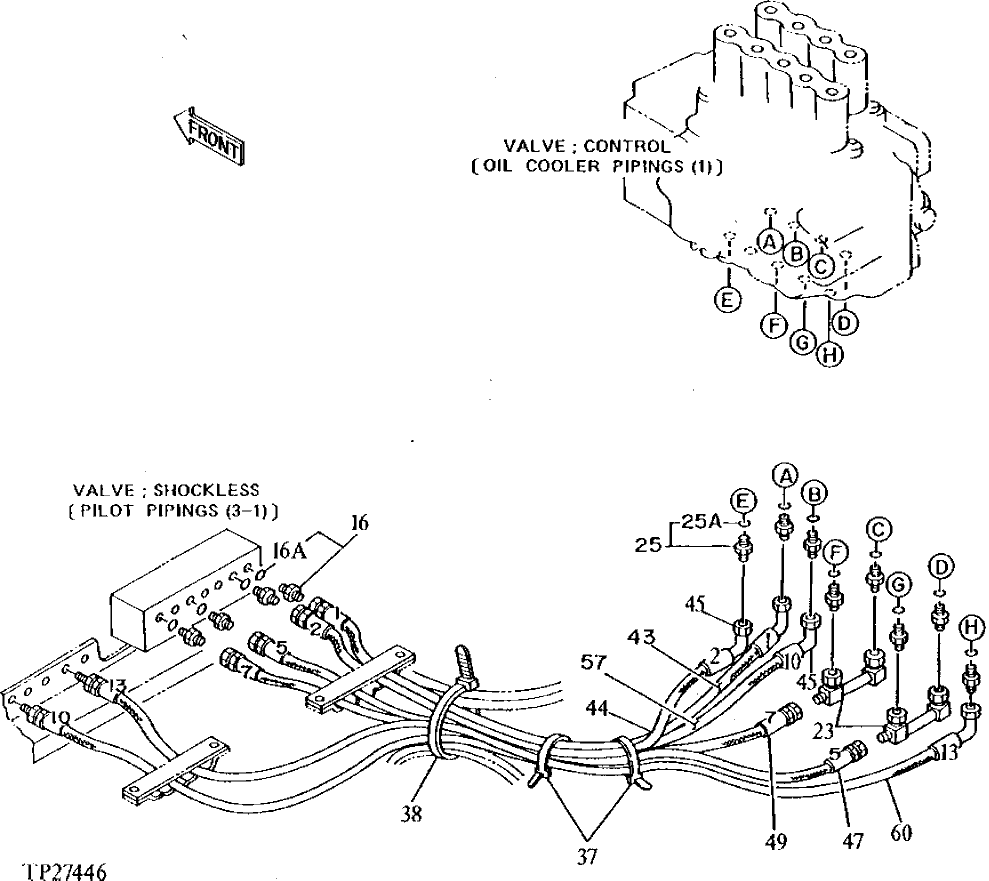

Запчасти John Deere 92DLC 171 - PILOT PLUMBING 2160 HYDRAULIC SYSTEM

16

4200466

Adapter Fitting

(SUB FOR TH108320)

4шт.

16A

CH11570

O-Ring

1шт.

23

8038370

Line

(SUB FOR TH109597)

2шт.

25

4200466

Adapter Fitting

(SUB FOR TH108320)

8шт.

25A

CH11570

O-Ring

1шт.

37

H77698

Tie Band

(SUB FOR T44946)

6шт.

38

H77698

Tie Band

(SUB FOR TH106422)

1шт.

43

AT72803

Hydraulic Hose

(SUB FOR TH111325)(1) (R IGHT PROPEL REVERSE LINE)

1шт.

44

AT48422

Hydraulic Hose

(SUB FOR TH111326)(2) (L EFT PROPEL REVERSE LINE)

1шт.

45

AE24616

Elbow Fitting

2шт.

47

AT48422

Hydraulic Hose

(SUB FOR TH111329)(5) (A RM CYLINDER ROD END LINE)

1шт.

49

AT48422

Hydraulic Hose

(SUB FOR TH111331)(7) (BO OM CYLINDER ROD END LINE)

1шт.

57

AE42000

Hydraulic Hose

(SUB FOR 4215663, ALONG WITH R27238, 14H832 AND AE24616) (BUCKET CYLINDER HEAD END LINE)

1шт.

14H832

Nut

(NOT ILLUSTRATED)

1шт.

R27238

Fitting

(NOT ILLUSTRATED)

1шт.

60

4215664

Hydraulic Hose

(SUB FOR TH111391)(SWIN G MOTOR LEFT SWING LINE)

1шт.
