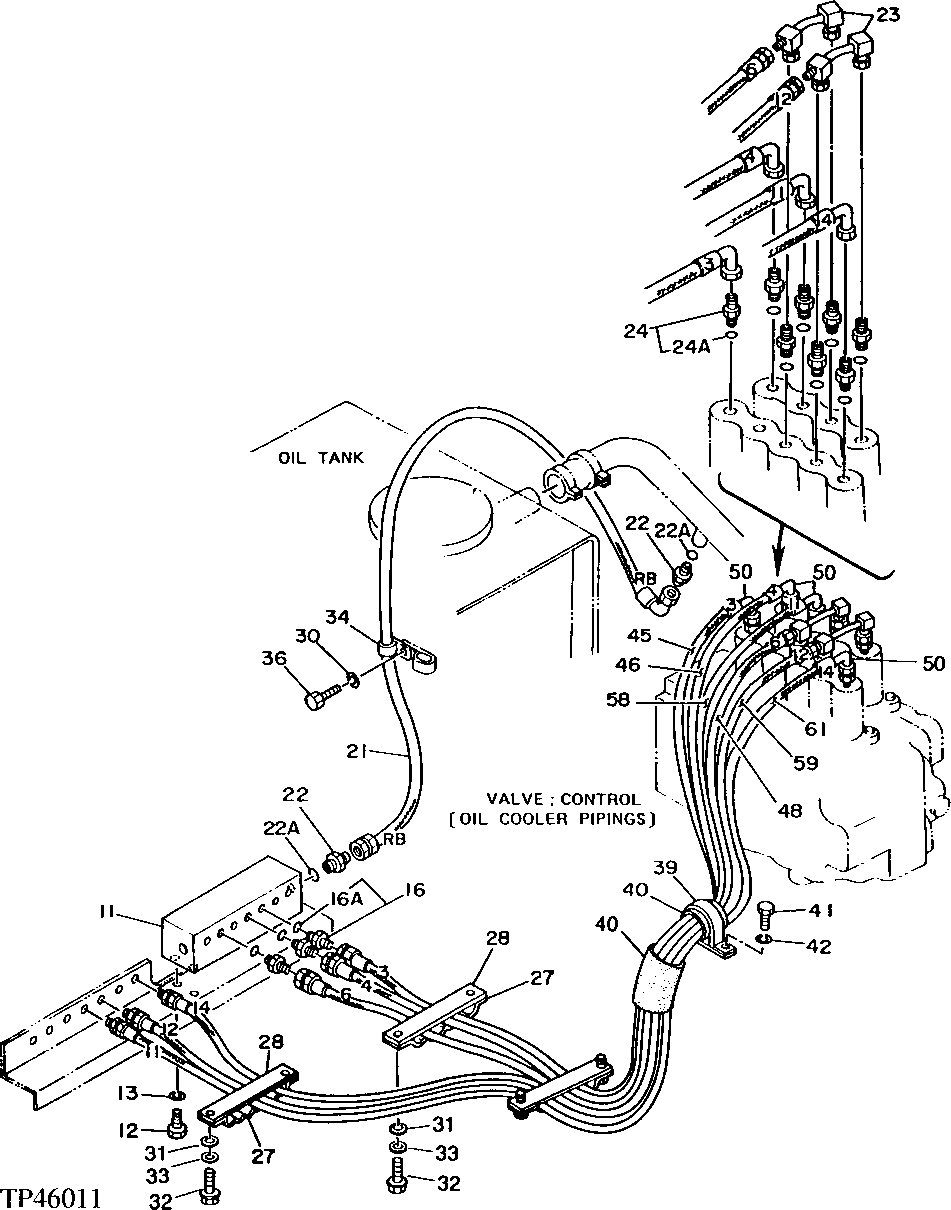

Запчасти John Deere 92DLC 170 - PILOT PLUMBING 2160 HYDRAULIC SYSTEM

11

4188552

Flow Control Hyd. Valve

(SUB FOR TH109593)(FLOW REGULATOR)

1шт.

12

19M7938

Cap Screw

4шт.

13

12M7066

Lock Washer

4шт.

16

4200466

Adapter Fitting

(SUB FOR TH108320)

3шт.

16A

CH11570

O-Ring

1шт.

21

4213803

Hydraulic Hose

(SUB FOR TH111373)(PB) (F LOW REGULATOR RETURN LINE)

1шт.

22

X8-10F5OX

Adapter Fitting

(SUB FOR TH101006)(SUB FOR TH110204, ALONG WITH U46489)

2шт.

22A

4506418

O-Ring

(SUB FOR U46489)

2шт.

23

8038370

Line

(SUB FOR TH109597)

2шт.

24

4202422

Adapter Fitting

(SUB FOR TH108440)

8шт.

24A

CH11570

O-Ring

1шт.

27

9727639

Hose Clamp

(SUB FOR TH108456)

3шт.

28

9727637

Plate

(SUB FOR TH108457)

3шт.

30

12M7066

Lock Washer

1шт.

31

24M7028

Washer

6шт.

32

19M7550

Cap Screw

6шт.

33

12M7066

Lock Washer

6шт.

34

4190262

Clip

(SUB FOR TH108596)

1шт.

36

19M3142

Cap Screw

1шт.

39

N198631

Clamp

(SUB FOR TH109598 OR 4190265)

1шт.

40

4219918

Isolator

(SUB FOR TH111416)

2шт.

41

19M7938

Cap Screw

1шт.

42

12M7066

Lock Washer

1шт.

45

AE42000

Hydraulic Hose

(3) (SUB FOR 4207910, ALONG WITH A E24616) (LEFT PROPEL FORWARD LINE)

1шт.

46

AE42000

Hydraulic Hose

(SUB FOR 4207911, ALONG WITH AE2 4616) (RIGHT PROPEL FORWARD LINE)

1шт.

48

AE42000

Hydraulic Hose

(SUB FOR 4207913)(6) (BOO M CYLINDER HEAD END LINE)

1шт.

50

AE24616

Elbow Fitting

4шт.

58

AT130683

Hydraulic Hose

(BUCKET CYLINDER ROD END LINE) (SUB FOR 4215 662 ) (ALSO ORDER R27283, 14H832 AND AE24616)

1шт.

14H832

Nut

1шт.

R27238

Fitting

1шт.

59

AT130683

Hydraulic Hose

(ARM CYLINDER HEAD END LINE) (SUB FOR 4 215661 ) (ALSO ORDER R27238 AND 14H832)

1шт.

14H832

Nut

1шт.

R27238

Fitting

1шт.

61

AT130683

Hydraulic Hose

(SWING MOTOR RIGHT SWING LINE) (SUB FOR 4215 665 ) (ALSO ORDER R27238, 14H832 AND AE24616)

1шт.

14H832

Nut

1шт.

R27238

Fitting

1шт.
