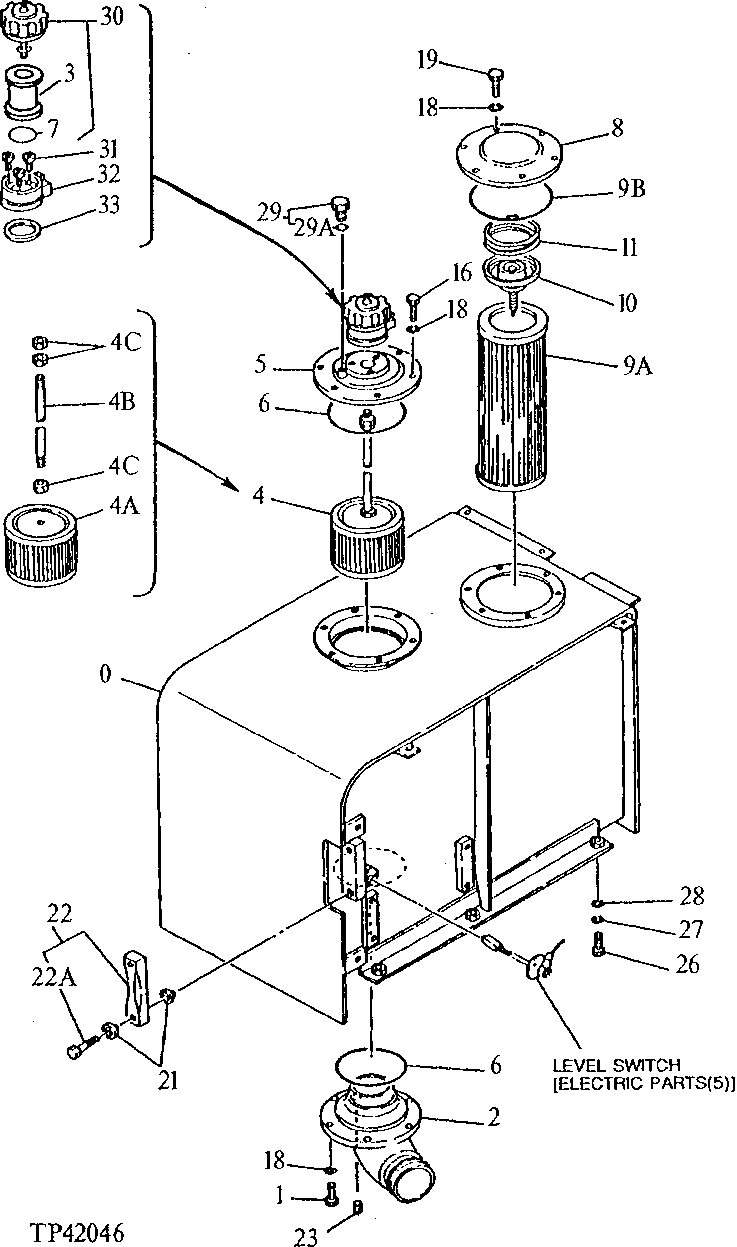

Запчасти John Deere 92DLC 166 - Hydraulic Oil Reservoir 2160 HYDRAULIC SYSTEM

0

5001963

Hydraulic Reservoir

(SUB FOR TH111423)

1шт.

1

M351028

Screw

M10 X 28 (SUB FOR TH111069)

6шт.

2

2023377

Line

(SUB FOR TH111120)

1шт.

3

4251384

Filter Element

(SUB FOR AT122928)

1шт.

4

Fitting

(NO LONGER AVAILABLE)

1шт.

4A

4210224

Strainer

(SUB FOR TH110133)

1шт.

AT190750

Strainer

(ARCTIC) (32 MESH FOR ARCTIC CONDITIONS)

1шт.

4B

4211107

Rod

(SUB FOR TH110134)

1шт.

4C

14M7274

Nut

M10

3шт.

5

8039818

Cover

(SUB FOR TH109513)

1шт.

6

TH100679

O-Ring

159.300 X 5.700 mm

2шт.

7

T162516

O-Ring

(SUB FOR TH111019, THIS APPLICATION)

1шт.

8

4204057

Cover

(SUB FOR TH111304)

1шт.

9A

AT147343

Filter Element

(SUB FOR 4206705, ALONG WITH T110444)

1шт.

AT162766

Filter Element

(CLEAN-UP FITLER) (SHORT TERM USE - A PPROXIMATELY THREE HOURS) (IDLE SPEED)

1шт.

9B

T110444

O-Ring

189.300 X 5.700 mm

1шт.

10

4180414

Flow Control Hyd. Valve

(SUB FOR TH109511)

1шт.

11

4226549

Extension Spring

(SUB FOR TH109512)

1шт.

16

19M8784

Screw

M10 X 20 (SUB FOR TH101355, 19M8356)

6шт.

18

12M7066

Lock Washer

10 mm

18шт.

19

19M8324

Cap Screw

M10 X 16

6шт.

21

449558

Washer

(SUB FOR TH100675)

4шт.

22

8053499

Level Gauge

(SUB FOR TH108293)

1шт.

22A

4100967

Bolt

(SUB FOR TH101894)

2шт.

23

942011

Fitting Plug

(SUB FOR 94-2011 AND TH100434)

1шт.

26

19M7489

Cap Screw

M16 X 45

6шт.

27

12H294

Lock Washer

5/8"

6шт.

28

4114405

Washer

17 X 32 X 4.500 mm (SUB FOR TH101105)

6шт.

29

4209653

Fitting Plug

(SUB FOR TH109514)

1шт.

29A

4506418

O-Ring

17.800 X 2.400 mm (SUB FOR U46489)

1шт.

30

4326285

Cap

(SUB FOR TH111018 ) (SUB FOR AT167080)

1шт.

31

19M8146

Screw

M5 X 16

3шт.

32

4222875

Base

(SUB FOR TH111021)

1шт.

33

4222876

Packing

(SUB FOR TH111022)

1шт.
