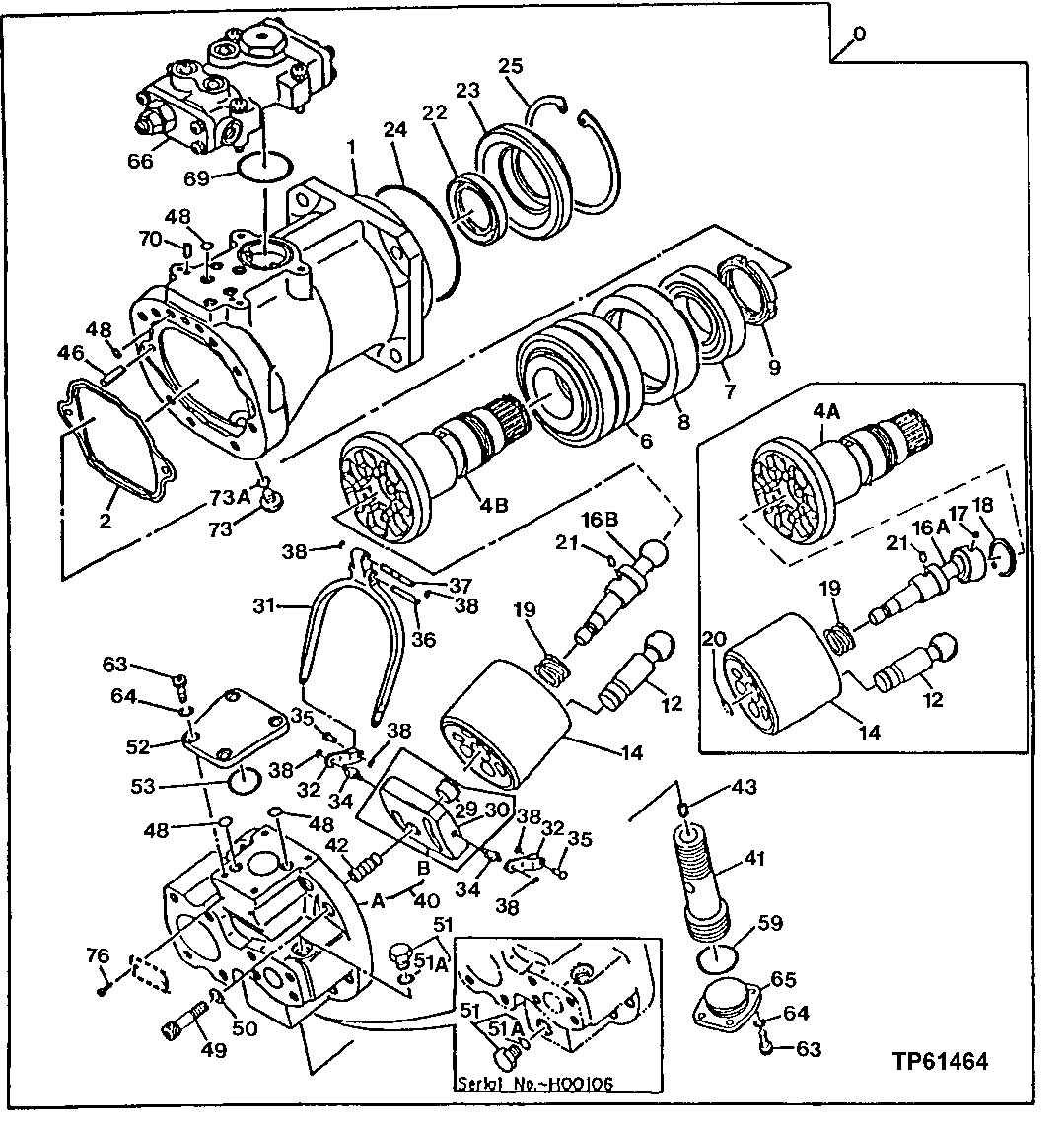

Запчасти John Deere 92DLC 163 - Main Hydraulic Pump 2160 HYDRAULIC SYSTEM

0

9077554

Pump

(ORDER AT217344)NLA

1шт.

AT217344

Hydraulic Pump Reman

(REMAN FOR 9077554)

1шт.

1

Housing

(SUB FOR TH111088 ) (ALSO OR DER AT250202)( TH112239 NLA)

1шт.

2

8068521

Gasket

(SUB FOR TH112240, AT250202)

1шт.

4A

2038877

Shaft

(SUB FOR TH111112, AT219590, AT219647)

1шт.

4B

2038877

Shaft

(SUB FOR AT219590)

1шт.

6

TH111233

Tapered Roller Bearing

1шт.

7

JD37194

Tapered Roller Bearing

(SUB FOR TH111352)

1шт.

8

3035965

Spacer

(SUB FOR TH111140)

1шт.

9

4191665

Nut

(SUB FOR TH111236)

1шт.

12

8051275

Piston

(SUB FOR TH111471 OR AT13 0837 ) (SUB FOR AT203603)

7шт.

14

2022744

Rotor

(SUB FOR TH111111)

1шт.

16A

Shaft

( 8035539 NLA) (SUB 3081023 AND 2038877 ) (SUB FOR TH111473, AT219647 AND AT219590)

1шт.

16B

3081023

Shaft

(SUB FOR AT219647)

1шт.

17

L38718

Ball

6 mm

1шт.

18

4191667

Snap Ring

(SUB FOR TH111238)

1шт.

19

4194362

Compression Spring

(SUB FOR TH111266)

1шт.

20

4193062

Snap Ring

(SUB FOR TH111251)

1шт.

21

4198956

Pin Fastener

5 X 10 mm (SUB FOR T107766)

1шт.

22

4639126

Seal

(SUB FOR TH112094)( TH111237 NLA)

1шт.

4639126

Seal

(SUB FOR TH112094)

1шт.

23

3035966

Cover

(SUB FOR TH111141)

1шт.

24

4191664

O-Ring

(SUB FOR TH111235)

1шт.

25

40M7194

Snap Ring

(SUB FOR TH100461)

1шт.

29

4193132

Bushing

(SUB FOR TH111253)

1шт.

30

9749142

Valve

(SUB FOR AT168530 OR AT250274)

1шт.

31

3039569

Link

(SUB FOR TH111194)

1шт.

32

9724756

Lever

(SUB FOR TH109873)

2шт.

34

4179179

Dowel Pin

(SUB FOR TH109874)

2шт.

35

4179177

Dowel Pin

(SUB FOR TH109875)

2шт.

36

4200227

Dowel Pin

(SUB FOR TH109878)

1шт.

37

4179176

Dowel Pin

6 X 44 mm (SUB FOR TH109876)

1шт.

38

CH17951

Ring

(SUB FOR TH109877)

6шт.

40

End

(SUB 1011956, 9749142 AN D 4216295)( TH111516 NLA)

1шт.

End

(SUB 1011956 AND 9749142)( 8041516 NLA)

1шт.

40A

1011956

Cylinder Head

(SUB FOR AT164668)

1шт.

40B

Valve

( AT200967 NLA)

1шт.

41

3106174

Piston

(SUB FOR 3036326 ) (ALSO ORDER 4641714 AND 4337812)

1шт.

4641714

Pin Fastener

1шт.

4337812

Set Screw

1шт.

42

4193245

Pin Fastener

(SUB FOR TH111254)

1шт.

43

4179838

Set Screw

(SUB FOR TH109881)

1шт.

46

34M7061

Spring Pin

8 X 20 mm

2шт.

48

CH11560

Packing

(SUB FOR TH109883, 4180349)

10шт.

49

19M8341

Screw

M12 X 45

8шт.

50

12M7058

Lock Washer

12 mm (SUB FOR TH102529 ) (SUB FOR 12M6138)

8шт.

51

AT318013

Drain Plug

(SUB FOR 4093624 ) (SUB FOR TH102536)

2шт.

AT318013

Drain Plug

(SUB FOR TH102536)

1шт.

51A

M800650

Packing

1шт.

52

4204862

Cover

(SUB FOR 4093624 ) (SUB FOR TH111306)

1шт.

53

955020

O-Ring

(SUB FOR TH111628, 4006683)

1шт.

59

984623

O-Ring

(SUB FOR TH102592)

1шт.

63

19M8446

Screw

M8 X 20

8шт.

64

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

8шт.

65

4215272

Cover

(SUB FOR TH111386)

1шт.

4216295

Stop

(SUB FOR TH111927)

1шт.

66

9078610

Regulator

(SUB FOR TH111623)

1шт.

69

CH17260

Packing

1шт.

70

34M3845

Spring Pin

4 X 10 mm (SUB FOR TH109888)

2шт.

73

15M7036

Drain Plug

(SUB FOR TH101813, 42176 53, TH109285 OR 0309805)

1шт.

73A

CH11570

O-Ring

(USE WITH 4092534 OR TH109285)

1шт.

CH10569

Packing

(USE WITH 4217653)

1шт.

76

37H99

Screw

0.100" X 1/4"

2шт.
