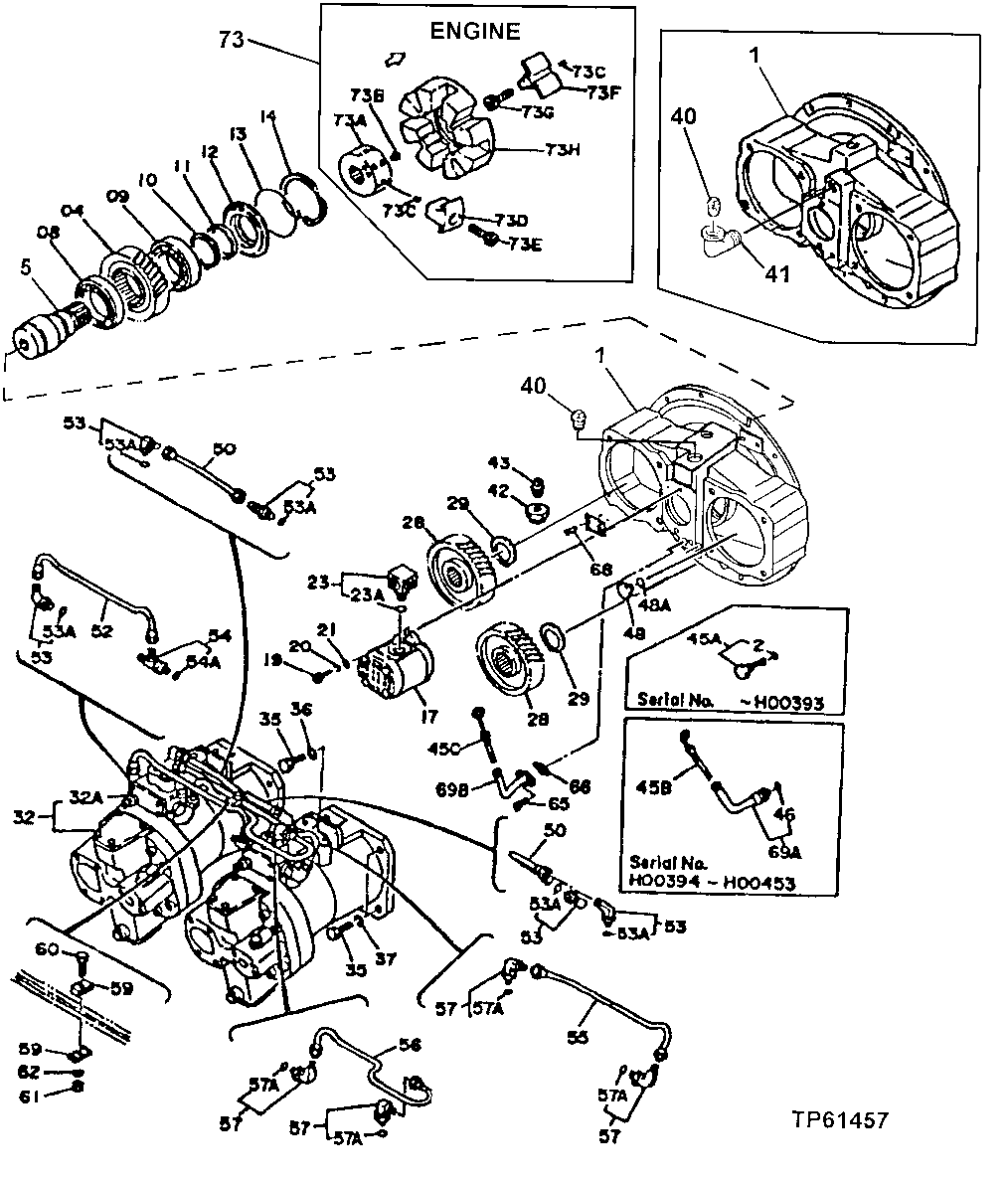

Запчасти John Deere 92DLC 162 - Main Hydraulic Pump 2160 HYDRAULIC SYSTEM

50

4192946

Oil Line

(SUB FOR TH111242)

2шт.

52

4192947

Oil Line

(SUB FOR TH111243)

1шт.

53

4293950

Fitting

(SUB FOR TH109468 OR AT160584)

5шт.

53A

M800650

Packing

1шт.

54

4203485

Fitting

(SUB FOR TH109466)

1шт.

54A

M800650

Packing

1шт.

55

3036249

Oil Line

(SUB FOR TH111142)

1шт.

56

3036486

Oil Line

(SUB FOR TH111155)

1шт.

57

4118499

Elbow Fitting

(SUB FOR TH101821)

4шт.

57A

M800650

Packing

1шт.

59

4179843

Clamp

(SUB FOR TH109471)

2шт.

60

19M7377

Cap Screw

M8 X 28

1шт.

61

14M7273

Nut

M8

1шт.

62

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

1шт.

65

19M7932

Cap Screw

M8 X 16

2шт.

66

9742779

Gasket

(SUB FOR TH112091 ) (SUB FOR AT214401)

1шт.

68

37H99

Screw

0.100" X 1/4"

2шт.

69A

Level Gauge

( 4236328 NO LONGER AVAILABLE) (SUB 42 36199, ALONG WITH 4236200 AND CH11570)

1шт.

69B

4242262

Oil Tube

(SUB FOR TH112089)

1шт.

73

4191663

Coupling

(SUB FOR TH111234)

1шт.

73A

Hub

( TH111400 NO LONGER AVAILABLE)

1шт.

73B

22M7137

Set Screw

M16 X 16

2шт.

73C

34M7117

Spring Pin

5 X 10 mm

12шт.

73D

4216947

Insert

(SUB FOR TH111402)

4шт.

73E

4216949

Screw

(SUB FOR TH111404)

4шт.

73F

Insert

( TH111401 NO LONGER AVAILABLE)

4шт.

73G

4216948

Screw

(SUB FOR TH111403)

4шт.

73H

4216944

Coupling

1шт.
