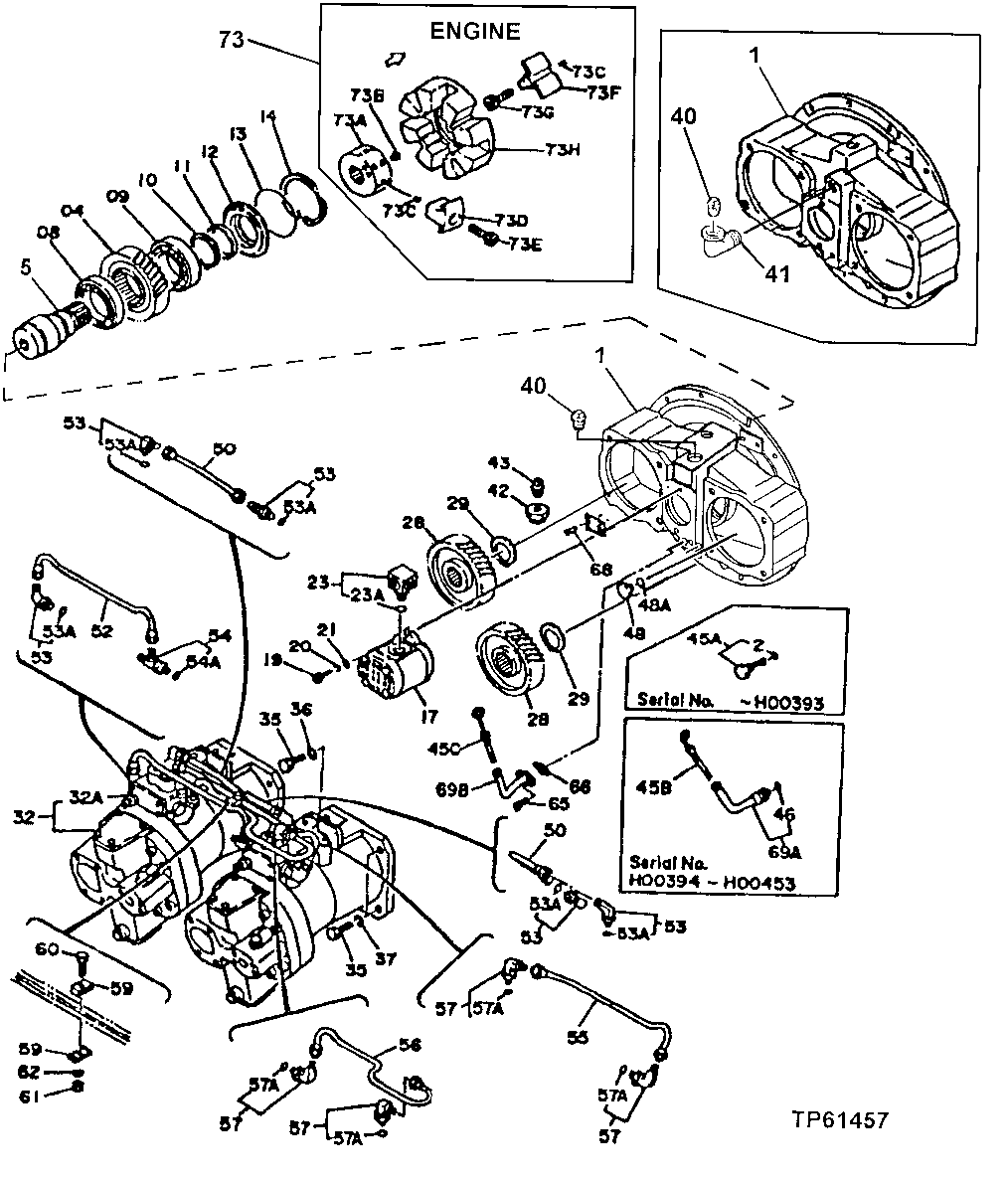

Запчасти John Deere 92DLC 161 - Main Hydraulic Pump 2160 HYDRAULIC SYSTEM

1

1026611

Housing

(ALSO ORDER 9742779, 4242263, 42 42262 AND (2) 19M7932)( TH111087 OR TH112092 NO LONGER AVAILABLE)

1шт.

1026611

Housing

(SUB FOR TH112092 ) (SUB FOR AT200957)

1шт.

2

CH11570

O-Ring

1шт.

4

3035852

Gear

(SUB FOR TH111138)

1шт.

5

3081085

Pinion Shaft

(SUB FOR AT219648)(SUB FOR 3038090 , ALONG WITH M804206, AND 4395457)

1шт.

8

M804206

Bearing

(SUB FOR TH101792 ) (SUB FOR AT250102)

1шт.

9

4720025

Ball Bearing

(SUB FOR TH108029, OR JD9320THIS APPLI CATION ) (SUB FOR AT250103 AND 4395457)

1шт.

10

40M7120

Snap Ring

(SUB FOR TH106792)

1шт.

11

TH109453

Seal

1шт.

12

3033593

Cover

(SUB FOR TH109454)

1шт.

13

AT264339

O-Ring

(SUB FOR TH109455, TH100122)

1шт.

14

40M5463

Snap Ring

(SUB FOR TH109456 AND 40M7178)

1шт.

17

9217993

Pump

(SUB FOR TH109457 AND 4181700)

1шт.

19

19M8337

Screw

M10 X 30 (SUB FOR TH105473)

2шт.

20

12M7135

Lock Washer

10 mm (SUB FOR 12M6791)

2шт.

21

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

23

4191974

Adapter Fitting

(SUB FOR TH109459)

1шт.

23A

4506418

O-Ring

(SUB FOR U46489)

1шт.

28

T200649

Helical Gear

(SUB FOR TH111139 OR 3035853)

2шт.

29

40M7166

Snap Ring

(SUB FOR TH101799)

2шт.

32

9077554

Pump

(ORDER AT217344)NLA

2шт.

AT217344

Hydraulic Pump Reman

(REMAN FOR 9077554)

2шт.

32A

9078610

Regulator

(SUB FOR TH111623)

1шт.

35

19M7489

Cap Screw

M16 X 45 (SUB FOR TH111 064 ) (SUB FOR 19M7396)

8шт.

36

4126090

Sealing Washer

(SUB FOR TH109463)

4шт.

37

12H294

Lock Washer

5/8"

4шт.

41

15H621

Elbow Fitting

3/4" (SUB FOR TH101810)

1шт.

42

J728684

Reducer

(SUB FOR TH101811)

1шт.

43

4511984

Pipe Plug

(SUB FOR TH101812)

1шт.

45A

Level Gauge

(SUB 4236198, ALONG WITH 42 36200, CH11570 AND 4236199)

1шт.

45B

Level Gauge

( 4236198 NLA), (SUB FOR TH111913)

1шт.

45C

4721548

Gauge

(SUB FOR TH112088 AND 4242263)

1шт.

46

CH11570

O-Ring

1шт.

48

15M7036

Drain Plug

(SUB FOR 4092534, 4217653, TH10928 5 OR 0309805 ) (ALSO ORDER CH11570)

1шт.

48A

CH11570

O-Ring

(USE WITH 4092534 OR TH109285 OR 4217653)

1шт.
