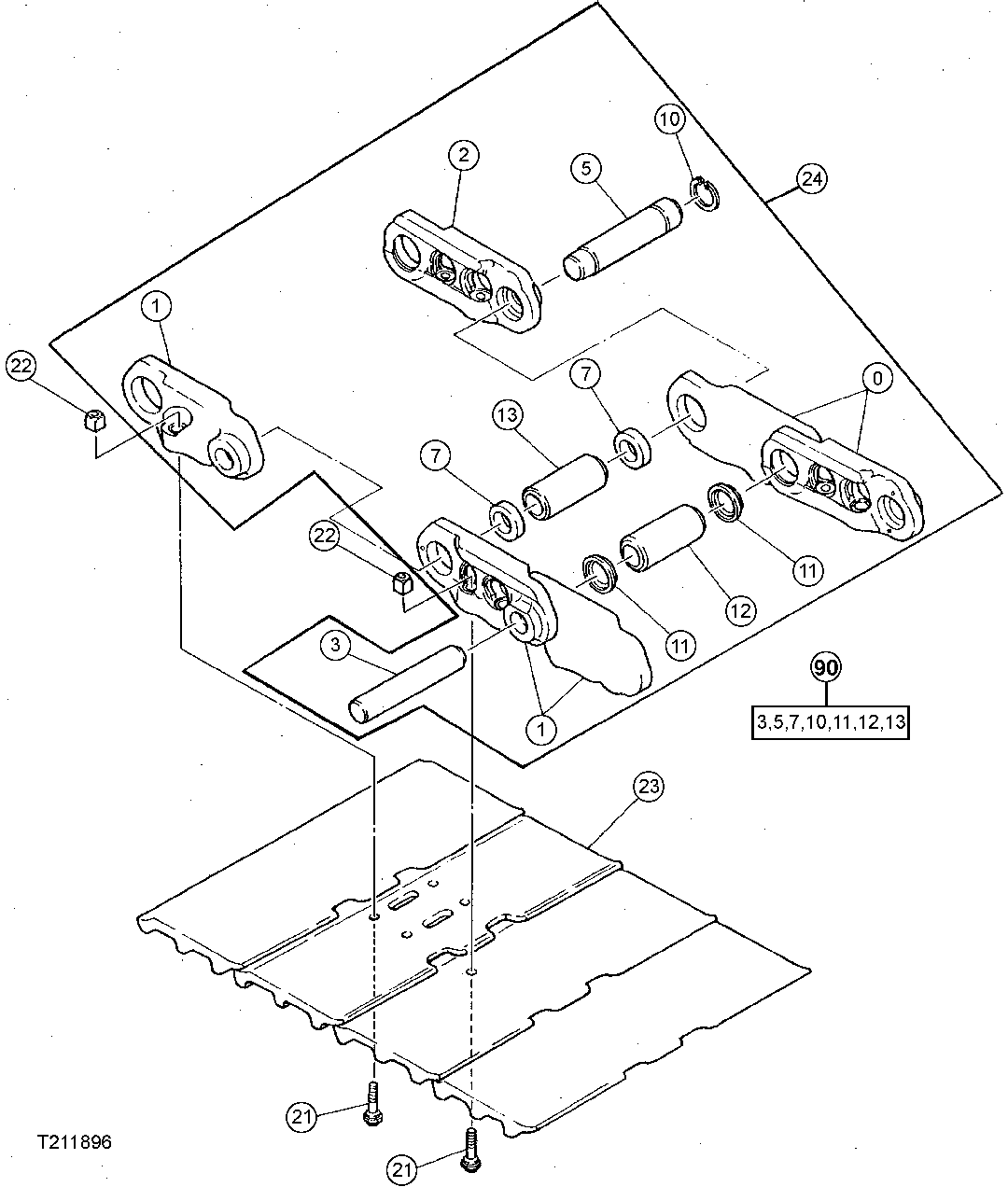

Запчасти John Deere 92DLC 7 - Track Link 0130 TRACKS SYSTEMS

0

AT159075

Link

(SUB FOR TH111099 ) (A LSO ORDER (2) 3060205)

49шт.

AT159075

Link

49шт.

1

AT159076

Link

(SUB FOR TH111100 ) (A LSO ORDER (2) 3060205)

50шт.

AT159076

Link

50шт.

2

AT159077

Link

(SUB FOR 4186652 OR TH111226 ) (ALSO ORDER A T159080, AT159076, AT159078 AND (4) 3060205)

1шт.

AT159077

Link

1шт.

3

AT130913

Pin Fastener

(K) 44.450 X 245 mm (SUB FOR TH103 166)(QUANTITY OF 45 PROVIDED IN KIT)

49шт.

5

4186651

Pin Fastener

(SUB FOR TH111225)

1шт.

AT159078

Master Track Pin

(K) (NON HEADED PIN)

1шт.

7

Bushing

(SUB AT159079)( TH111282 NLA)

2шт.

AT159079

Bushing

(K) 45.100 X 66.700 X 13.500 mm

2шт.

10

T210813

Snap Ring

(K) (SUB FOR TH111227)

1шт.

11

FFSB112367

Seal

(K) (SUB FOR TH111278 OR 4350562 ) (SUB FO R AT171645)(QUANTITY OF 92 PROVIDED IN KIT)

98шт.

12

TH103167

Bushing

(K) 45.250 X 66.650 X 158 mm ( QUANTITY OF 45 PROVIDED IN KIT)

49шт.

13

AT159080

Bushing

45.150 X 66.550 X 148.800 mm (SUB FOR 4143723 OR TH103169 ) (ALSO ORDER AT159 076, AT159077, AT159078 AND (4) 3060205 )

1шт.

AT159080

Bushing

(K) 45.150 X 66.550 X 148.800 mm

1шт.

21

4143721

Bolt

(SUB FOR TH103173)

200шт.

22

4067232

Nut

(SUB FOR TH102376)(USE W ITH 9071587 TRACK CHAIN)

200шт.

3060205

Nut

(SUB FOR T144338)(USE W ITH 9180909 TRACK CHAIN)

200шт.

23

2017537

Open Center 3 Bar Shoe

(SUB FOR TH103174)(600MM - 24 INCH)

50шт.

2016578

Open Center 3 Bar Shoe

(SUB FOR TH103265)(800MM - 31 INCH)

50шт.

24

AT317804

Track Chain W/O Shoes

(SUB FOR 9071587, TH111601, AT186168 O R 9180909 ) (ALSO ORDER (200) 3060205)

1шт.

AT317804

Track Chain W/O Shoes

(SUB FOR AT159074, AT186168 OR 9180909)

1шт.

90

AT187186

Pin & Bushing Kit

(WHOLE GOODS) (CONTAINS PARTS MARKED (K)) (FOR 892D-LC 50 LINK CHAIN) (AL SO ORDER (4) TH103167, (4) AT130913 A ND (6) FFSB112367 ) (SUB FOR AT170093 )

1шт.
