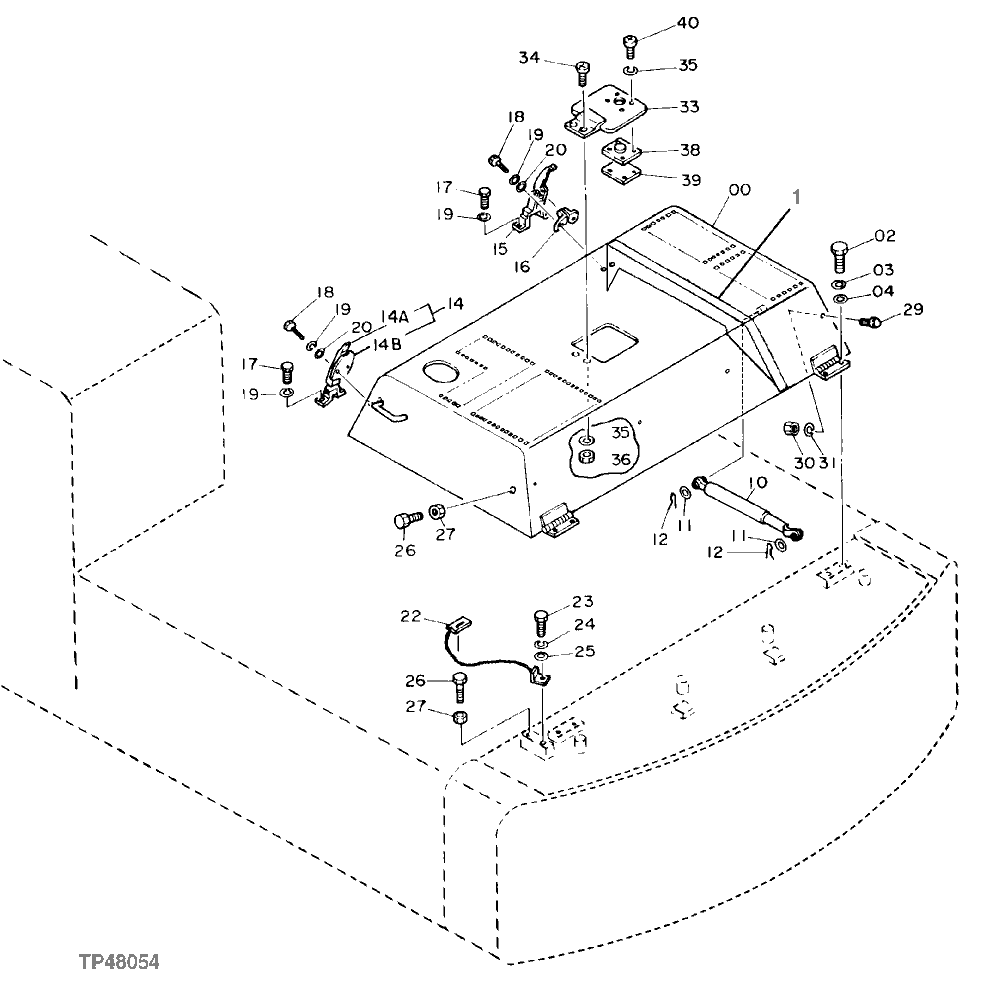

Запчасти John Deere 92DLC 152 - ENGINE COMPARTMENT COVER 1910 Hood Or Engine Enclosure

0

5002157

Hood

(SUB FOR TH111428)

1шт.

1

Foam Pad

AT177630 NO LONGER AVAILABLE FOR SERVICE

1шт.

2

19M8765

Screw

M12 X 28 (SUB FOR AT131539 OR TH101717 ) (SUB FOR 19M3204)

4шт.

3

12H301

Lock Washer

1/2"

4шт.

4

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

10

4194116

Support

(SUB FOR TH109693)GAS FILLED CYLINDER

1шт.

11

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12

H132922

Cotter Pin

(SUB FOR L1587C)

2шт.

14

4361455

Catch

(SUB FOR TH108769)

1шт.

AT194969

Key

(SUB FOR AT147803)(H800) (NOT ILLUSTRATED)

1шт.

14A

Catch

(SUB TH108769)

1шт.

14B

3021131

Anchor

(SUB FOR TH102247)

1шт.

15

4361455

Catch

(SUB FOR TH101264, 322831)

1шт.

16

4119658

Anchor

(SUB FOR TH101265)

1шт.

17

19M7932

Cap Screw

M8 X 16

4шт.

18

21M7397

Screw

M8 X 25

4шт.

19

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

8шт.

20

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

22

9725452

Lock

(SUB FOR TH108765)

1шт.

23

19M7872

Cap Screw

M12 X 25

1шт.

24

12H301

Lock Washer

1/2"

1шт.

25

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

26

19M7493

Cap Screw

M12 X 40

2шт.

27

14M7275

Nut

M12

2шт.

29

4147883

Stop

(SUB FOR TH101122)

4шт.

30

14M7444

Nut

M10 (SUB FOR TH104196 AND J952010)

4шт.

31

12M7066

Lock Washer

10 mm

4шт.

33

8039789

Cover

(SUB FOR TH109694)

1шт.

34

21M7278

Screw

M5 X 10

2шт.

35

12M7064

Lock Washer

5 mm

6шт.

36

14M7297

Nut

M5

2шт.

38

4361601

Lock

(SUB FOR TH108982 ) (SUB F OR AT176636)(USES H800 KEY)

1шт.

AT194969

Key

(SUB FOR AT147803)(H800) (NOT ILLUSTRATED)

1шт.

39

4209492

Plate

(SUB FOR TH109695)

1шт.

40

21M7022

Screw

M5 X 20

4шт.
