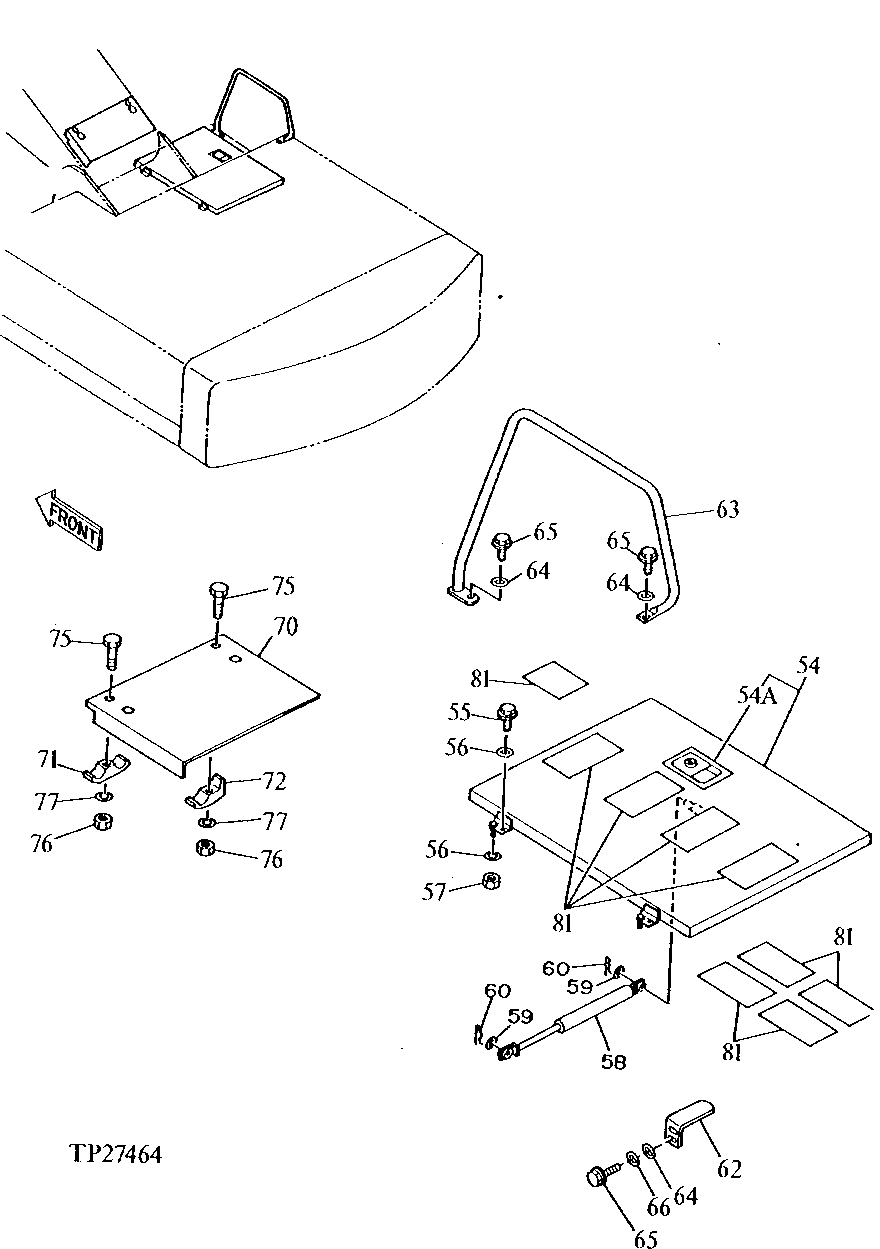

Запчасти John Deere 92DLC 151 - ENGINE COMPARTMENT SERVICE DOORS 1910 Hood Or Engine Enclosure

54

6009244

Cover

(SUB FOR TH111434)

1шт.

54A

4361763

Lock

(SUB FOR TH110898 OR AT11 5741 ) (SUB FOR AT214010)

1шт.

55

19M8761

Screw

M10 X 22 (SUB FOR AT127980 OR TH100456)

2шт.

56

12M7066

Lock Washer

10 mm

4шт.

57

14M7274

Nut

M10

2шт.

58

4188366

Absorber

(SUB FOR TH109684)

1шт.

59

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

60

H132922

Cotter Pin

(SUB FOR L1587C)

2шт.

62

4194836

Stop

(SUB FOR TH109683)

1шт.

63

7019810

Support

(SUB FOR TH111470)

1шт.

64

19M7872

Cap Screw

M12 X 25

4шт.

65

12H301

Lock Washer

1/2"

4шт.

66

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

70

8040995

Cover

(SUB FOR TH111515)

1шт.

71

4189860

Clamp

(SUB FOR TH108314)

1шт.

72

4190127

Clamp

(SUB FOR TH108313)

1шт.

75

19M7364

Cap Screw

M12 X 80

2шт.

76

14M7275

Nut

M12

2шт.

77

12H301

Lock Washer

1/2"

2шт.

81

H21259

Mat

9шт.
