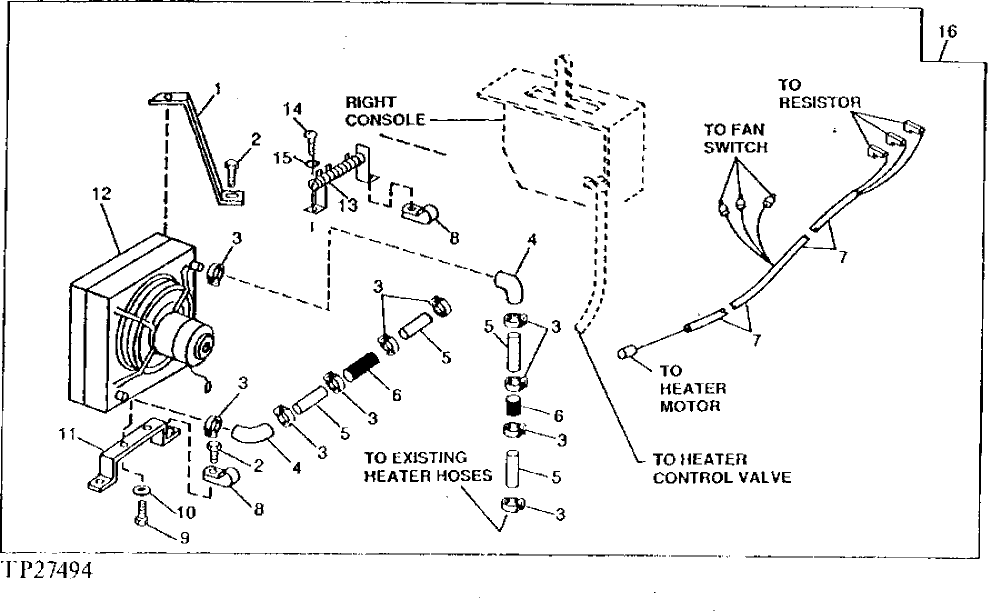

Запчасти John Deere 92DLC 139 - HEATER MOUNTING BRACKETS, HOSE CONNECTORS AND WIRING HARNESS 1830 HEATING AND AIR CONDITIONING

Схема запчастей John Deere 92DLC - 139 - HEATER MOUNTING BRACKETS, HOSE CONNECTORS AND WIRING HARNESS 1830 HEATING AND AIR CONDITIONING

Артикул

Название

Примечание

Количество

1

T108009

Brace

1шт.

2

19M7784

Screw

M10 X 20

3шт.

3

WZ2141223

Hose Clamp

(SUB FOR AR21837, THIS APPL ICATION ) (SUB FOR AA34965)

10шт.

4

T22942

Hose

2шт.

5

N155214

Hose Fitting

6шт.

6

Hose

2-1/2 FT. (MAKE FROM T115300 BULK MATERIAL, CUT TO LENGTH)

2шт.

7

AT114761

Wiring Harness

1шт.

8

T19935

Clamp

2шт.

9

19H1227

Cap Screw

1/4" X 1/2"

3шт.

10

24H1287

Washer

9/32" X 5/8" X 0.065"

3шт.

11

T108010

Angle

1шт.

12

AT112808

Heater

1шт.

13

AT56762

Resistor

1шт.

14

37H43

Screw

2шт.

15

24H1283

Washer

7/32" X 1/2" X 0.049"

2шт.

16

TH108111

Heater

WHOLEGOODS

1шт.

Выбрано товаров: 16
