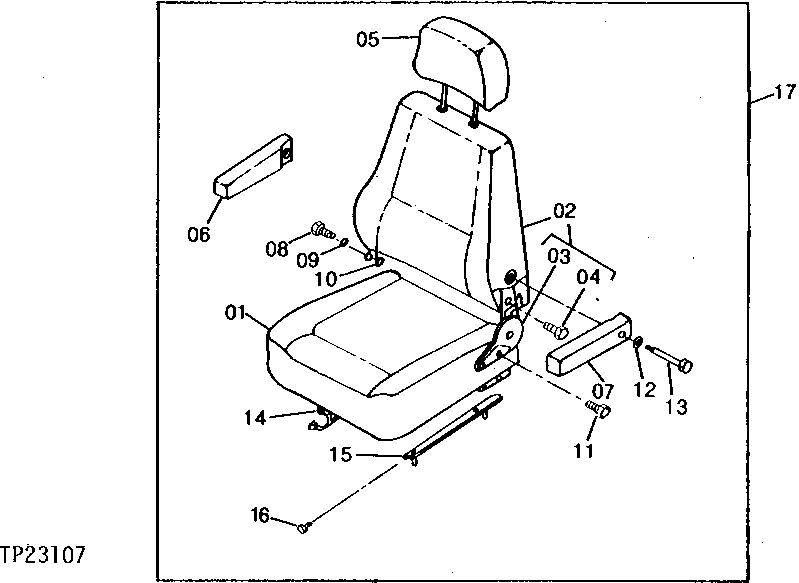

Запчасти John Deere 92DLC 134 - Seat Assembly 1821 SEAT AND SEAT BELT

1

0368101

Cushion

SUB FOR TH111646 AND AT126054

1шт.

2

0368102

Seat Back

SUB FOR TH111647 OR AT126055

1шт.

3

0340803

Adjuster

SUB FOR TH111648

1шт.

4

19M7402

Cap Screw

M10 X 25 SUB FOR TH104 152, ALONG WITH 12M7066

2шт.

12M7066

Lock Washer

10 mm Not Illustrated

2шт.

5

0368103

Head Restraint

SUB FOR TH111649 AND AT126056

1шт.

6

0368104

Arm

SUB FOR TH111650 AND AT126057 Right

1шт.

7

0368105

Arm

SUB FOR TH111651 AND AT126058 Left

1шт.

8

Bolt

0262709 NLA, SUB FOR TH104153

1шт.

9

24M7434

Washer

13 X 20 X 2 mm SUB FOR 0262710 AND TH104154

1шт.

10

12M7056

Lock Washer

8 mm SUB FOR TH104155 AND 12M7065

1шт.

11

19M7402

Cap Screw

M10 X 25 SUB FOR TH104 152, ALONG WITH 12M7066

2шт.

12M7066

Lock Washer

10 mm Not Illustrated

2шт.

12

24M7434

Washer

13 X 20 X 2 mm SUB FOR 026 2710, TH104151 AND TH104154

2шт.

13

0340807

Bolt

SUB FOR TH111652

2шт.

14

0368106

Adjuster

SUB FOR TH107000 AND AT126059 Right

1шт.

15

0304003

Adjuster

SUB FOR TH107001 Left

1шт.

16

0340808

Screw

SUB FOR TH111653

4шт.

17

4230833

Seat

SUB FOR TH108739 AND TH112076 Cloth

1шт.
