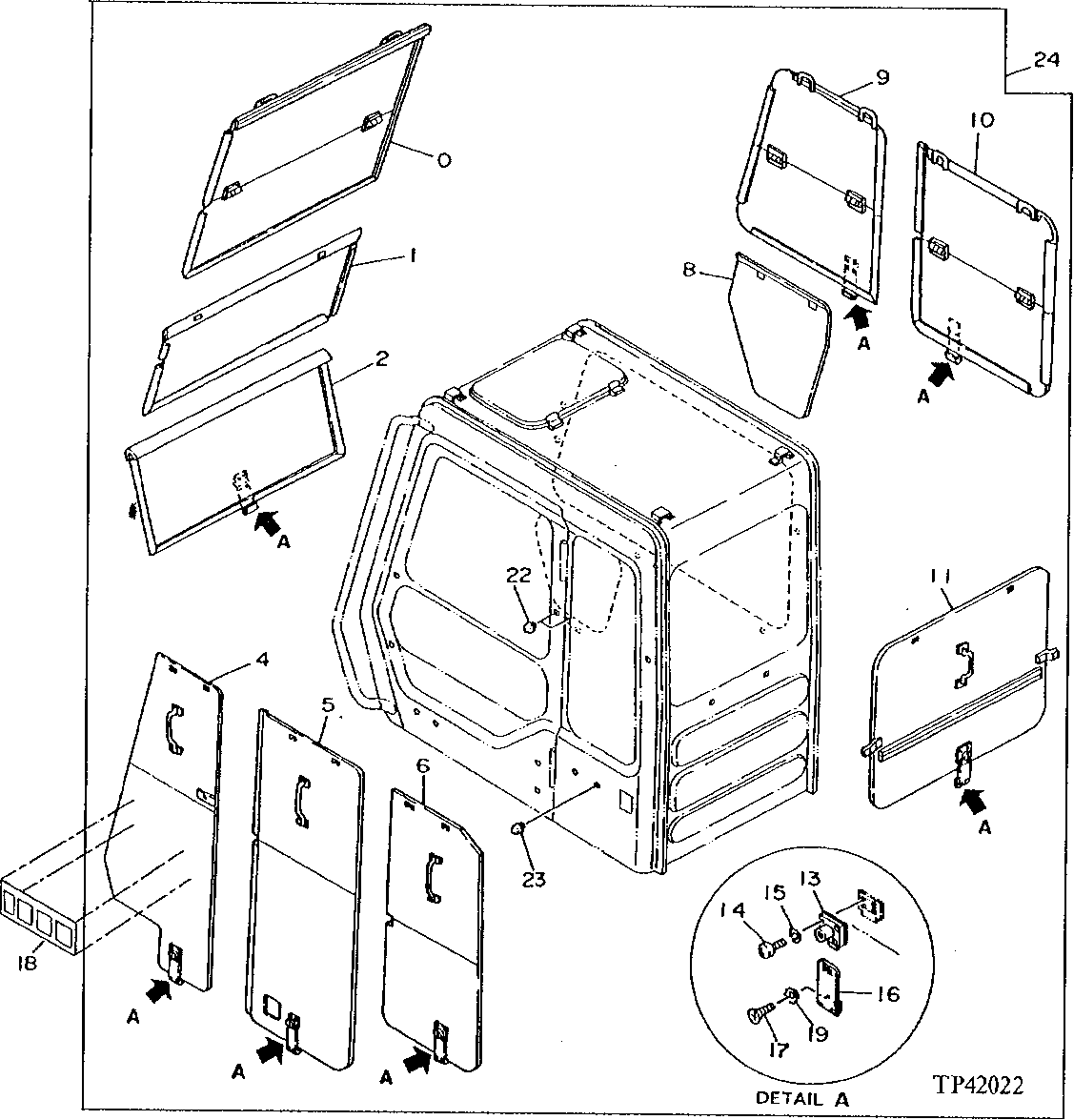

Запчасти John Deere 92DLC 129 - Vandal Protection 1810 Operator Enclosure

0

8039459

Cover

(SUB FOR TH108972)

1шт.

1

8039460

Cover

(SUB FOR TH108973)

1шт.

2

8041243

Cover

(SUB FOR TH111014)

1шт.

4

8039751

Cover

(SUB FOR TH108975)

1шт.

5

8039752

Cover

(SUB FOR TH108976)

1шт.

6

8039464

Cover

(SUB FOR TH108977)

1шт.

8

3039238

Cover

(SUB FOR TH108978)

1шт.

9

8040946

Cover

(SUB FOR TH111513)

1шт.

10

8040947

Cover

(SUB FOR TH111514)

1шт.

11

8039467

Cover

(SUB FOR TH108981)

1шт.

13

4361601

Lock

(SUB FOR TH108982, THIS APPLICATION ) (SUB FOR AT176636)(USES H800 KEY)

7шт.

14

21M7022

Screw

M5 X 20

28шт.

15

12M7064

Lock Washer

5 mm

28шт.

16

TH108983

Hinge

7шт.

17

21M7249

Screw

M5 X 10

14шт.

18

2025748

Label

(SUB FOR AT115040)

1шт.

19

T205218

Washer

(SUB FOR TH111908, 4107762)

14шт.

20

AT194969

Key

(SUB FOR TH108552 AND AT147803)(VANDA L COVER LOCK) (H800) (NOT ILLUSTRATED)

2шт.

22

4224012

Bumper

(SUB FOR AT128329)

2шт.

23

4224013

Bumper

(SUB FOR AT128330)

18шт.

24

TH108153

Guard Kit

(ALSO ORDER AT115040)

1шт.
