121 - Track Frame

Запчасти John Deere 92DLC 121 - Track Frame 1740 Frame Installation

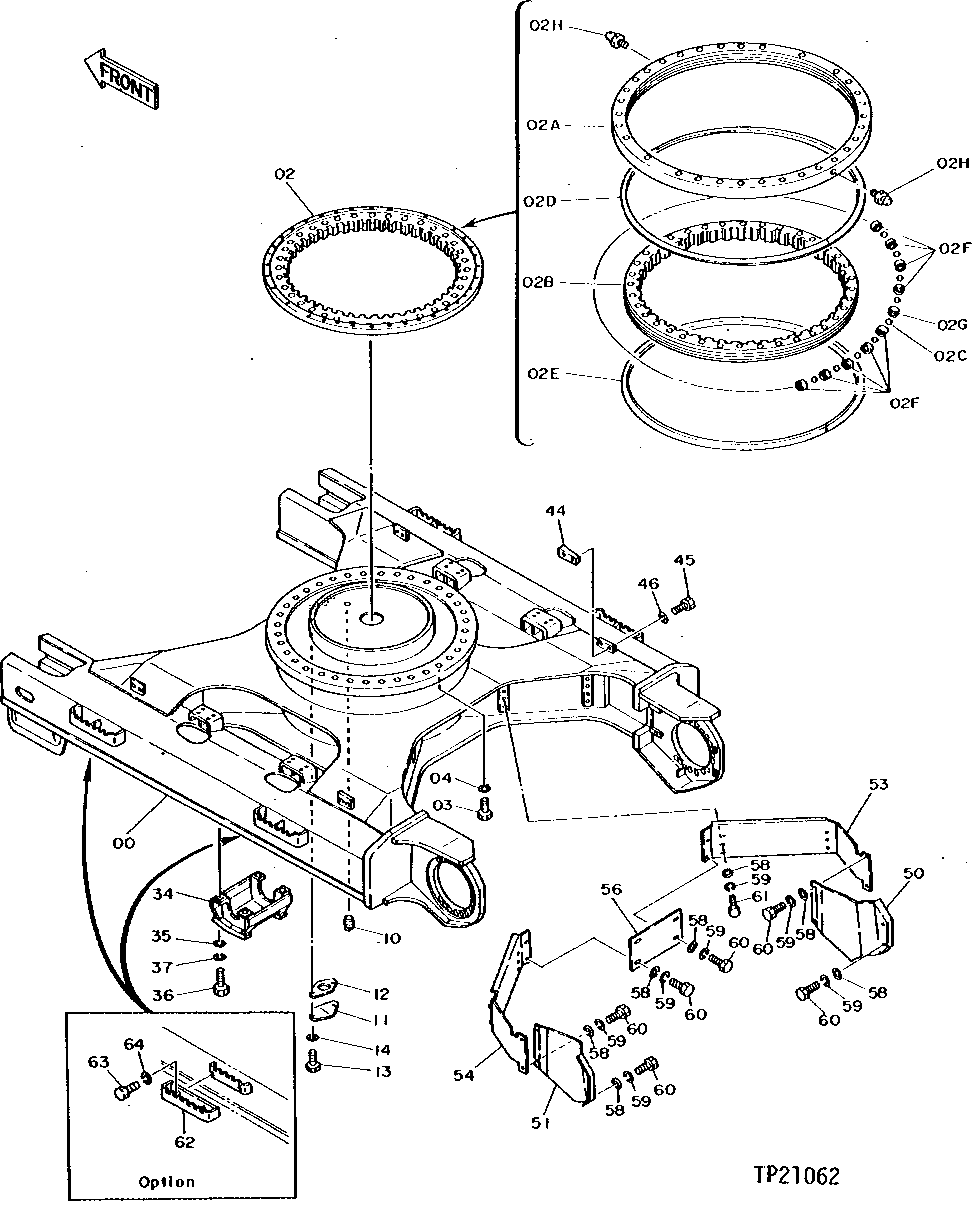

Схема запчастей John Deere 92DLC - 121 - Track Frame 1740 Frame Installation
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

Frame

( TH111426 CONVENIENCE ASS EMBLY NO LONGER AVAILABLE)

1шт.

2

9098980EX

Roller

(A) REMAN (SUB FOR TH111435, AT190771)

1шт.

2A

Bearing Race

(SUB AT190771)(OUTER)

1шт.

2B

Bearing Race

(SUB AT190771)(INNER)

1шт.

2C

4355766

Ball

(SUB FOR TH103076 ) (SUB FOR AT174890)

98шт.

2D

T203958

Seal

(A) (INNER) 4631753 NLA, (SUB FOR T191211 , TH108166, AT131484 AND AT131732 ) (ALSO OR DER TY21517 AND AT66866 ) (SUB FOR 4199645)

1шт.

TY21517

Adhesive

(NOT ILLUSTRATED)

ARшт.

AT66866

Fluid

(NOT ILLUSTRATED)

ARшт.

2E

T203958

Seal

(A) 4631753 NLA, (SUB FOR T191211, TH108166 AND AT131484 ) (ALSO ORDER TY 21517 AND AT66866 ) (SUB FOR 4199645)

1шт.

TY21517

Adhesive

(NOT ILLUSTRATED)

ARшт.

AT66866

Fluid

(NOT ILLUSTRATED)

ARшт.

2F

4134900

Spacer

(SUB FOR TH102260)

87шт.

2G

4134901

Spacer

(SUB FOR TH102261)

11шт.

2H

TH100074

Lubrication Fitting

2шт.

3

J832480

Bolt

(SUB FOR TH103079)

36шт.

4

12H234

Lock Washer

1" (SUB FOR TH103080)

36шт.

10

94-2024

Fitting Plug

(SUB FOR TH101292)

1шт.

11

4013896

Cover

(SUB FOR TH100633)

1шт.

12

4157713

Gasket

(SUB FOR 4510901 OR AT280905 OR TH102263)

1шт.

13

19M7938

Cap Screw

M10 X 20

2шт.

14

12M7066

Lock Washer

10 mm

2шт.

34

8043895

Guard

(SUB FOR TH111483)

2шт.

35

N231749

Washer

20.620 X 38.100 X 6.350 mm (SUB FOR TH102927 OR T33089)

8шт.

36

19M7597

Cap Screw

M20 X 50

8шт.

37

12M7070

Lock Washer

20 mm

8шт.

44

4213169

Plate

(SUB FOR TH111372)

4шт.

45

19M8232

Cap Screw

M18 X 50

8шт.

46

12H236

Lock Washer

3/4"

8шт.

50

3037494

Cover

(SUB FOR TH111171)

1шт.

51

3037499

Cover

(SUB FOR TH111172)

1шт.

53

7017877

Cover

(SUB FOR TH111443)

1шт.

54

7017878

Cover

(SUB FOR TH111444)

1шт.

56

4198450

Cover

(SUB FOR TH111293)

1шт.

58

24H1748

Washer

1/2" X 1-1/4" X 0.105"

20шт.

59

12H301

Lock Washer

1/2"

20шт.

60

19M7872

Cap Screw

M12 X 25

12шт.

61

19M7753

Cap Screw

M12 X 70

8шт.

62

9720608

Step

(SUB FOR TH101366)

4шт.

63

19M8011

Cap Screw

M12 X 30

8шт.

64

12H301

Lock Washer

1/2"

8шт.
