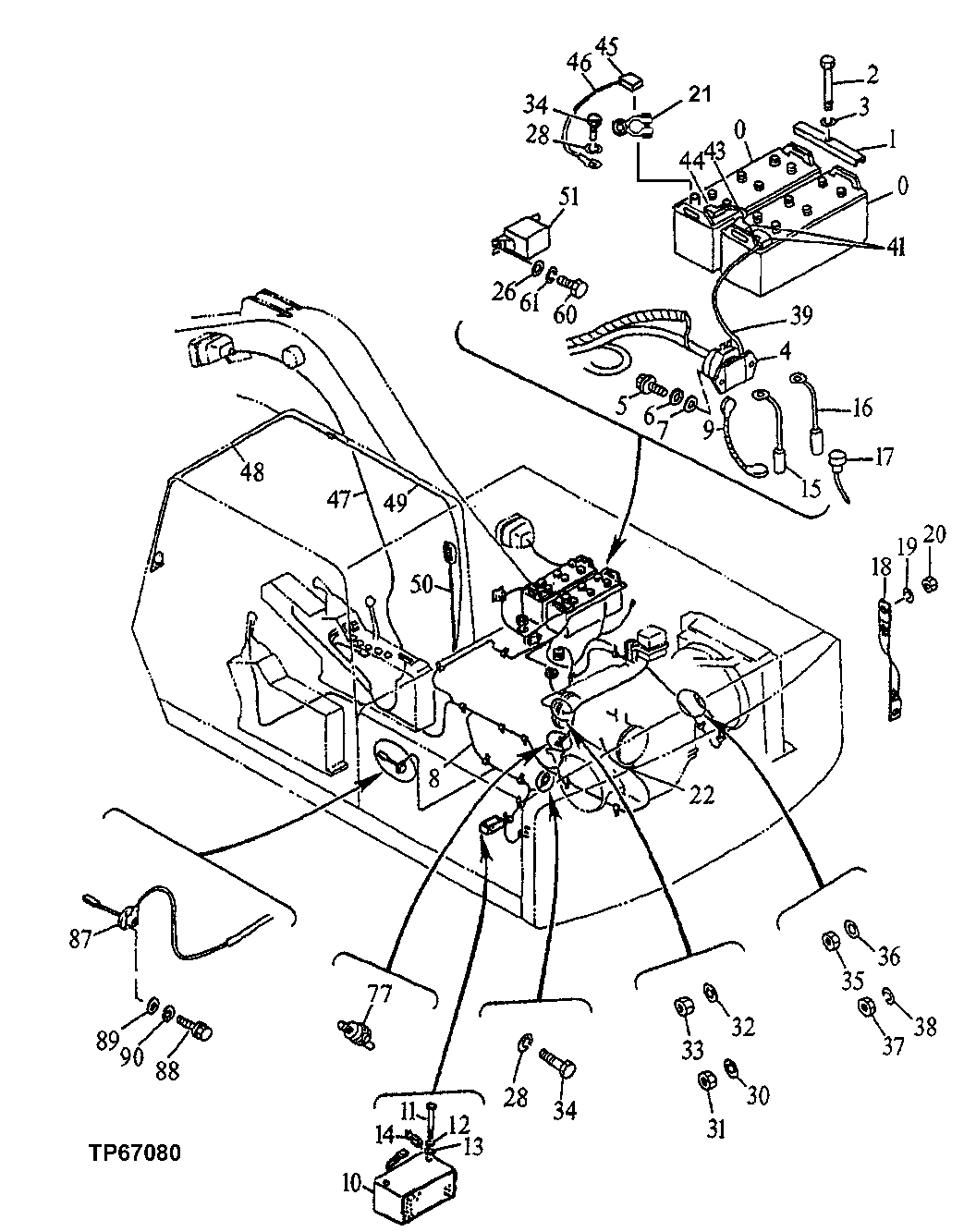

Запчасти John Deere 92DLC 112 - ELECTRIC PARTS 1674 Wiring Harness And Switches

41

4256241

Cap

(SUB FOR TH112251)(USE WITH ORIGINAL CABLE)

2шт.

T107114

Cover

(K) (USE WITH REPLACEMENT CABLE)

2шт.

43

RE21742

Battery Cable

(K) 203.200 mm (SUB FOR AT128269 ) (ALS O ORDER T107714, T107115 AND (2) R44302)

1шт.

R44302

Tie Band

(K) (NOT ILLUSTRATED)

2шт.

44

4256240

Cap

(SUB FOR TH112250)(USE WITH ORIGINAL CABLE)

1шт.

T107115

Cover

(K) (USE WITH REPLACEMENT CABLE)

1шт.

45

4256240

Cap

(SUB FOR TH112250)(USE WITH ORIGINAL CABLE)

1шт.

46

AR46230

Battery Cable

(K) 635 mm (SUB FOR AT128270)(NE GATIVE BATTERY TERMINAL TO FRAME)

1шт.

47

4244296

Wiring Harness

(K) (SUB FOR AT128271)(BOOM LIGHT)

1шт.

48

4229055

Wiring Harness

(K) (SUB FOR TH111933)(WIPER)

1шт.

49

4229056

Wiring Harness

(K) (SUB FOR TH111934)(WIPER RELAY)

1шт.

50

4229057

Wiring Harness

(K) (SUB FOR TH111935)(DOME LIGHT)

1шт.

51

AT85258

Relay

(STARTER) (SUB AT145341, ALON G WITH (2) T28583 CONNECTORS)

1шт.

AT145341

Relay

(STARTER)

1шт.

14M7165

Lock Nut

M6 (STARTER RELAY TERMINALS)

2шт.

52

AU42892

Wiring Lead

(K) (NOT ILLUSTRATED) (ALTERNA TOR OUTPUT TO SECURE TERMINALS)

1шт.

60

21M7246

Screw

M6 X 16

2шт.

61

12M7006

Lock Washer

6 mm

2шт.

77

Air Restriction Indicator

(SUB 4472100, AR44361 AND 4667 051)( TH109441 OR 4334759 NLA)

1шт.

4472100

Air Restriction Indicator

1шт.

AR44361

Fitting

1шт.

4667051

Adapter Fitting

1шт.

87

4151888

Switch

(SUB FOR TH102170)(LEVEL)

1шт.

88

21M7265

Screw

M5 X 12

3шт.

89

12M7064

Lock Washer

5 mm

3шт.

90

24M7027

Washer

5.300 X 10 X 1 mm

3шт.

95

Wiring Harness

(SUB AT131434)(MAIN) ( AT128264 NOT AV AILABLE FOR SERVICE) (NOT ILLUSTRATED) (TIE UNUSED WIRING LEADS ON SUB WIRING HARNESS AND TAPE THE ENDS TO THE HARNES S)

1шт.

4260095

Wiring Harness

(SUB FOR AT131434)(MAIN) (NOT ILLUSTRATED)

1шт.
