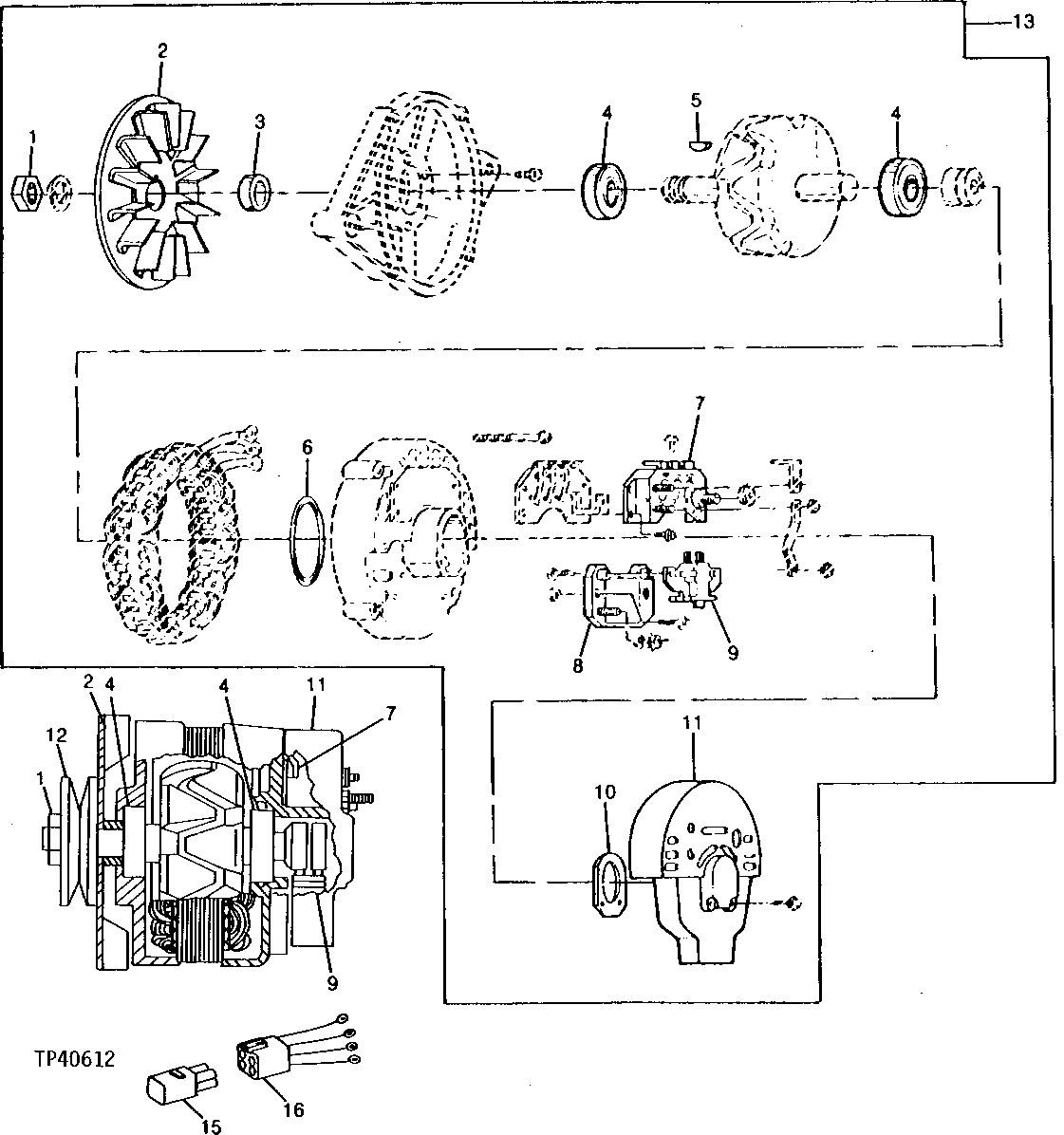

Запчасти John Deere 92DLC 104 - Alternator And Pulley 1672 ALTERNATOR, REGULATOR AND CHARGING SYSTEM WIRING

1

Nut

( W36250 NO LONGER AVAILABLE)

1шт.

2

R60492

Fan

1шт.

3

Bushing

( T25343 USE IF AVAILABLE)

1шт.

4

JD9449

Ball Bearing

2шт.

5

26H9

Shaft Key

1/8" X 5/8"

1шт.

6

Ring

( T50860 USE IF AVAILABLE)

1шт.

7

AT104092

Rectifier

1шт.

8

AT120668

Regulator

1шт.

9

AT104090

Holder

1шт.

10

Gasket

( T103117 NO LONGER AVAILABLE)

1шт.

11

T103118

Cover

1шт.

12

T43032

Pulley

(DOUBLE GROOVE PULLEY)

1шт.

13

Alternator

( AT125430 PRESTOLITE ALTERNATOR NO LON GER AVAILABLE) (SUB AT130930 DELCO ALTER NATOR) (ALSO ORDER AT131151, T78974, 1 9M7297, R50659, T123088 AND R108685)

1шт.

TY6680

Alternator

NLA (ORDER SE501369)

1шт.

SE501369

Alternator Reman

(REMAN FOR TY6680 OR AT125430)

1шт.

14

AU42892

Wiring Lead

(NOT ILLUSTRATED) (ALTERNATO R OUTPUT TO SENSE TERMINALS)

1шт.

15

T138822

Electrical Connector Assy

(USE WITH PRESTOLITE ALTERNATOR)

1шт.

16

AT142345

Wiring Harness

(USE WITH PRESTOLITE ALTERNATOR)

1шт.
