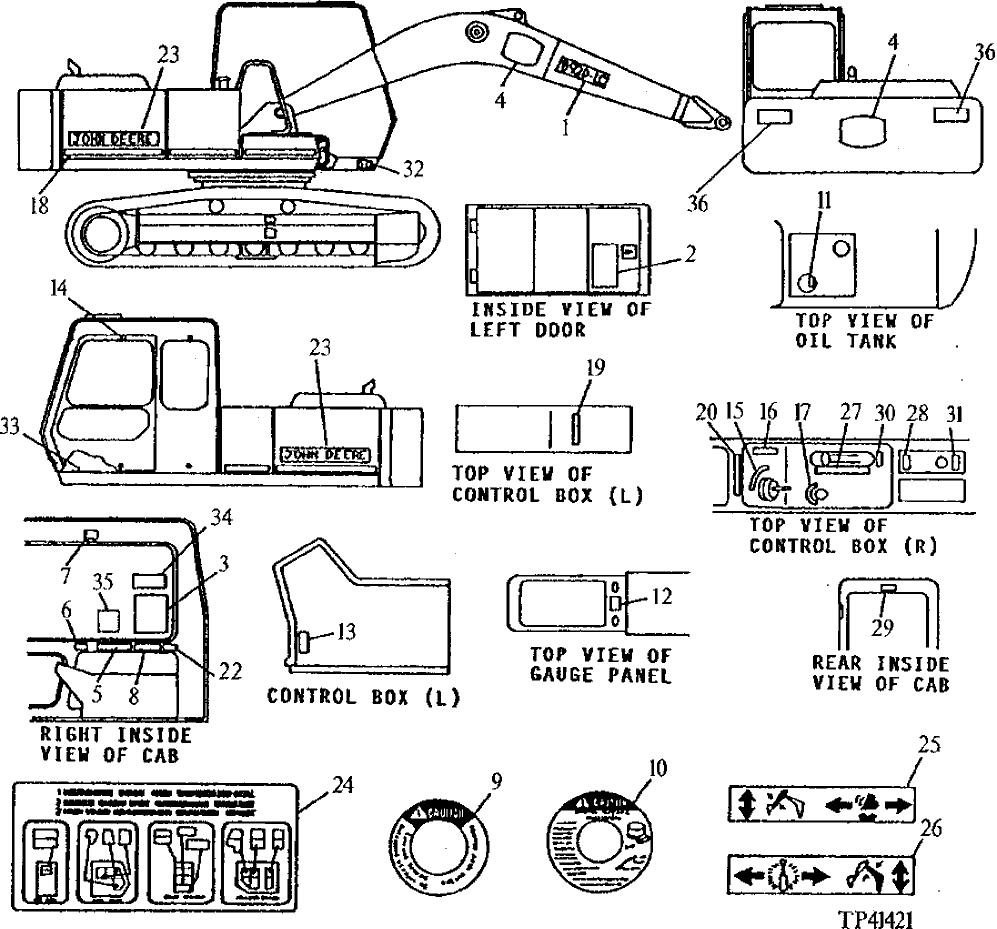

Запчасти John Deere 92DLC 99 - Labels and Decals 1320 VEHICLE FINISH AND TRIM

1

T114663

Label

(K) MODEL NUMBER, 892D-LC

2шт.

2

Label

(SUB TH112074)PERIODIC MAINTENAN CE ( T114664 NO LONGER AVAILABLE)

1шт.

2028010

Label

(K) (SUB FOR TH112074)PERIO DIC MAINTENANCE (LEFT FENDER)

1шт.

3

T114665

Label

LIFT, CHART

1шт.

4

JD5628

Label

(K) LEAPING DEER

3шт.

5

T146666

Safety Sign

(SUB FOR T108111 OR T13 8801 OR T138835)CAUTION

1шт.

6

T146667

Safety Sign

(SUB FOR T114392)(DANGER - ELECTROCUTION)

1шт.

7

T146668

Safety Sign

(SUB FOR T107627)(WARNING - AVOID CRUSHING)

1шт.

8

T107623

Label

ENGINE START AND STOP

1шт.

9

T146671

Safety Sign

(K) (SUB FOR T114488)RADIATOR CAP

1шт.

10

T147009

Label

(K) (SUB FOR T108183)RESERVOIR COVER

1шт.

11

P63448

Label

(K) (SUB FOR T108113 OR AT 155733)BLEED PUMP (ENGLISH)

1шт.

12

4211092

Label

(SUB FOR TH110230)CHECK-BUZZER

1шт.

13

4149203

Label

(SUB FOR TH101569)CONTROL LEVER LOCK

1шт.

14

T119535

Label

(K) (SUB FOR TH101411)PLATE, BUMPER

6шт.

15

4210026

Label

(SUB FOR T120640)(IGNITION)

1шт.

16

T108112

Label

PROPEL SPEED

1шт.

17

T108168

Label

MODE SWITCH

1шт.

18

T107620

Label

(K) 35 MM BLACK STRIPE

1шт.

19

TH103405

Label

(LEFT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)

1шт.

20

TH103404

Label

(RIGHT CONTROL LEVER - SAE PATTERN) (WHITE BACKGROUND)

1шт.

22

T108114

Label

HEATER-AC

1шт.

T114427

Label

HEATER DAMPER DOOR

1шт.

23

JD5614

Label

(K) JOHN DEERE

2шт.

24

2025748

Label

(SUB FOR AT115040)VANDAL COVERS

1шт.

25

T159844

Label

(SUB FOR TH103406)(RIGHT CONTROL LEVER - JOHN DEERE PATTERN) (YELLOW BACKGROUND)

1шт.

26

T159843

Label

(SUB FOR TH101630)(LEFT CONTROL LEVER - JOHN DEERE PATTERN) (YELLOW BACKGROUND)

1шт.

27

4146722

Label

(SUB FOR TH100596)(THROTTLE - GRAPHIC)

1шт.

28

Label

( 4210039 NLA) (SUB FOR TH111033)(ENGINE STOP)

1шт.

29

T146664

Safety Sign

(SUB FOR TH111028 OR TH111 901)(WINDOW LOCK - CAUTION)

1шт.

30

4172040

Label

(SUB FOR T114454)(THROTTLE - WORDS)

1шт.

31

4210040

Label

(SUB FOR T114455)(STARTING AID)

1шт.

32

37H131

Screw

0.140" X 3/8"

2шт.

33

H21259

Mat

(K) (OPERATOR'S DECK)

24шт.

34

AT131150

Label

(WARNING - REDUCED LIFT CAPACITIES)

1шт.

35

AT131226

Label

(THUMB CONTROL, FOOT - FOR ROAD BUILDER UNIT)

1шт.

AT131227

Label

(THUMB CONTROL, HAND - FOR ROAD BUILDER UNIT)

1шт.

36

T248455

Label

(SUB FOR T114398, T147008, 20 35960 OR 2035960R)(STAY CLEAR)

2шт.
