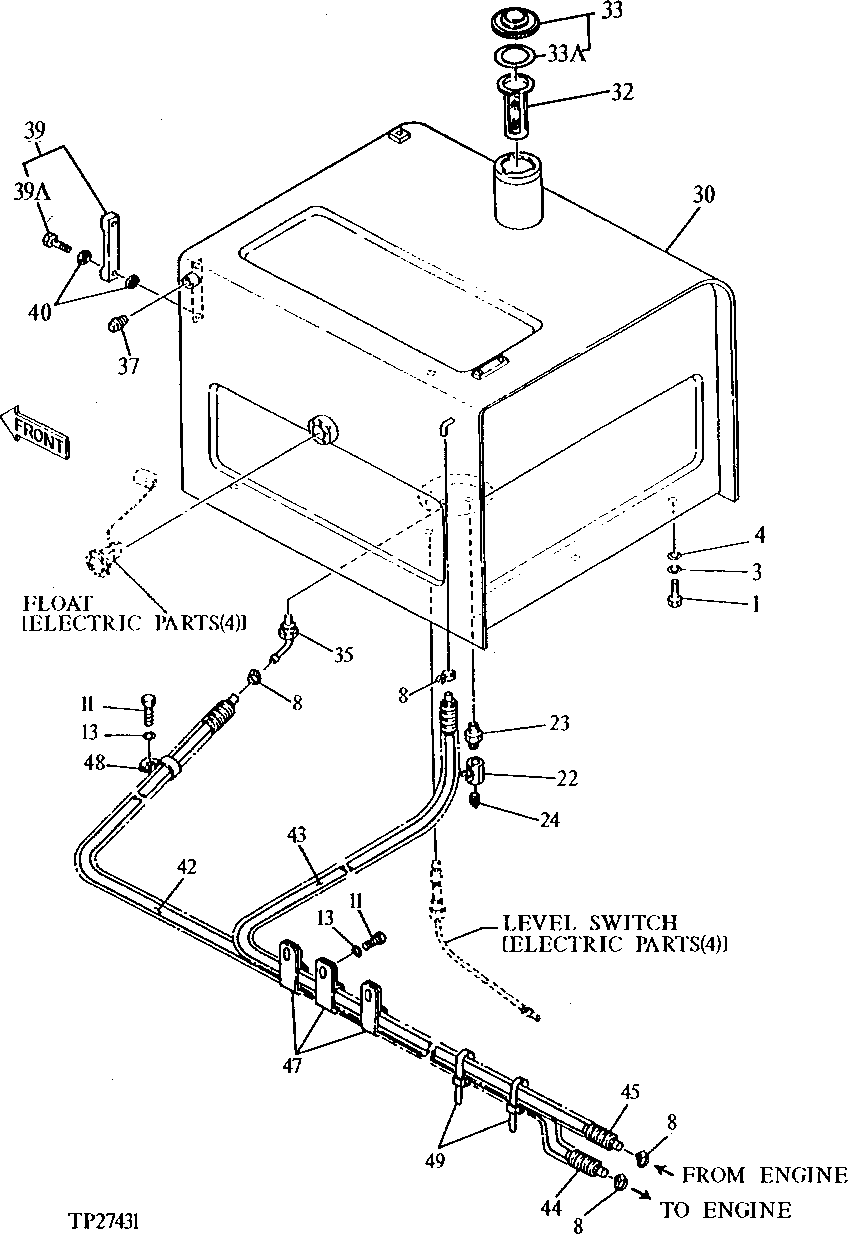

Запчасти John Deere 92DLC 98 - Fuel Tank 0560 External Fuel Supply Systems

1

19M7488

Cap Screw

M16 X 40

6шт.

3

12H294

Lock Washer

5/8"

6шт.

4

4114405

Washer

17 X 32 X 4.500 mm SUB FOR TH101105

6шт.

8

TY22464

Clamp

SUB FOR TH100896 AND AT 145649, SUB FOR AR21836

4шт.

11

19M3142

Cap Screw

M10 X 18

4шт.

13

12M7066

Lock Washer

10 mm

4шт.

22

4374265

Drain Valve

SUB FOR TH111398 OR TH1 11035, SUB FOR AT177419

1шт.

23

T116057

Fitting

SUB FOR TH101997

1шт.

24

M800462

Plug

SUB FOR TH101049

1шт.

30

9071441

Fuel Tank

SUB FOR TH111422

1шт.

32

4121496

Fuel Filter

SUB FOR TH100509

1шт.

33

4361638

Cap

KEY LOCKABLE, ORDER KEY SEPARATELY

1шт.

AT194969

Key

SUB FOR AT147803, H800, NOT ILLUSTRATED

1шт.

AT323462

Filler Cap

SUB FOR TH108249, AT175989 OR 4361638, CAN BE LOCKED WITH PADLOCK, PADLOCK NOT INCLUDED

1шт.

33A

4168820

Packing

SUB FOR TH103384, USE WITH TH108249 FUEL CAP

1шт.

35

9726772

Fitting

SUB FOR TH108251

1шт.

37

94-2024

Fitting Plug

SUB FOR TH101292

1шт.

39

8033923

Level Gauge

SUB FOR TH108250

1шт.

39A

4100967

Bolt

SUB FOR TH101894

2шт.

40

449558

Washer

SUB FOR TH100675

4шт.

42

Tube

SUB T79477, CUT TO LENGTH

1шт.

43

Hose

TH111363 NO LONGER AVAILABLE, CUT TO LENGTH FROM M87571 BULK MATERIAL

1шт.

44

Oil Tube

TH106423 NO LONGER AVAILABLE, CUT TO LENGTH FROM T83427 BULK MATERIAL

1шт.

45

Tube

SUB FOR TH111405, AT132010 OR TH 111405 NO LONGER AVAILABLE, CUT TO LENGTH FROM T83427 BULK MATERIAL

1шт.

47

R50454

Clamp

SUB FOR TH109445 OR 4192034

3шт.

48

R72659

Clamp

SUB FOR TH108594 OR 4235654

1шт.

49

H77698

Tie Band

SUB FOR T44946

2шт.
