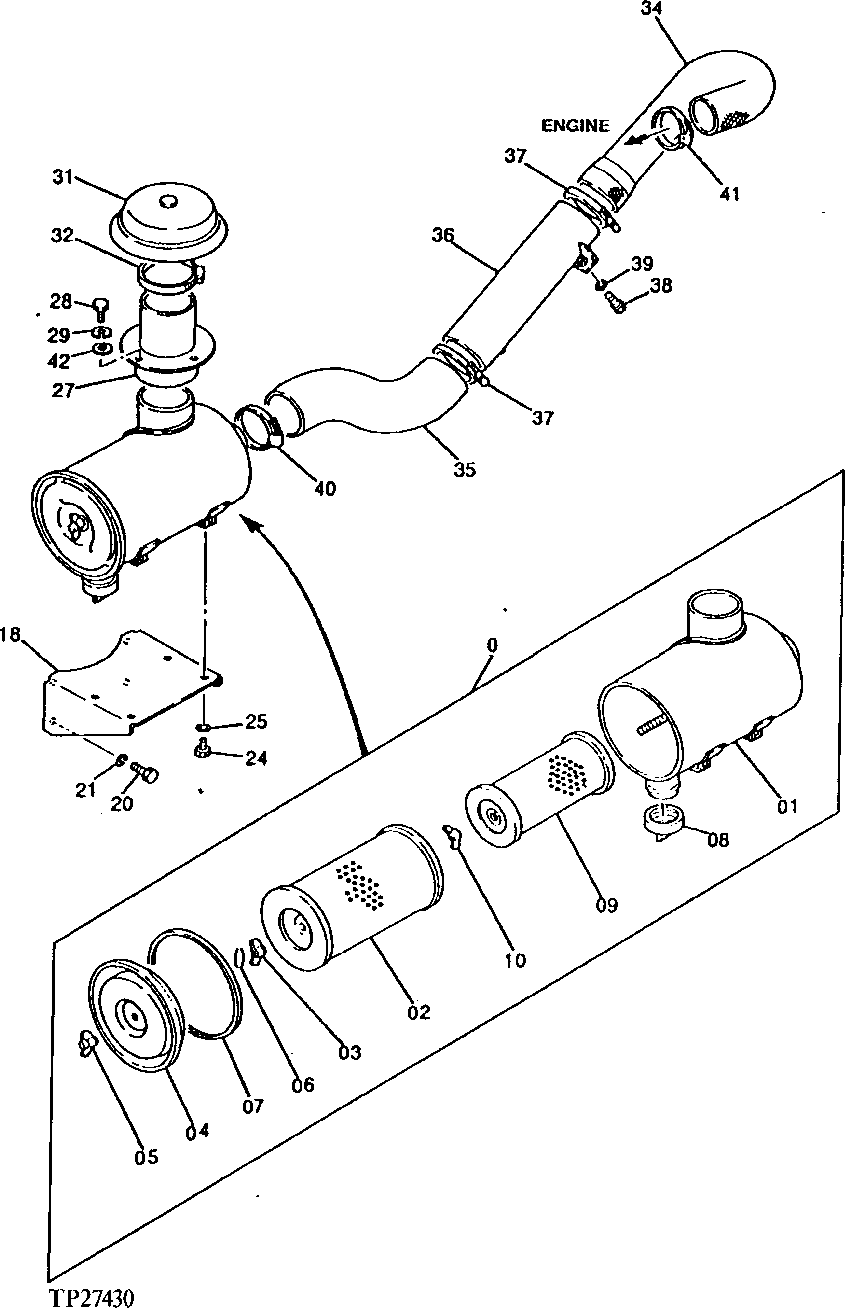

Запчасти John Deere 92DLC 97 - Air Cleaner 0520 Intake System

0

4226859

Air Cleaner

(SUB FOR TH109432)

1шт.

1

Housing

(SUB TH109432)

1шт.

2

AT81018

Filter Element

(SUB FOR TH109434)

1шт.

3

AR73234

Wing Nut

11.125 mm (SUB FOR AR7 3234, THIS APPLICATION)

1шт.

4

4163257

Cover

(SUB FOR T83320)

1шт.

5

AR73234

Wing Nut

11.125 mm (SUB FOR AR7 3234, THIS APPLICATION)

1шт.

6

P46402

Snap Ring

1шт.

7

T83321

Gasket

1шт.

8

T23263

Valve

(SUB TH111700)

1шт.

4152863

Flow Control Hyd. Valve

(SUB FOR TH111700)

1шт.

9

AT81019

Filter Element

1шт.

10

AH20849

Wing Nut

1шт.

18

2024598

Bracket

(SUB FOR TH111128)

1шт.

20

19M8017

Cap Screw

M12 X 20

4шт.

21

12H301

Lock Washer

1/2"

4шт.

24

19M3142

Cap Screw

M10 X 18

4шт.

25

12M7066

Lock Washer

10 mm

4шт.

27

8035420

Line

(SUB FOR TH109439)

1шт.

28

19M8017

Cap Screw

M12 X 20

4шт.

29

12H301

Lock Washer

1/2"

4шт.

31

AR60093

Cap

(SUB FOR TH109440)

1шт.

32

TY22476

Clamp

(SUB FOR AT145652 AND RE19429)

1шт.

34

TH112116

Hose

(SUB FOR TH109436)

1шт.

35

3035484

Suction Hose

(SUB FOR TH109437)

1шт.

36

8037498

Air Intake Stack

(SUB FOR TH111485)

1шт.

37

RE19429

Clamp

2шт.

38

19M8011

Cap Screw

M12 X 30

2шт.

39

12H301

Lock Washer

1/2"

2шт.

40

AT54523

Hose Clamp

1шт.

41

AT37478

Hose Clamp

1шт.

42

24M7047

Washer

13 X 24 X 2.500 mm

4шт.
