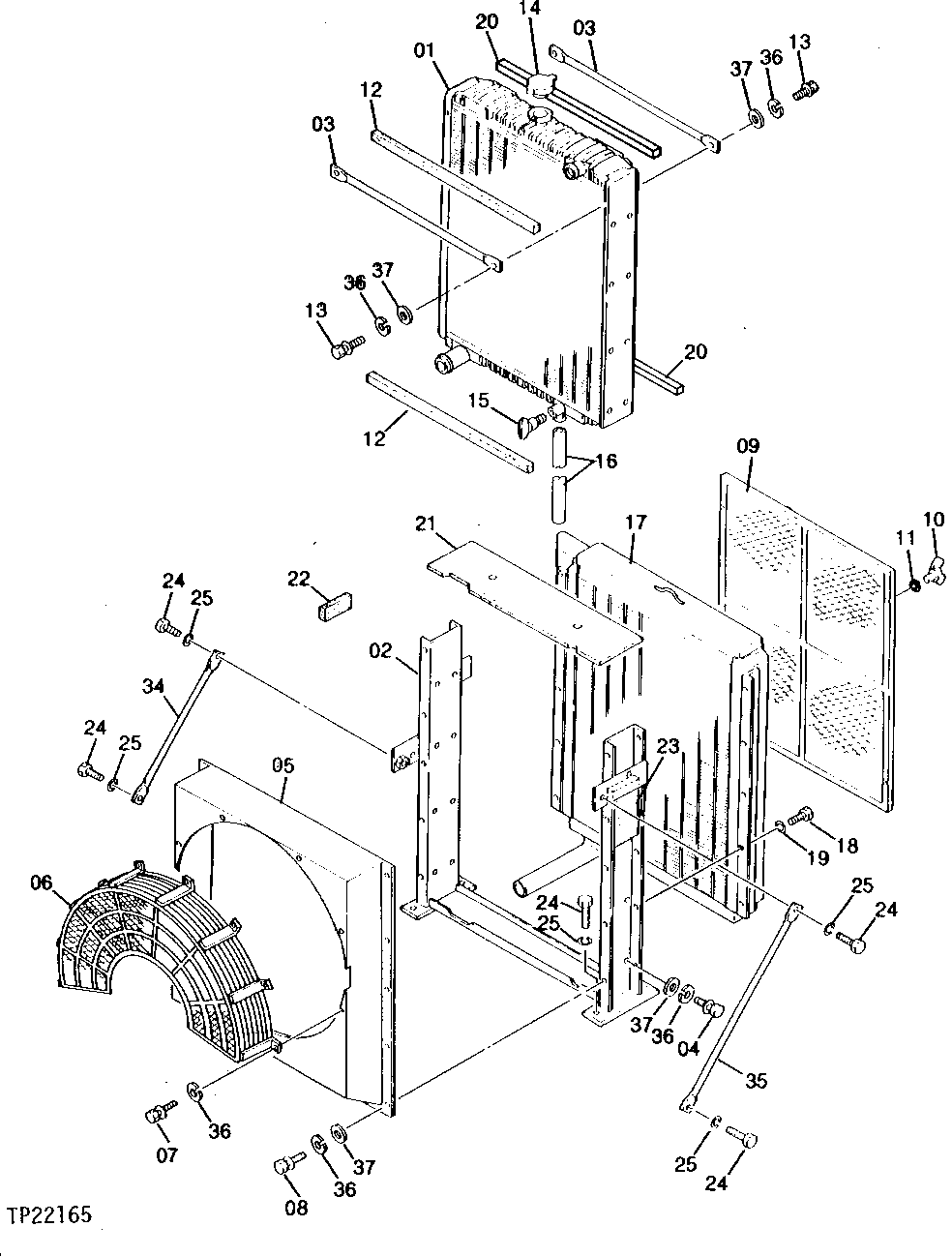

Запчасти John Deere 92DLC 93 - Radiator 0510 COOLING SYSTEMS

1

4218720

Radiator

(SUB FOR TH111410)

1шт.

2

4218721

Frame

(SUB FOR TH111411)

1шт.

3

4216269

Rod

(SUB FOR TH111409 ) (SUB FOR AT201061)

2шт.

4

19M7881

Screw

M8 X 20

16шт.

5

4218722

Shroud

(SUB FOR TH111412)

1шт.

6

4224605

Guard

(SUB FOR TH111418 ) (SUB FOR TH111016)

1шт.

7

19M7932

Cap Screw

M8 X 16

9шт.

8

19M7881

Screw

M8 X 20

10шт.

9

4216179

Screen

(SUB FOR TH111395)

1шт.

10

21M1689

Wing Screw

M6 X 12

4шт.

11

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

12

4206925

Packing

(SUB FOR TH109422)BAFFLE

2шт.

13

19M7881

Screw

M8 X 20

4шт.

14

Filler Cap

(SUB AT169085 ) (SUB FOR TH1 08224, TH111015 OR TH111864)

1шт.

AT169085

Filler Cap

(SUB FOR TH111864)

1шт.

15

4148705

Drain Plug

(SUB FOR TH109425)

1шт.

16

Hose

( TH110139 NO LONGER AVAILABLE) (MAKE FROM 1/2 INCH I.D. VINYL TUBING CUT TO LENGTH)

1шт.

17

4219951

Oil Cooler

(SUB FOR TH111417)

1шт.

18

19M7402

Cap Screw

M10 X 25

10шт.

19

12M7066

Lock Washer

10 mm

10шт.

20

4223326

Packing

(SUB FOR TH111421)BAFFLE

2шт.

21

4218587

Packing

(SUB FOR TH111408)BAFFLE

1шт.

22

4218724

Packing

(SUB FOR TH111413)BAFFLE

1шт.

23

4218725

Packing

(SUB FOR TH111414)BAFFLE

1шт.

24

19M8035

Cap Screw

M16 X 35

8шт.

25

12H294

Lock Washer

5/8"

8шт.

34

4214756

Support

(SUB FOR TH111384)

1шт.

35

4214755

Support

(SUB FOR TH111383)

1шт.

36

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

39шт.

37

24M7055

Washer

8.400 X 16 X 1.600 mm

30шт.
