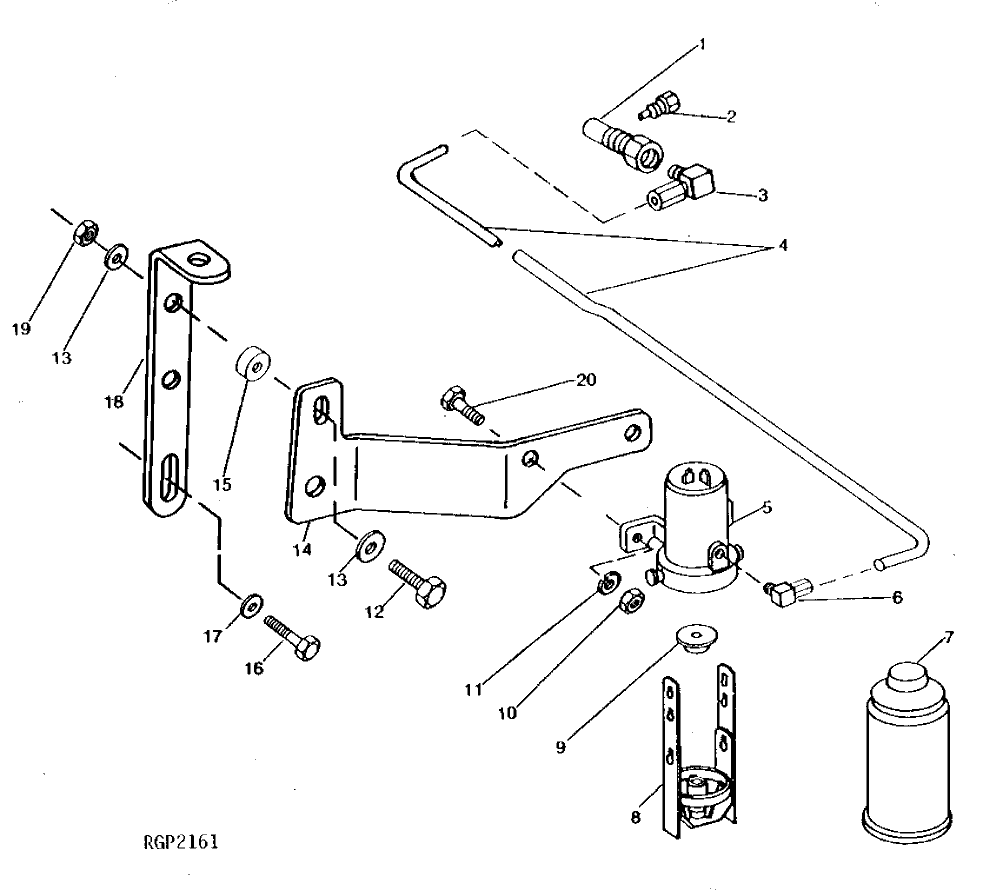

Запчасти John Deere 92DLC 88 - Cold Weather Starting Aid 0505 Cold Weather Starting Aids

1

R47160

Nozzle Holder

1шт.

2

T155858

Nozzle

(SUB FOR R28583)

1шт.

3

RE21790

Elbow Fitting

(SUB FOR AT25266)

1шт.

4

Structural Tube

(SUB RE16151)

1шт.

5

RE48311

Starting Aid

(SUB FOR AT41998 OR AT105778 ) ( SUB RE48311 ) (SUB FOR AT125915)

1шт.

RE48311

Starting Aid

(SUB FOR AT125915)

1шт.

6

RE21790

Elbow Fitting

(SUB FOR AT25266)

1шт.

7

RE33636

Starting Fluid

(SUB FOR AR27814, RE24561 OR RE30174)

1шт.

8

AT57288

Bail

1шт.

9

T46726

Gasket

1шт.

10

14H785

Nut

5/16"

2шт.

11

12H304

Lock Washer

3/8" (NOT REQUIRED WITH E55662)

2шт.

12

19H1801

Cap Screw

3/8" X 2"

2шт.

13

24H1309

Washer

13/32" X 1-1/16" X 0.120"

4шт.

14

R59767

Bracket

(SUB R85140)

1шт.

15

28H1495

Spacer

0.493" X 0.675" X 1" 3/8" X 1"

2шт.

16

19H3651

Screw

5/8" X 1-1/4"

1шт.

17

24H1139

Washer

11/16" X 1-1/4" X 0.105"

1шт.

18

R63858

Support

(SUB R85140)

1шт.

19

E55662

Flange Nut

2шт.

20

19H2127

Cap Screw

5/16" X 7/8"

2шт.
