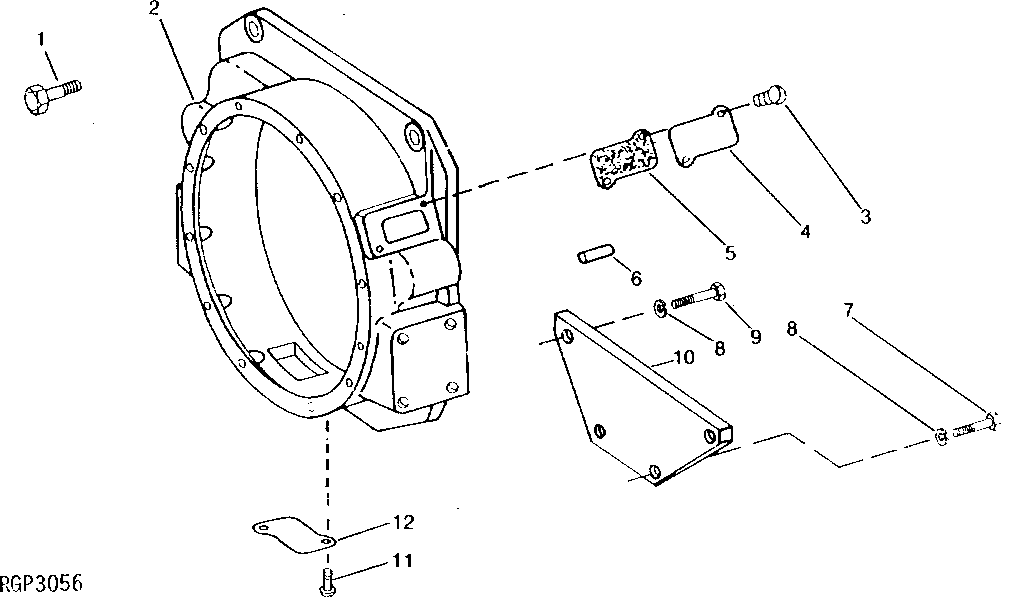

Запчасти John Deere 92DLC 86 - Flywheel Housing (SAE #2) 0433 FLYWHEEL, HOUSING AND FASTENINGS 6466AT014 6466AT014

1

19H2431

Cap Screw

3/4" X 2-1/4" (UPPER) (SUB FOR 19H1782)

2шт.

19H2431

Cap Screw

3/4" X 2-1/4" (MIDDLE AND LOWER) (SUB FOR 19H1782)

4шт.

2

R57843

Housing

(SUB R121690 AND (2) H79910)

1шт.

R121690

Housing

1шт.

3

21H1318

Screw

0.216" X 1/2"

2шт.

4

R31493

Cover

1шт.

5

R67989

Gasket

1шт.

6

T26565

Dowel Pin

(SUB FOR C1220R ) (USE WITH R57843)

2шт.

H79910

Dowel Pin

(USE WITH R121690)

2шт.

7

19H2038

Cap Screw

3/8" X 1/2" (NO LONGER REQUIRED)

2шт.

8

12H301

Lock Washer

1/2"

4шт.

9

19H3530

Cap Screw

1/2" X 7/8"

2шт.

10

R56619

Cover

1шт.

11

19H1227

Cap Screw

1/4" X 1/2"

2шт.

12

R89195

Plate

1шт.
