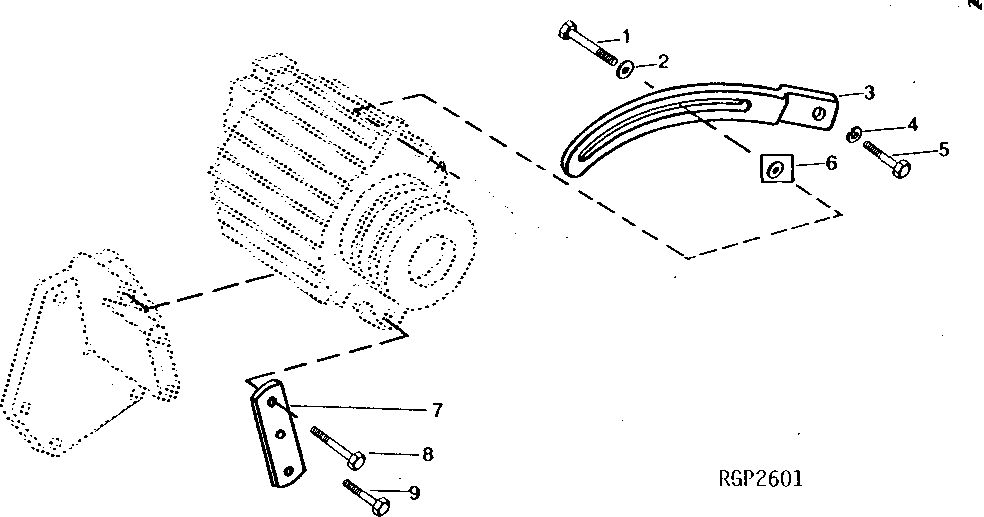

Запчасти John Deere 92DLC 81 - ALTERNATOR AND GENERATOR MOUNTING 0423 Alternator And Generator Mounting 6466AT014 6466AT014

1

19H1905

Cap Screw

5/16" X 1"

1шт.

19H3552

Cap Screw

5/16" X 1-1/2"

1шт.

19H1813

Cap Screw

5/16" X 5/8"

1шт.

19H2127

Cap Screw

5/16" X 7/8"

1шт.

2

12H303

Lock Washer

5/16"

1шт.

24H1136

Washer

11/32" X 11/16" X 0.065"

1шт.

24H1292

Washer

11/32" X 3/4" X 0.120"

1шт.

3

R79736

Strap

1шт.

R72089

Strap

(SUB R86764, THIS APPLICATION ) (ALSO ORDER 19H1813 AND 24H1136)

1шт.

R86764

Strap

(USE WITH PRESTOLITE/MOTORO LA ALTERNATOR) (SUB R108685)

1шт.

R108685

Strap

(USE WITH DELCO ALTERNATOR)

1шт.

4

12M7056

Lock Washer

8 mm (SUB FOR 12M7065)

1шт.

5

19M7139

Cap Screw

M8 X 20

1шт.

6

R56397

Washer

8.738 X 20.066 X 4.775 mm

1шт.

7

R79787

Strap

1шт.

8

19H2128

Cap Screw

3/8" X 3"

1шт.

9

19M7402

Cap Screw

M10 X 25

2шт.
