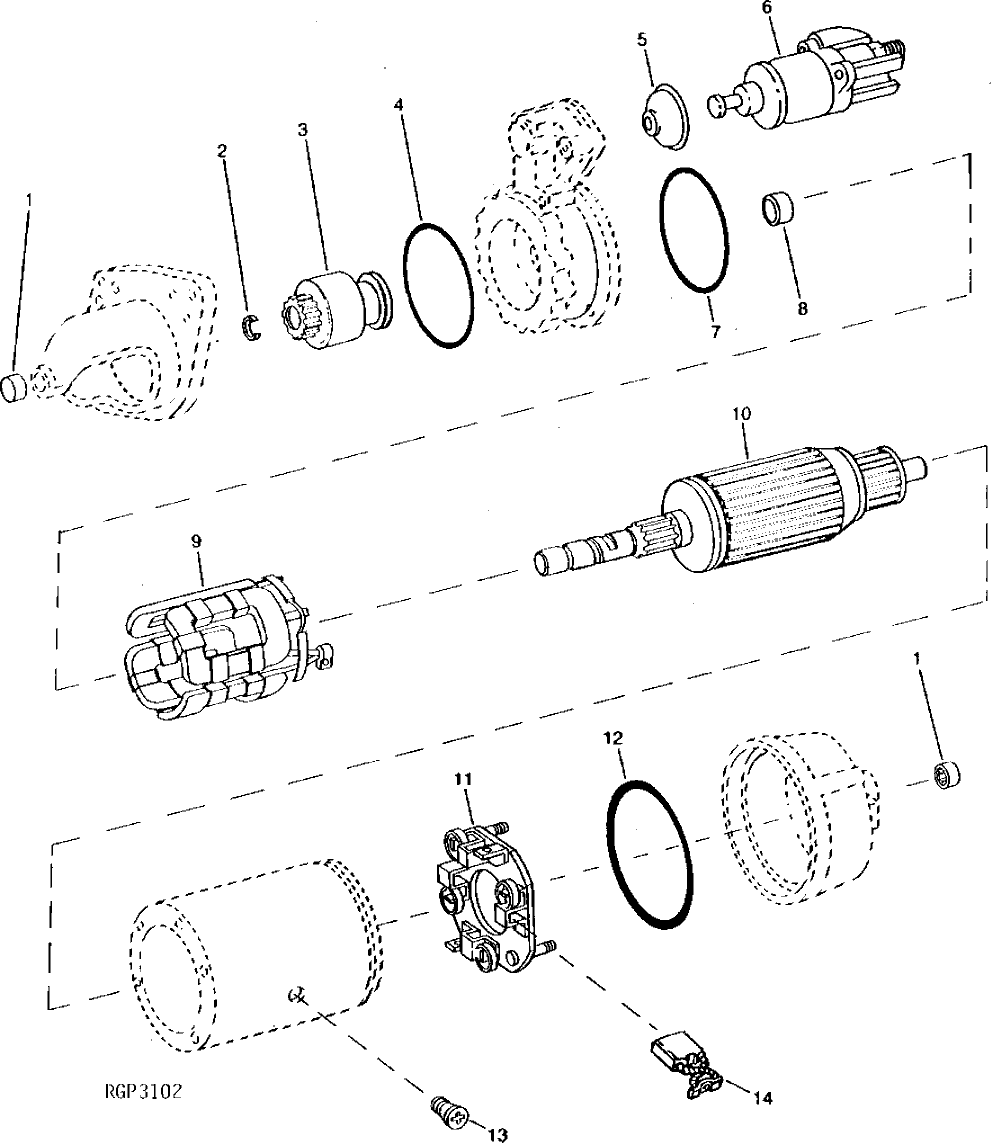

Запчасти John Deere 92DLC 79 - Starting Motor (24V 37MT) (Nippondenso) (354707 - ) 0422 Starting Motor And Fastenings 6466AT014 6466AT014

1

RE39251

Needle Bearing

2шт.

2

R50902

Snap Ring

(SUB FOR R100531)

1шт.

3

RE39249

Clutch

1шт.

4

R50901

Washer

(SUB FOR R100510)

1шт.

5

R100513

Cover

1шт.

6

RE45331

Solenoid

(SUB FOR RE39242)

1шт.

7

R100511

O-Ring

1шт.

8

R100509

Bushing

1шт.

9

RE39244

Field Winding Coil

1шт.

10

Armature

( RE39246 NO LONGER AVAILABLE)

1шт.

11

RE39250

Carbon Brush Holder

1шт.

12

R100512

O-Ring

1шт.

13

R100508

Screw

1шт.

14

RE39247

Brush

(SUB FOR RE39248)

4шт.
