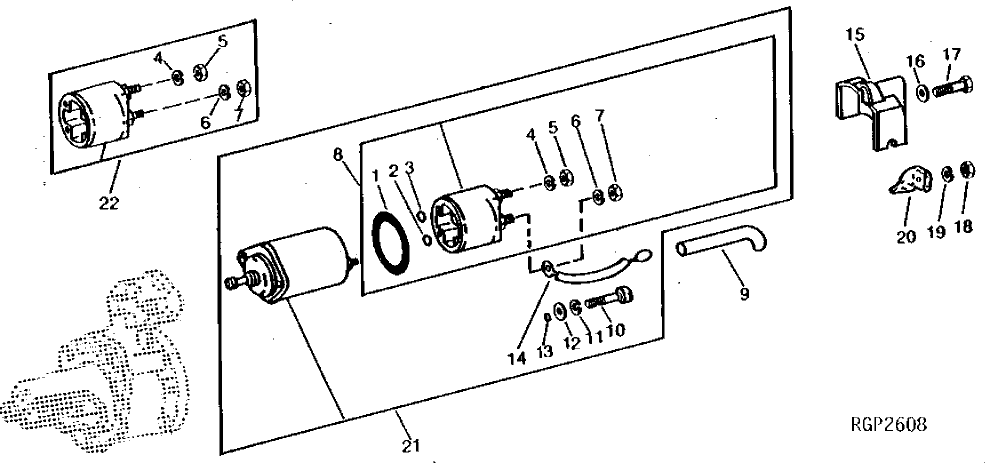

Запчасти John Deere 92DLC 74 - Starter Solenoid Switch (24 V) (John Deere) (Nippondenso 028000-5250 Or 5251) ( - 354706) 0422 Starting Motor And Fastenings 6466AT014 6466AT014

1

R68224

Gasket

1шт.

2

R56792

Washer

1шт.

3

R56793

Shim

(SUB RE13732)

1шт.

4

12H315

Lock Washer

0.164"

1шт.

5

R51671

Nut

1шт.

6

12H246

Lock Washer

0.190"

1шт.

7

14H631

Nut

0.190"

1шт.

8

RE20872

Cover

(A) (SUB FOR AR84334)

1шт.

9

R68222

Boot

1шт.

10

R51669

Screw

(SUB RE13732)

2шт.

11

24H1305

Washer

13/32" X 13/16" X 0.065"

2шт.

12

12H302

Lock Washer

1/4"

2шт.

13

R50894

O-Ring

(SUB RE13732)

2шт.

14

AR55949

Wiring Lead

(A) (SUB RE15058)

1шт.

RE15058

Wire

(B) (SUB RE13732)

1шт.

15

R76139

Cover

(A) (SUB RE39064 ) (SUB FOR R68225)

1шт.

16

R51662

Washer

1шт.

17

AR55946

Screw

(A)

1шт.

18

14H971

Nut

1/2"

1шт.

19

R50899

Lock Washer

1шт.

20

R50910

Electrical Connector Assy

(DENSO NO. 028172-0381)

1шт.

21

RE15661

Solenoid

(A) (DENSO 053400-6050) (SUB FOR AR84336)

1шт.

RE13732

Solenoid

(B) (DENSO 028099-3610_

1шт.

22

RE20872

Cover

(B)

1шт.
