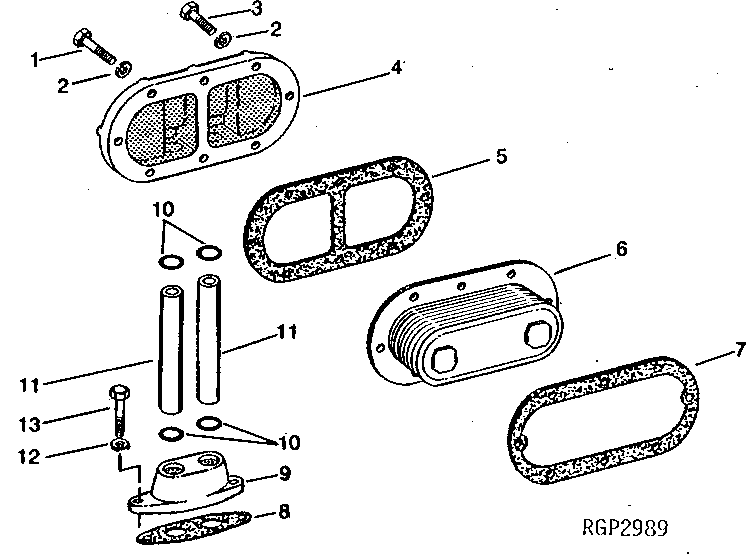

Запчасти John Deere 92DLC 64 - Engine Oil Cooler (336699 - ) 0419 Engine Oil Cooler 6466AT014 6466AT014

1

19H2703

Cap Screw

5/16" X 2-1/8"

1шт.

2

12H303

Lock Washer

5/16" (NO LONGER REQUIRED)

8шт.

3

19H2661

Cap Screw

5/16" X 1-3/8"

7шт.

4

R51283

Cover

1шт.

5

R50419

Gasket

1шт.

6

AR55394

Oil Cooler

1шт.

7

AR58952

Gasket

1шт.

8

R50424

Gasket

1шт.

9

R50423

Adapter Fitting

1шт.

10

R47153

O-Ring

4шт.

11

R51053

Oil Tube

2шт.

12

12H304

Lock Washer

3/8" (NO LONGER REQUIRED)

2шт.

13

19H3483

Cap Screw

3/8" X 1-1/8"

2шт.
