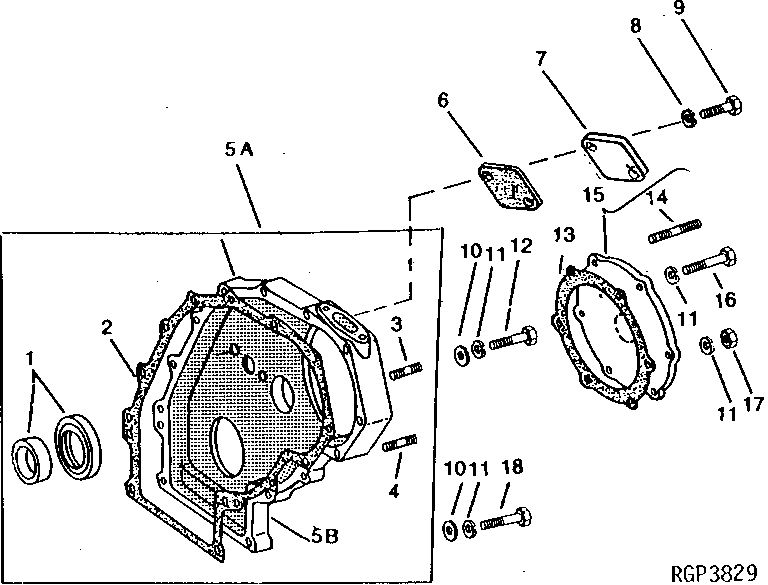

Запчасти John Deere 90A 2 - TIMING GEAR COVER 402 - ENGINE 4

1

AR49025

SEAL

1шт.

2

R49483

GASKET

1шт.

3

R699R

STUD

(SUB T20173 AND R51604, APPL)

1шт.

T20173

STUD

1шт.

4

R699R

STUD

(SUB FOR R32042 OR T20173, APPL USE WITH NO BELT TIGHTENER)

1шт.

R47105

STUD

(SUB FOR R32042, APPL USE WITH BELT TIGHTENER)

1шт.

5A

AR67511

COVER

(A) (MARKED R48835) (ALSO ORDER (2) R51604, R67770, R67769, (2) 12H302, (2) 19H1948)

1шт.

AR88415

COVER

(A) (MARKED R67342) (ALSO ORDER (2) R51604, APPL)

1шт.

RE10830

COVER

(A) (MARKED R77301) (ALSO ORDER (2) R51604, APPL)

1шт.

RE14134

COVER

(A)

1шт.

5B

R77301

COVER

(SUB FOR RE14134) (SUB R110147, APPL)

1шт.

R110147

COVER

1шт.

6

R67770

GASKET

1шт.

7

R67769

COVER

1шт.

8

12H302

LOCK WASHER

1/4"

2шт.

9

19H1948

CAP SCREW

1/4" X 3/4"

2шт.

10

24H1305

WASHER

9шт.

11

12H304

LOCK WASHER

3/8", (NOT REQUIRED WITH E55662)

15шт.

12

19H1801

CAP SCREW

3/8" X 2"

5шт.

13

R35349

GASKET

1шт.

14

R114130

STUD

(SUB D2420R AND R51604) (SUB FOR R55396, APPL)

1шт.

D2420R

STUD

1шт.

15

AR67538

COVER

(MARKED R55506) (SUB RE42820 AND R51604, APPL)

1шт.

RE14129

COVER

(MARKED R55506) (SUB RE42820)

1шт.

RE42820

COVER

(MARKED R105579)

1шт.

16

19H1733

CAP SCREW

3/8" X 2-1/2"

4шт.

17

E55662

FLANGE NUT

(NO LONGER REQUIRED)

1шт.

18

19H1800

CAP SCREW

3/8" X 1-1/2"

4шт.
