Запчасти John Deere 90A 2 - MAIN AND MAIN THRUST BEARINGS 401 - ENGINE 4

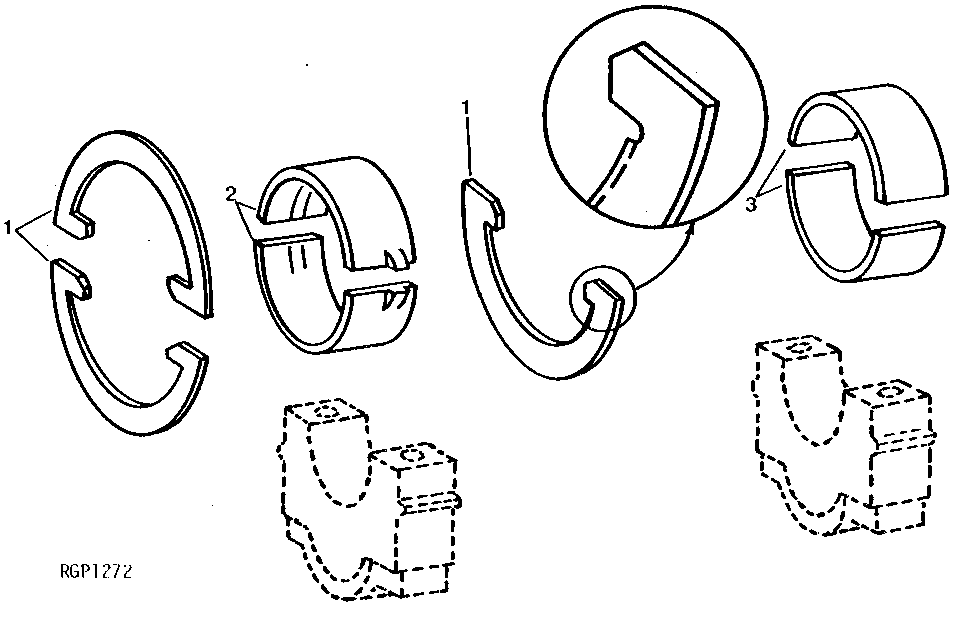

Схема запчастей John Deere 90A - 2 - MAIN AND MAIN THRUST BEARINGS 401 - ENGINE 4

Артикул

Название

Примечание

Количество

1

AR89622

THRUST WASHER

STD (PKG.(3) R62910)

1шт.

AR89971

THRUST WASHER

0.18 MM (.007") OS FLANGE (PKG. (2) R69040 AND R62910)

1шт.

2

AR101398

THRUST BEARING

STD (PKG R66339 AND R66340 OR R75146 AND R75147) (SUB AR101269)

1шт.

AR101269

THRUST BEARING

STD (PKG. R74669 AND R74670) (SUB FOR AR101398)

1шт.

AR104125

THRUST BEARING

0.05 MM (.002") US, (PKG. R69032 AND R69033, R75157 AND R75158 OR R76641 AND R76642) (SUB FOR AR101399)

1шт.

AR104126

THRUST BEARING

0.25 MM (.010") US, (PKG. R69034 AND R69035, R75159 AND R75160 OR R76643 AND R76644) (SUB FOR AR101400)

1шт.

AR104127

THRUST BEARING

0.50 MM (.020") US, (PKG. R69036 AND R69037, R75161 AND R75162 OR R76645 AND R76646) (SUB FOR AR101401)

1шт.

AR104128

THRUST BEARING

0.75 MM (.030") US, (PKG. R69038 AND R69039, R75163 AND R75164 OR R76647 AND R76648) (SUB FOR AR101402)

1шт.

3

AR101268

BEARING

STD (PKG. R74667 AND R74668) (SUB FOR AR101393)

ARшт.

AR104121

BEARING

0.05 MM (.002") US, (PKG. R52529 AND R60183 OR R75149 AND R75150 OR R76633 AND R76634) (SUB FOR AR73014)

ARшт.

AR104122

BEARING

0.25 MM (.010") US, (PKG. R52530 AND R60184, R75151 AND R75152 OR R76635 AND R76636) (SUB FOR AR73015)

ARшт.

AR104123

BEARING

0.50 MM (.020") US, (PKG. R52531 AND R60185, R75153 AND R75154 OR R76637 AND R76638) (SUB FOR AR73016)

ARшт.

AR104124

BEARING

0.75 MM (.030") US, (PKG. R52532 AND R60186, R75155 AND R75156 OR R76639 AND R76640) (SUB FOR AR73017)

ARшт.

Выбрано товаров: 13
